Name: Speedybee Master 5 FPV Frame Kit
Brand: Speedy Bee
SKU: RUN-SB-MASTER5-HD-Y-O3170
Price: 89.90 EUR
Availability: InStock

Speedybee Master 5 FPV Frame Kit

Description du produit

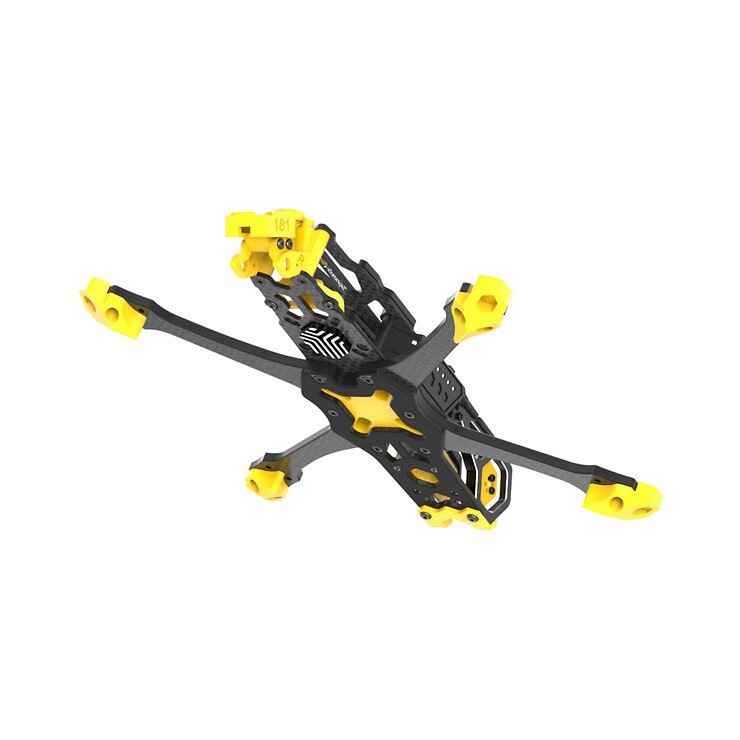

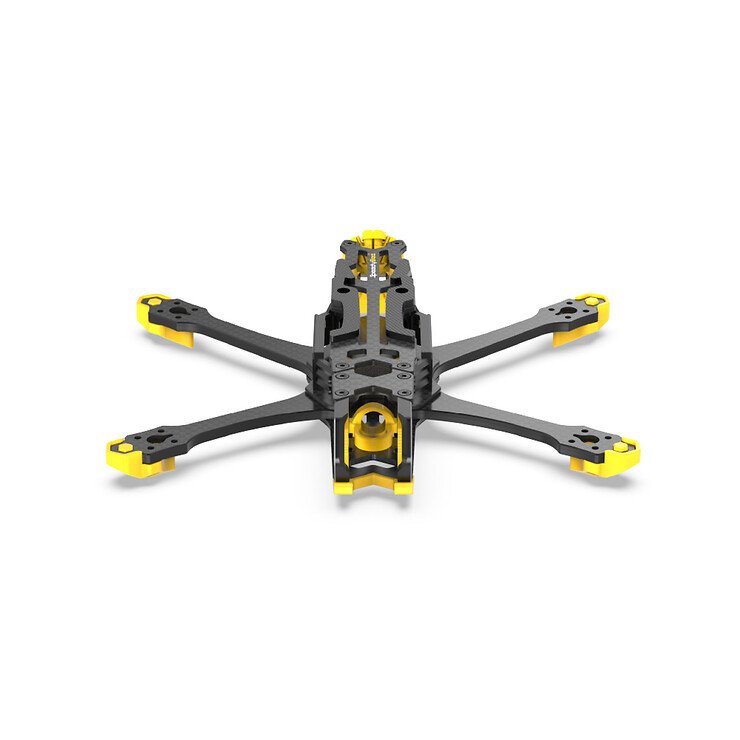

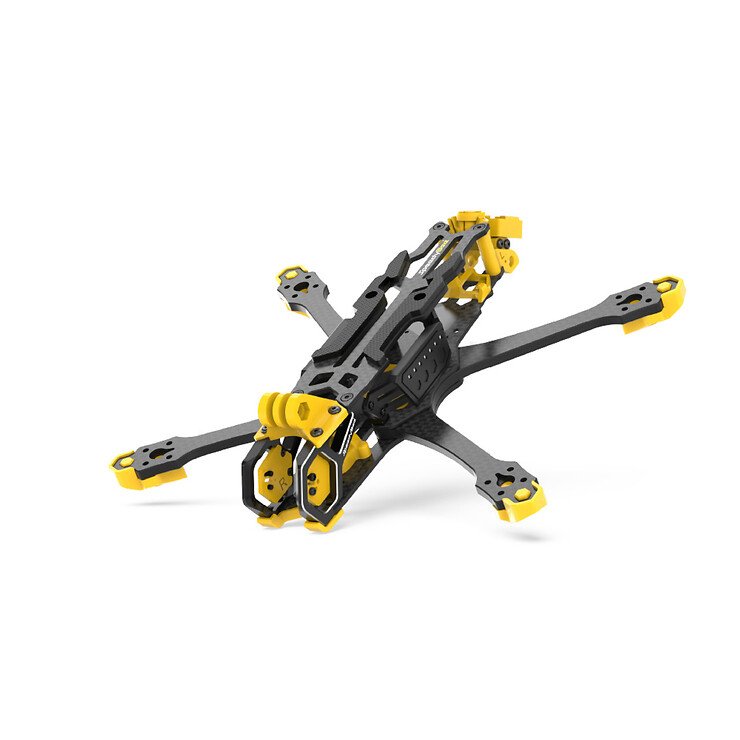

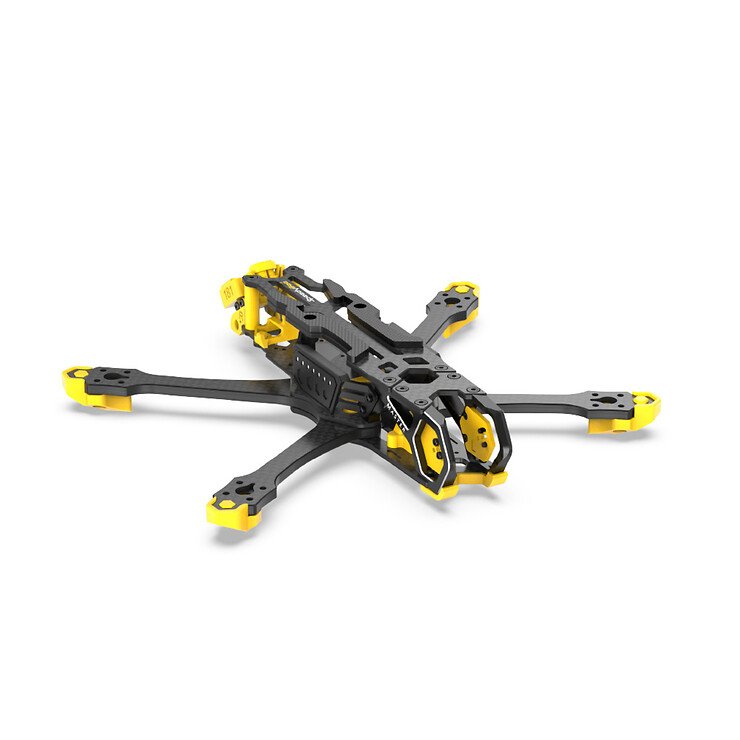

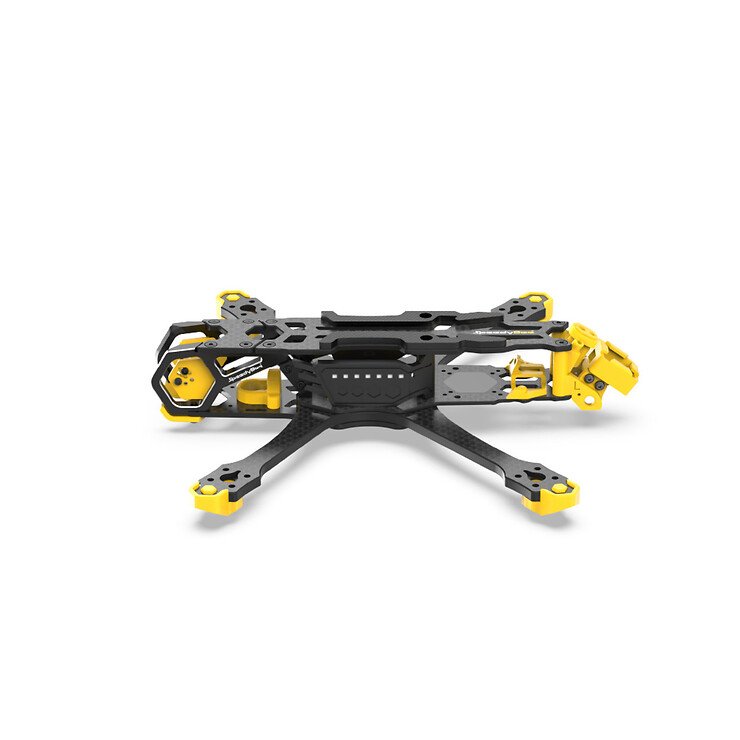

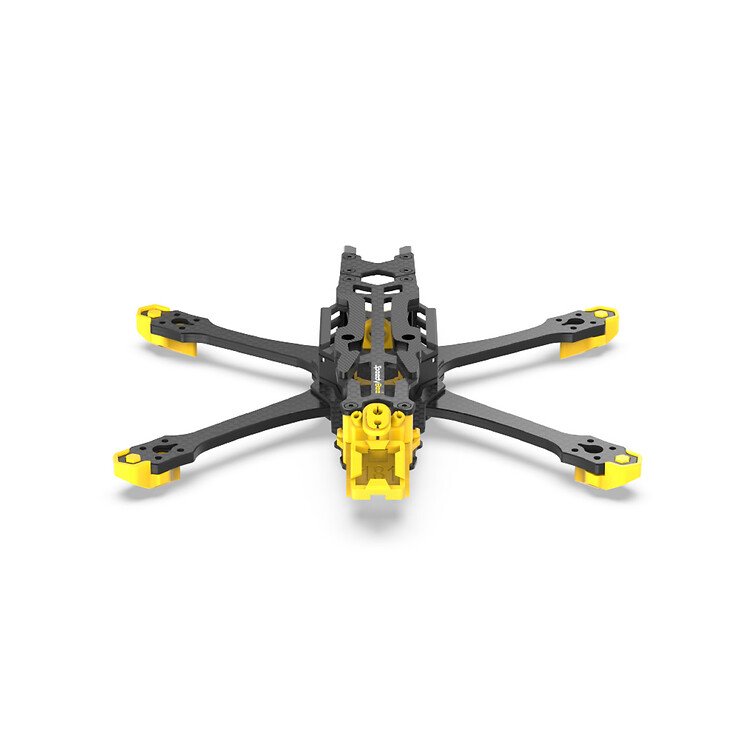

Speedybee Master 5 FPV Frame Kit

Le Master 5 HD de SpeedyBee a une large géométrie en X et se monte en 20*20mm et 30,5*30,5mm.

Ce cadre est compatible avec le système DJI O3 HD.

Caractéristiques

Conçu pour le freestyle
Montage facile
Large champ de vision
Plaque latérale de caméra amovible
Compatible avec DJI O3

Spécifications

Empattement : 225mm
Poids : ~143g (sans TPU)
Epaisseur haut/bas : 2.5mm
Epaisseur de la plaque centrale : 2mm
Épaisseur du bras : 5mm
Largeur de la caméra : 19-20mm
Trou de fixation du moteur : 16*16mm Ø8mm
Supports appropriés : 5-5.1"
Trou de montage FC : 30,5*30,5mm (M3) / 20*20mm (M3)
Trou de montage VTX : 30,5*30,5 mm (M3) / 20*20 mm (M2)
Matériau du support de la caméra : alliage d'aluminium 7075
Taille de la base du GPS : 20*22*6mm

Contenu

1x cadre Master 5 HD
1x kit de matériel
1x module d'installation DJI O3
1x câble 8pin 75mm
1x connecteur XT60E1-M

Bestellnummer	RUN-SB-MASTER5-HD-Y-O3170
EAN	4260691177979
Hersteller	Speedy Bee
