Holybro PX4 Pixhawk Mini PM06 V2 Aluminium Case UBLOX NEO M8N ohne GPS

Holybro PX4 Pixhawk Mini PM06 V2 Aluminium Case UBLOX NEO M8N ohne GPS

Produktbeschreibung

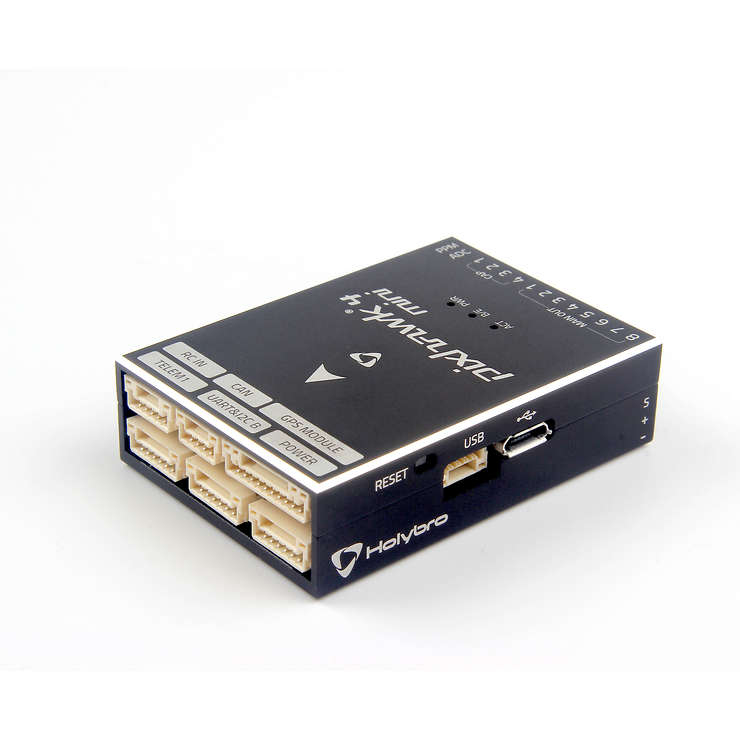

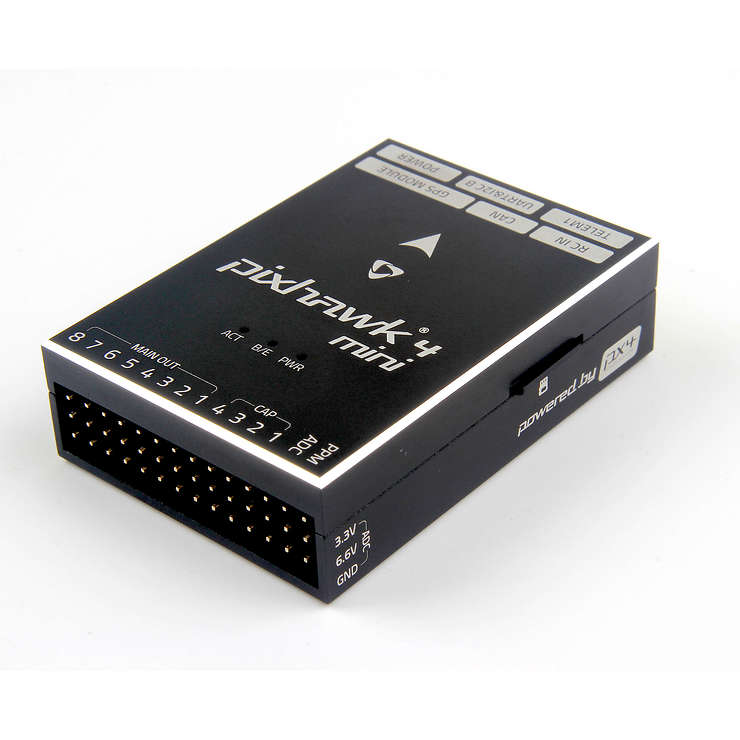

Holybro PX4 Pixhawk Mini PM06 V2 Aluminium Case UBLOX NEO M8N

The Pixhawk® 4 Mini autopilot is designed for engineers and hobbyists who are looking to tap into the power of Pixhawk 4 but are working with smaller drones. Pixhawk 4 Mini takes the FMU processor and memory resources from the Pixhawk 4 while eliminating interfaces that are normally unused. This allows the Pixhawk 4 Mini to be small enough to fit in a 250mm racer drone.

Pixhawk 4 Mini was designed and developed in collaboration with Holybro® and Auterion®. It is based on the Pixhawk FMUv5 design standard and is optimized to run PX4 flight control software.
Pixhawk4 mini firmware version：1.8.0 dev

Features

• Main FMU Processor: STM32F765
• 32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM
• On-board sensors:
• Accel/Gyro: ICM-20689
• Accel/Gyro: BMI055
• Magnetometer: IST8310
• Barometer: MS5611
• GPS: ublox Neo-M8N GPS/GLONASS receiver; integrated magnetometer IST8310
• Interfaces:
• 8 PWM outputs
• 4 dedicated PWM/Capture inputs on FMU
• Dedicated R/C input for CPPM
• Dedicated R/C input for Spektrum / DSM and S.Bus with analog / PWM RSSI input
• 3 general purpose serial ports
• 2 I2C ports
• 3 SPI buses
• 1 CANBuses for CAN ESC
• Analog inputs for voltage / current of battery
• 2 additional analog input
• Power System:
• Power Brick Input: 4.75~5.5V
• USB Power Input: 4.75~5.25V
• Servo Rail Input: 0~24V
• Max current sensing: 120A
• Weight and Dimensions:
• Dimensions: 38x55x15.5mm
• Other Characteristics:
• Operating temperature: -40 ~ 85°c
