Matek Systems Flight Controller F405-Wing

Nr.: MAT-F405-WING

 Sofort lieferbar - Lieferzeit 1-2 Tage - Mehr als 5 verfügbar

49,79 €
inkl. MwSt. zzgl. Versand


Produktdetails zu Matek Systems Flight Controller F405-Wing

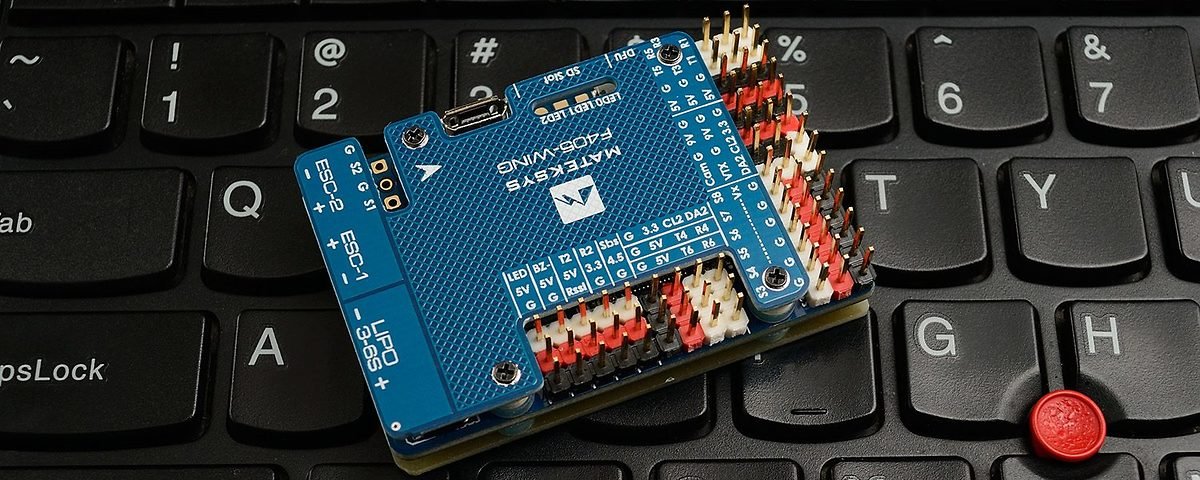

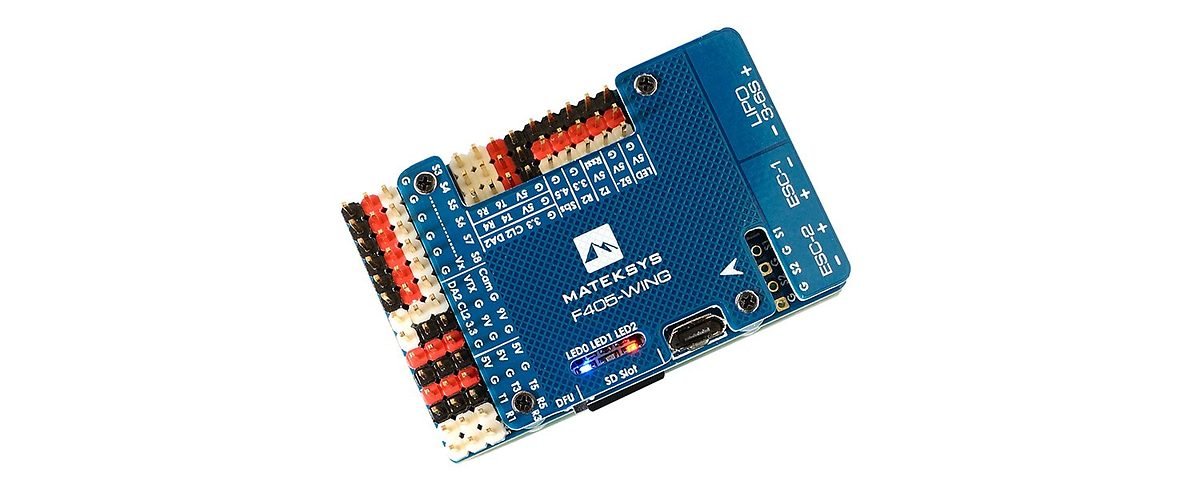

Matek Systems Flight Controller F405-Wing

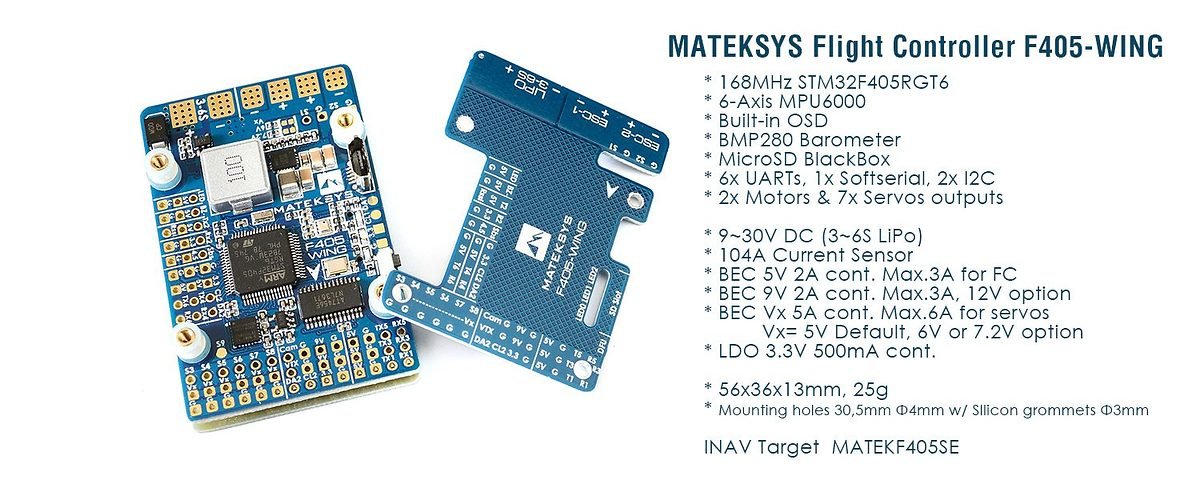

FC Specifications

  • MCU: 168MHz STM32F405
  • IMU: MPU6000 accelerometer/gyro (SPI)
  • Baro: BMP280 (I2C)
  • OSD: INAV OSD w/ AT7456E chip
  • Blackbox: MicroSD card slot (SD/SDHC)
  • VCP & 6x UARTs
  • 2x Motors, 7x Servos outputs
  • 2x I2C
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • Built in inverter for SBUS input (UART2-RX)
  • PPM/UART Shared: UART2-RX
  • SoftSerial on TX2 pad
  • Battery Voltage Sensor: 1:10 (Scale 1100)
  • WS2812 Led Strip : Yes
  • Beeper : Yes
  • RSSI: Yes
  • FC Firmware
  • INAV Flight
  • Target: MATEKF405SE
  • PDB
  • Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
  • 2x ESC power pads
  • Current Senor: 104A, 3.3V ADC, Scale 317
  • BEC 5V output

Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed

  • Continuous current: 2 Amps, Max.3A
  • BEC 9V /12V output

Designed for Video Transmitter, Camera, Gimbal ect.

  • Continuous current: 2 Amps, Max.3A
  • 12V option with Jumper pad
  • BEC Vx output

Designed for Servos

  • Voltage adjustable, 5V Default, 6V or 7.2V via jumper
  • Continuous current: 5 Amps, Max.6A
  • Output Ripple: 50mV (VIn=24V, VOut=5V@5A load)
  • BEC 3.3V output

Designed for Baro / Compass module and Spektrum RX

  • Linear Regulator
  • Continuous current: 500mA
  • Physical

Size

  • Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
  • Dimensions: 56 x 36 x 13 mm
  • Weight: 25g

Bestellnummer: MAT-F405-WING
EAN: 4260449983760
