Matek RGB LED WS2812B mit MCU
Matek RGB 8 LED WS2812B 7-Colors Board With MCU For FPV Multicopter
Working voltage range: 4.5~5.2V DC
Power of MCU mode (5V IN): White: 1.8W /0.36A
Green/Red/Blue: 0.6W/0.12A
Yellow/Cyan/Magenta: 1.2W/0.24A

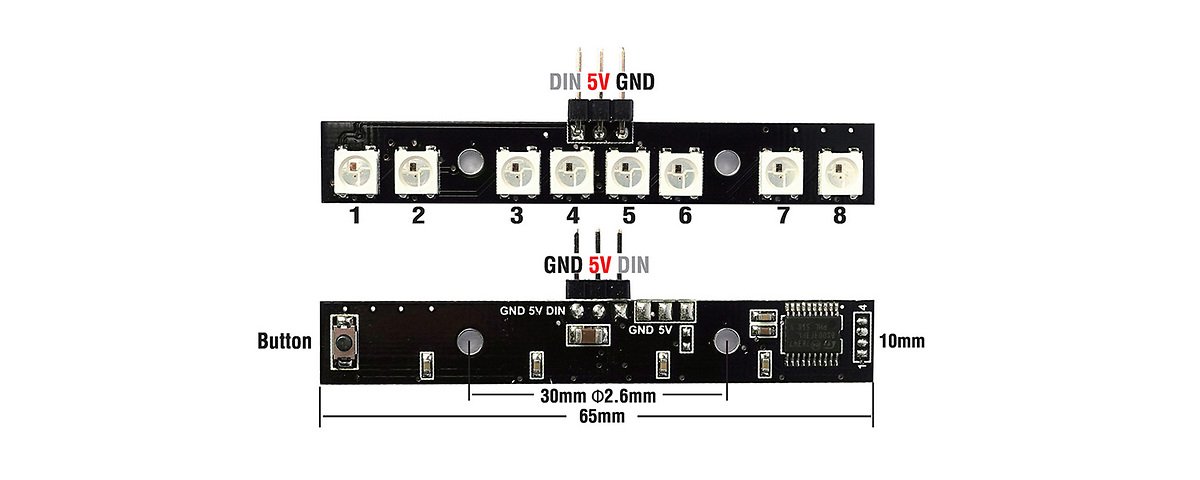

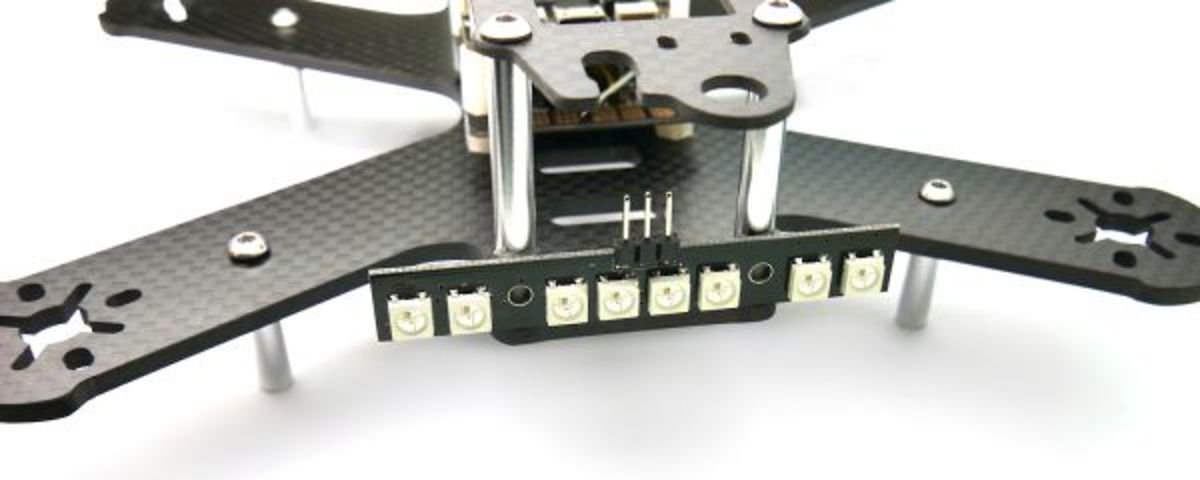

Mounting: 30mm, Φ2.6mm
Size: 65x10mm

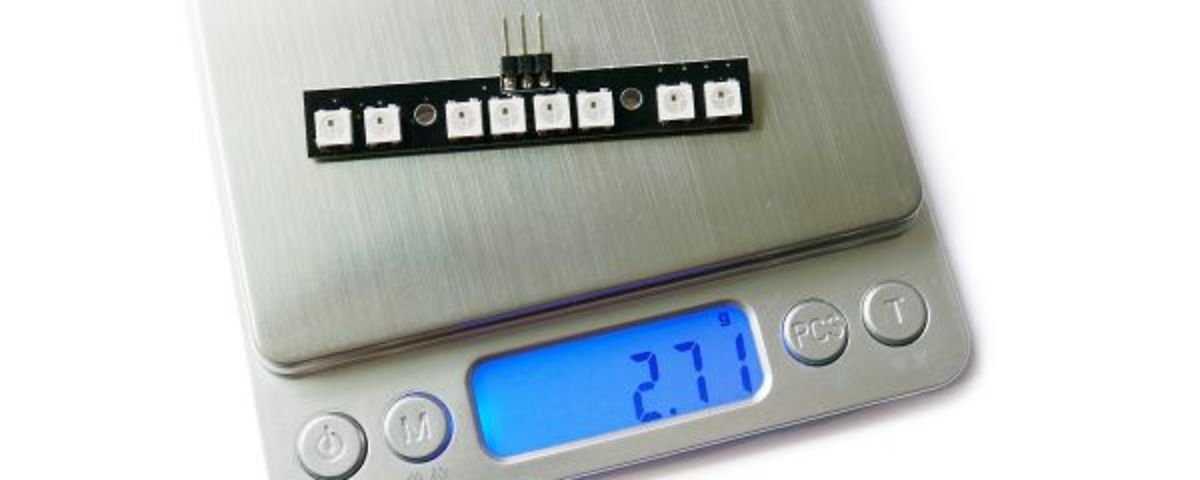

Weight: 3g
Features:

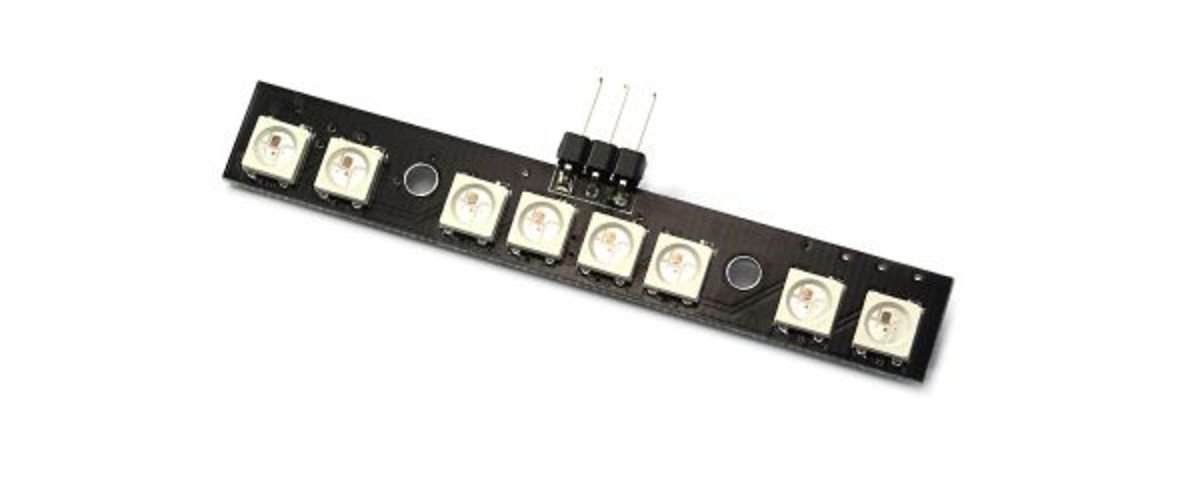

Built-in 8pcs RGB LED WS2812B & 1pc MCU
Dual modes: MCU control & Cleanflight control

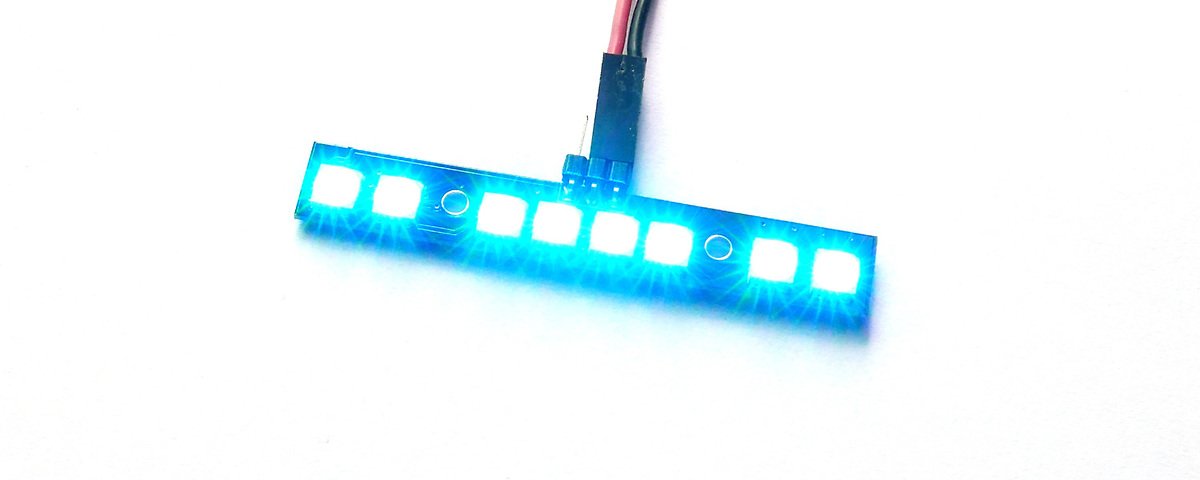

MCU mode: 7 colors (White, Green, Red, Blue, Yellow, Cyan, Magenta)
4 status (Constant light, Slow flash, Fast flash, Voilent flash)
CF mode: support CC3D, Naze32, SPRacingF3, etc. with CleanFlight firmware

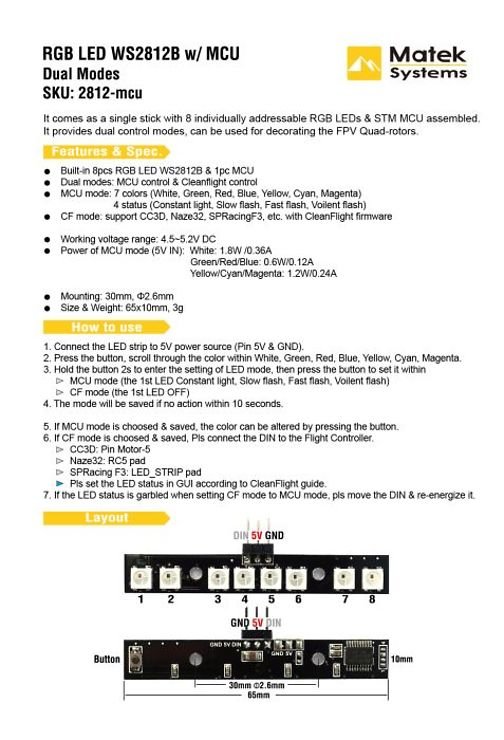

How to use:
1. Connect the LED strip to 5V power source (Pin 5V & GND).
2. Press the button, scroll through the color within White, Green, Red, Blue, Yellow, Cyan, Magenta.
3. Hold the button 2s to enter the setting of LED mode, then press the button to set it within
MCU mode (the 1st LED Constant light, Slow flash, Fast flash, Voilent flash)
CF mode (the 1st LED OFF)
4. The mode will be saved if no action within 5 seconds.
5. If MCU mode is choosed & saved, the color can be altered by pressing the button.
6. If CF mode is choosed & saved, Pls connect the DIN to the Flight Controller.
CC3D: Pin Motor-5
Naze32: RC5 pad
SPRacing F3: LED_STRIP pad
Please set the LED status in GUI according to CleanFlight guide
| Bestellnummer | MAT-2812-mcu |
|---|---|
| EAN | 4260449971941 |
| Hersteller | Matek Systems |
| Produktsicherheit | Hersteller: Kunming Jingwei Technology Co., Ltd No.18, Sijiaying, Panlong, Kunming, Yunnan, 650000 China E-Mail: service@mateksys.com Verantwortliche Person: meilon GmbH Konrad Zuse Ring 31 53424 Remagen Deutschland E-Mail: support@meilon.de Tel.: +49 (0)2642 / 40 52 88 0 |
