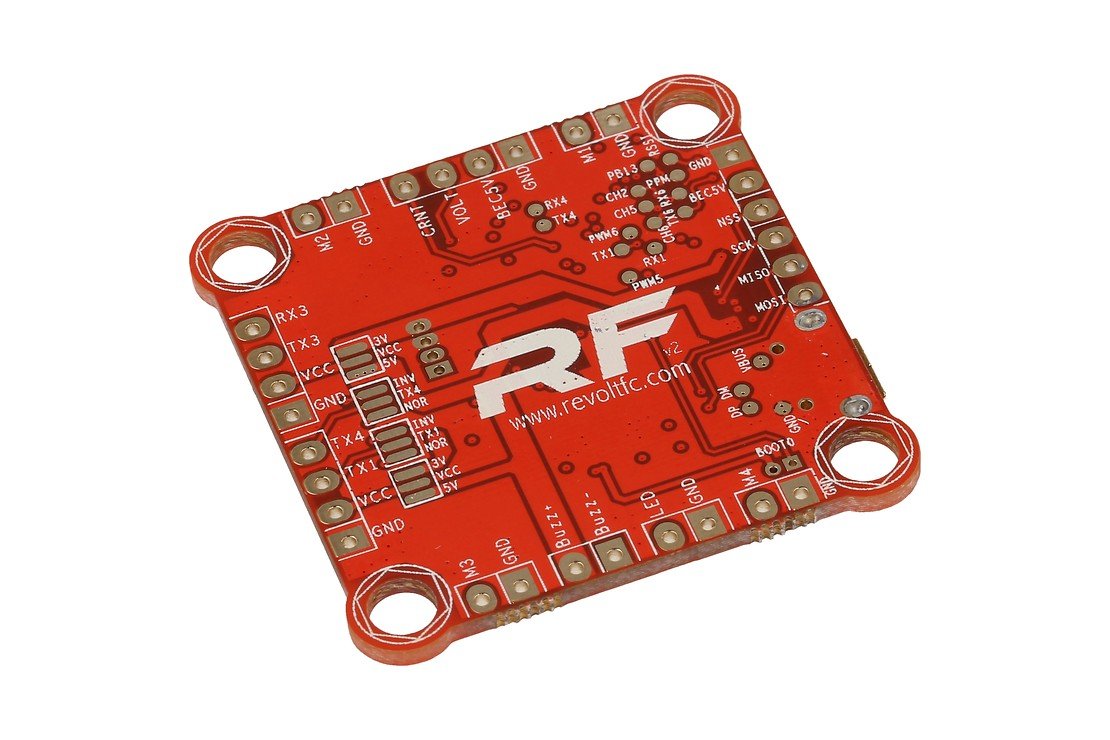

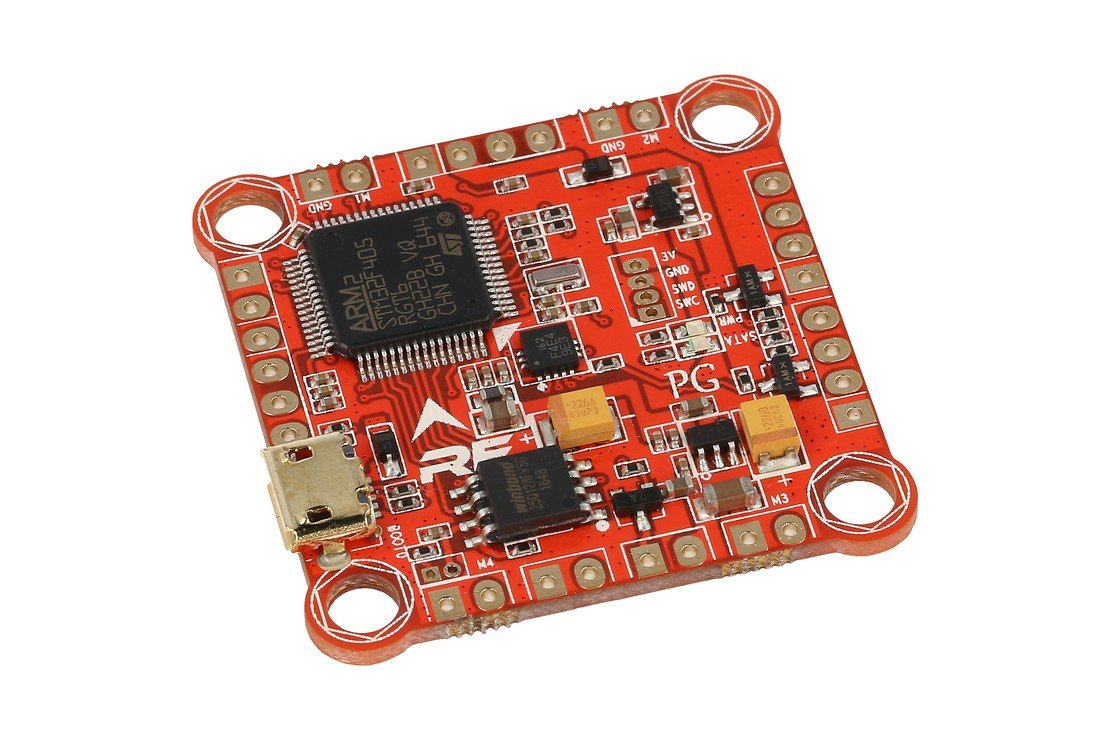

Raceflight REVOLT FC Flight Controller V2
Wir führen die neue 2017er V2 Version!

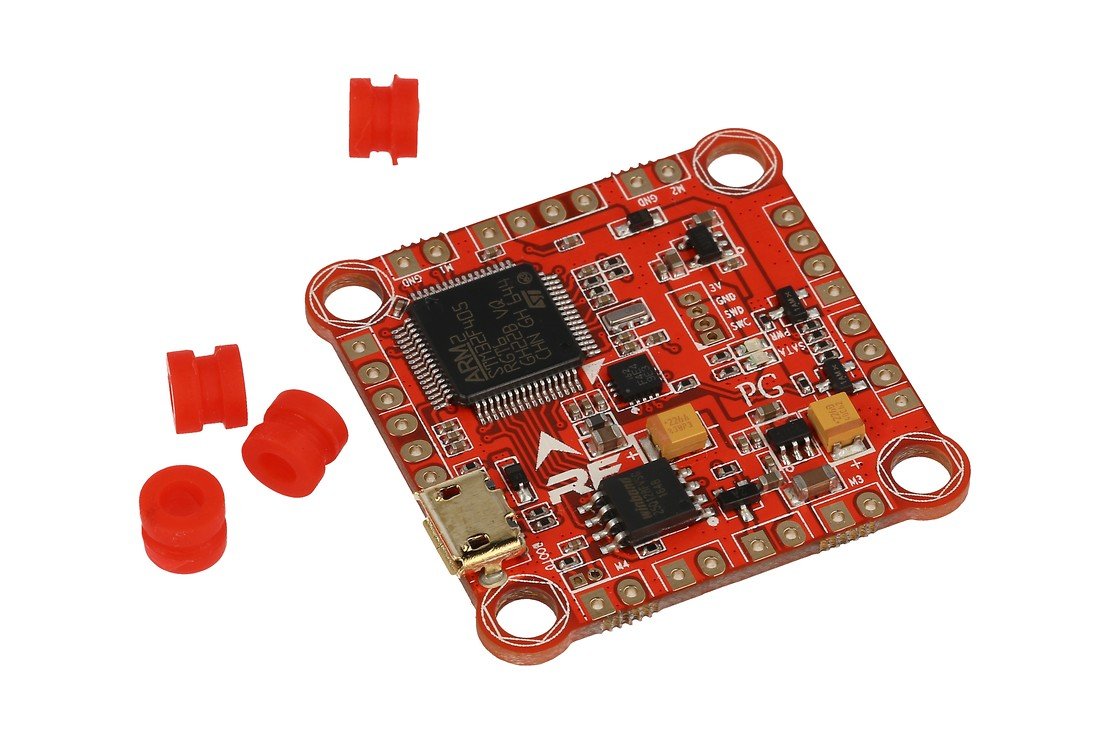

Integrated vibration dampening dummies
Dual inverters for Taranis and Futaba radios
True hardware radio diversity
Selectable voltage for your UARTs
LED Driver for WS2812b programmable LED
Infrared LED Race Transponder support – just solder an infared LED to the Revolt and set it up in the RF1 configurator
Future iPhone and Android configurator support
High Speed 32khz gyro, lowest noise floor and highest sensitivity gyro ever used
Through hole solder pads – forms an I-Beam when soldered for extra strength
FrSky Taranis, Spektrum, Futaba, JR, IBus, Sbus and other radio support
Integrated buzzer driver
Voltage and current ADC pins, for full voltage and current monitoring
Full telemetry output support
ESC flashing and configuration built into configurator
Most active software development
Selectable 3.3v or 5v voltage
4 serial uarts
Bluetooth expandable
F4 processor
16mb of flash memory
GPS expandable
Dimensions: 36mm x 36mm
Mounting holes: 30.5mm squared to center of holes
| Bestellnummer | RFL-REVOLT-FC |
|---|---|
| EAN | 4260449975895 |
| Hersteller | Raceflight |
