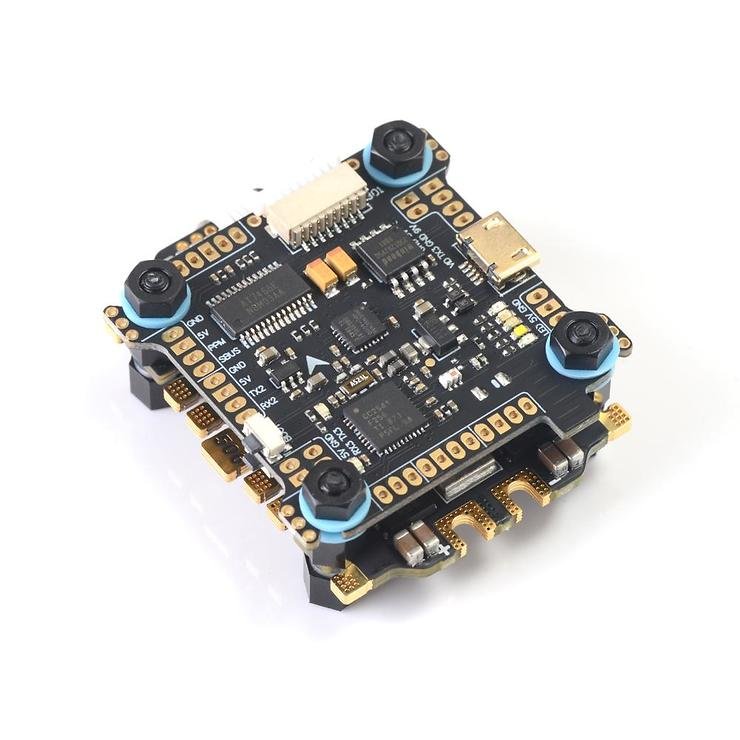

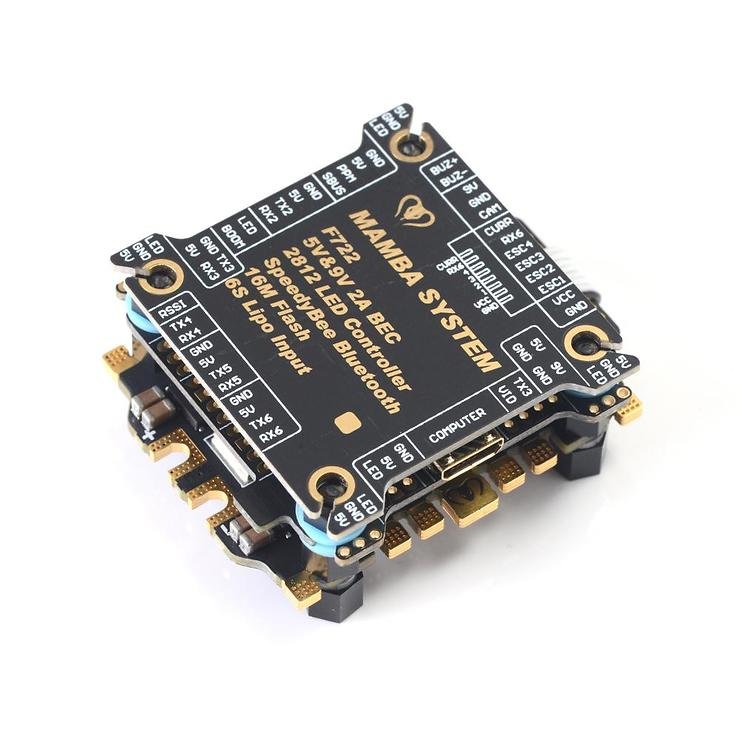

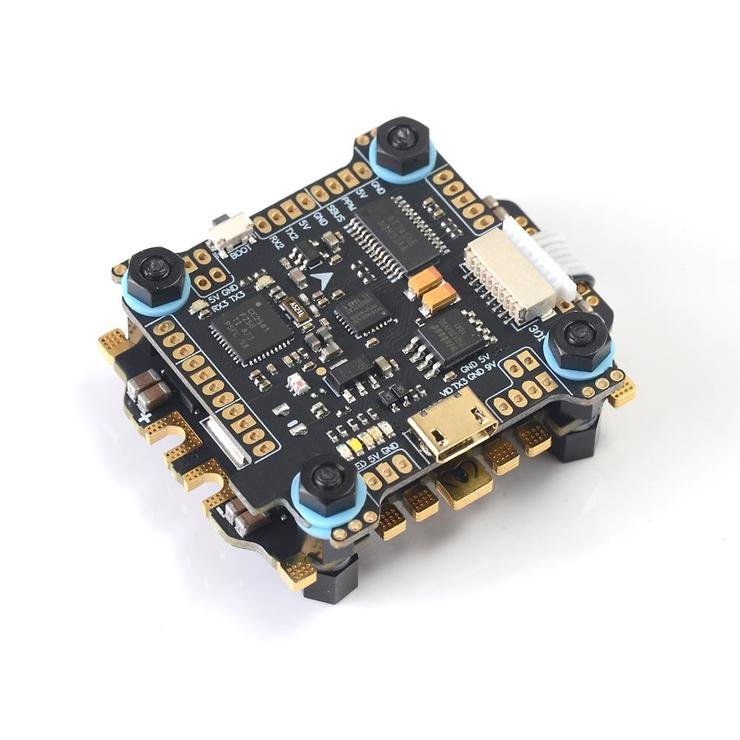

Diatone Mamba F722 Stack 3-6S FC und ESC
Note：Because STM32F722 heat large ， please leave at least 5mm interspace at both sides of the FC with nothing covered to make sure a good air circulation.
FC Specifications
MCU: 216MHz STM32F722RET6 32BIT
IMU: MPU6000
Baro: No
OSD: BF OSD
Blacbox: 16M Flash Memory
Uarts: 6Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: RX6

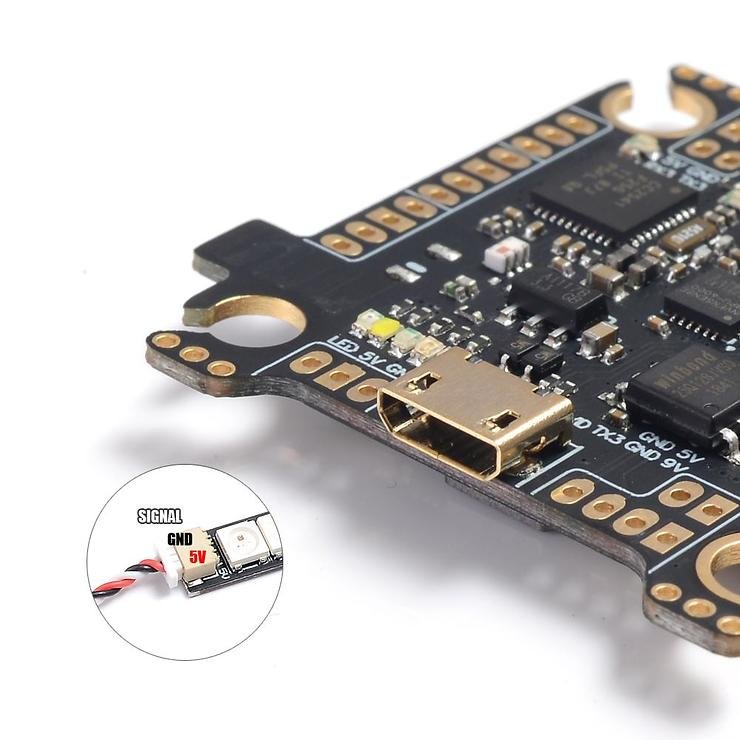

LED: Blue&Orange for FC Status,,Green 9V,White 5V,Red 3.3V

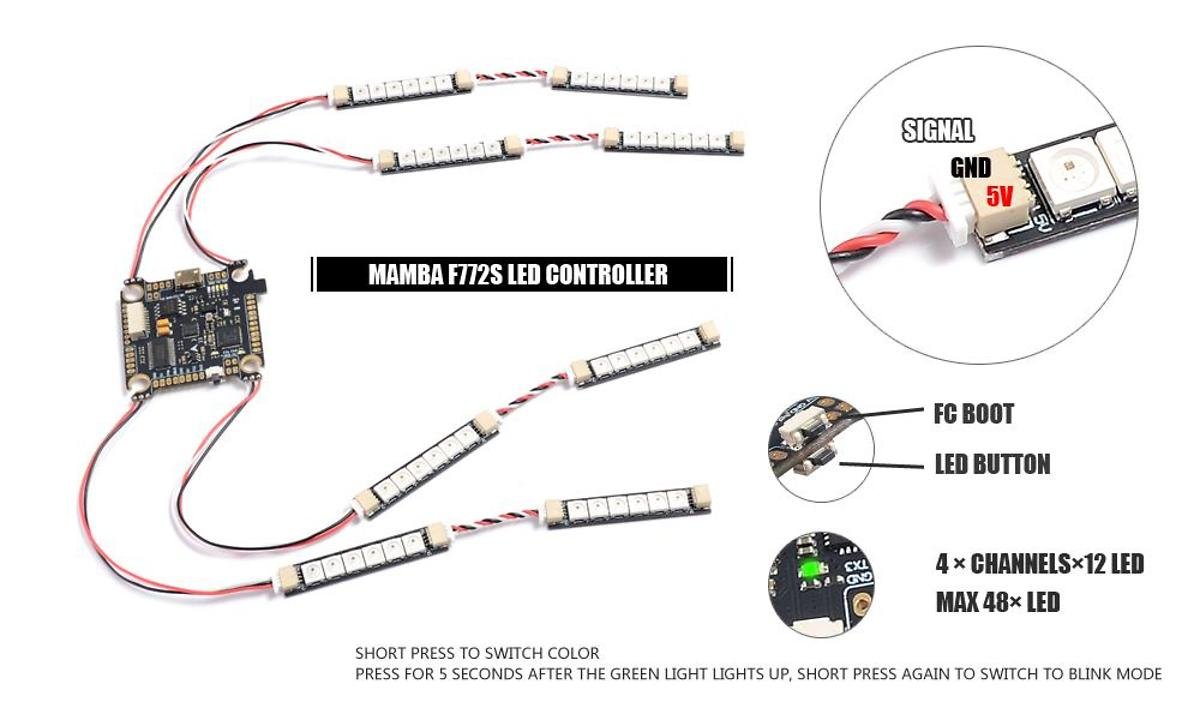

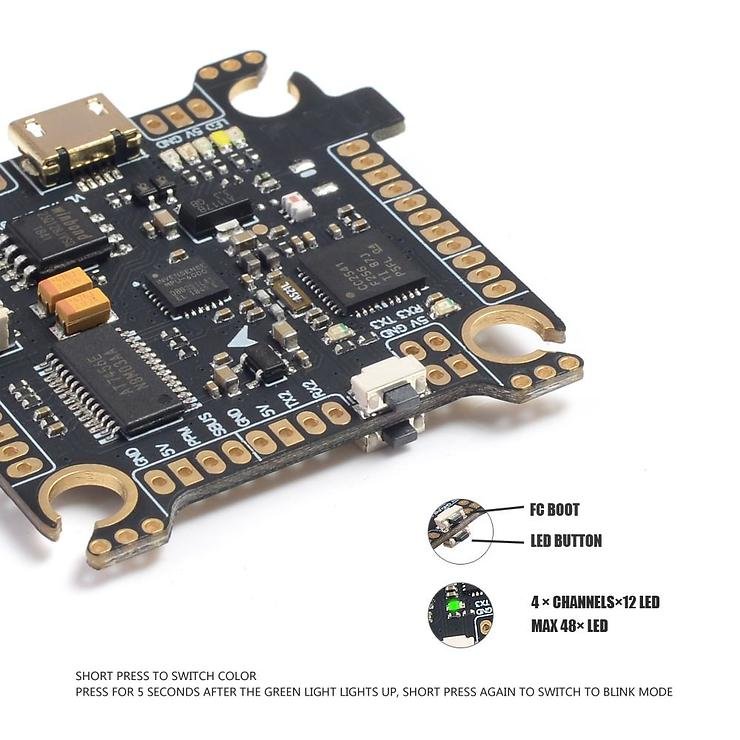

Controller: 4 Set 2812 LED
Bluetooth: SpeedyBee APP
Smartaudio: Yes
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25V)
VTS Protection: Yes
BEC: 5V 2A & 9V 2A (Max 3A)

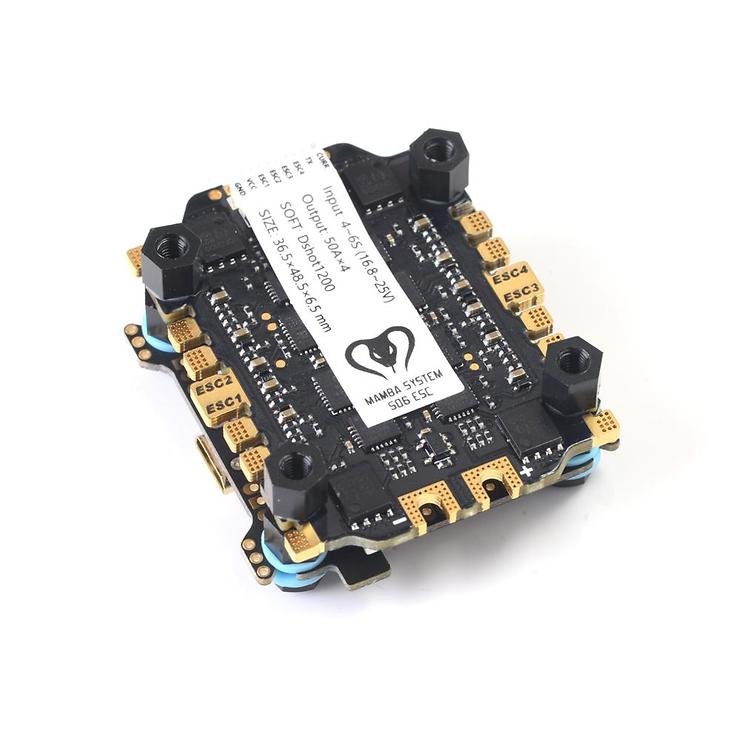

ESC Specifications
INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
CONTINUE CURRENT: 50A×4
BURST CURRENT: 55A (10S)
BEC: NO
SOFT: Dshot300/600/1200
MOUNTING: 30.5mm/M3
Supply : Panasonic High Frequency 470uF/35V
FC Firmware
BetaFlight
Target: MAMBA F722
Mounting: 30.5×30.5mm,Φ3
Dimensions:
Weight: 22g
