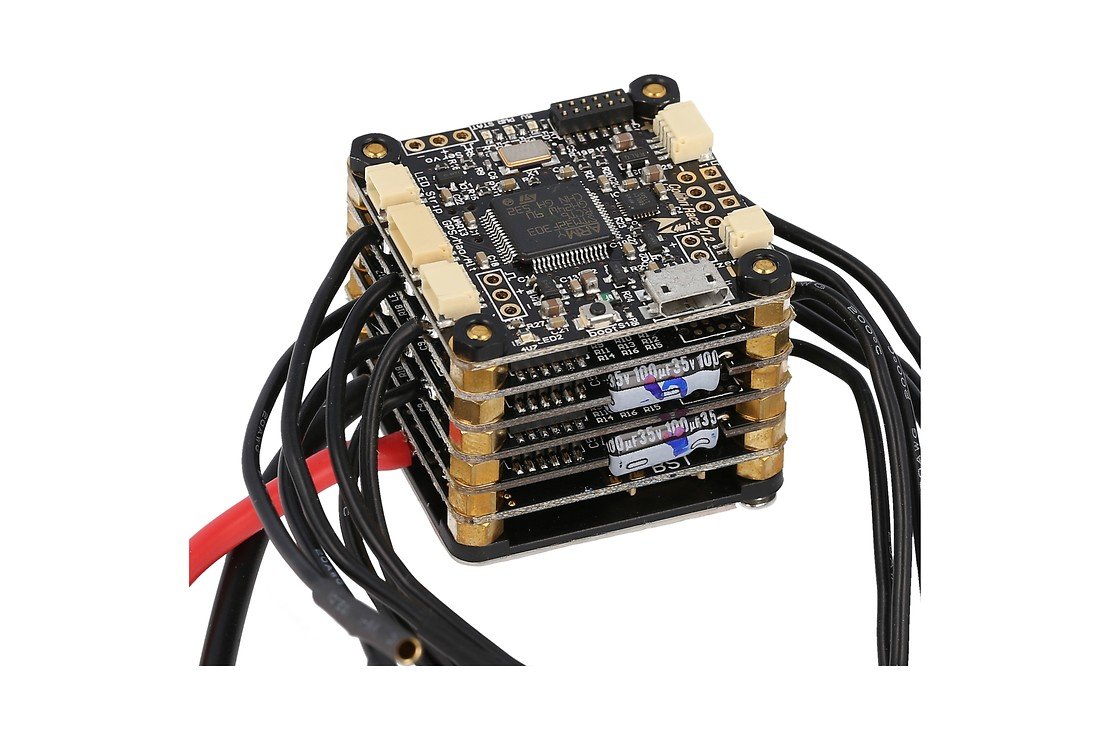

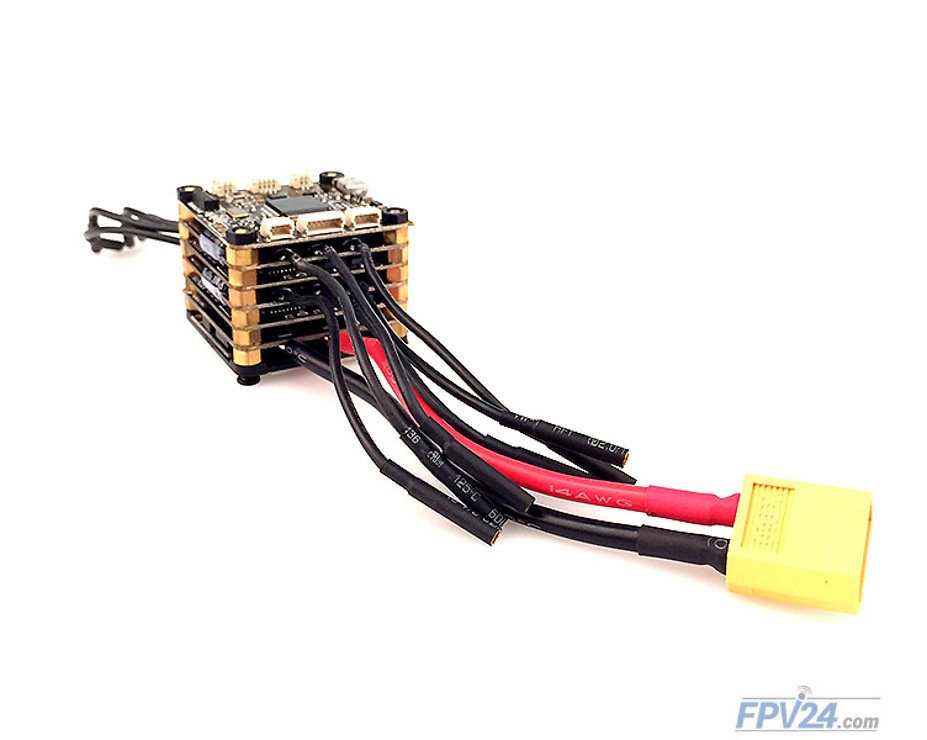

TBS PowerCube - Multirotor Flightcontroller + ESC Stack

38% sparen
Der Artikel ist nicht mehr erhältlich.
  • 89,90 € *
  • 145,00 €

TBS PowerCube - Multirotor Flightcontroller + ESC Stack

Produktbeschreibung

Stacked compact, a all-in-one power package for your fpv racer between 180 and 330 size. 6S capable, 20A continuous, 45A burst ESCs provide ample juice. The Colibri RACE is a F3 based flight controller with enough processing power and memory to achieve low looptimes. The ESCs are TBS designs based on our BULLETPROOF technology, developed in close cooperation with the all-time master of ESC firmwares, SimonK.

The TBS POWERCUBE combines knowledge and experience from over 2 years of research. It is the new standard for performance, reliability, ease-of use and cost in race machines. Main highlights include

  • All-in-one, solder-free system for race quads. Comes with - or plugs into - everything you need.
  • Optimized for centralized weight distribution
  • STM32F3-based FC, faster and more memory
  • Most reliable ESC in the industry
  • SimonK custom firmware with unheard of throttle range, braking speed and AutoShot (OneShot auto-detect)
  • Patent-pending power distribution
  • Clean, filtered power for fpv camera and video transmitter, selectable between 5V/12V and VBatt.

The OSD for all Tasks!

Available separately is the TBS CORE PRO module. It plugs into the BST port on the PowerCube and from there it takes control of everything. You can fully configure your flight control with your remote control, tune your multi rotor without the need for a laptop. And during the flight, you're beeing kept up to date with everything that's going on in- and around your multi rotor.

New features such as artificial horizon, accurate current and voltage sensing, battery and R/C link health (RSSI) and navigational help (GPS required, sold separately) are all part of the bundle.

Technical Specifications:

  • STM32 F3 Flight controller running Betaflight
  • Regulated and filtered power for Cam and VTx (5V/12V/VBatt switchable)
  • 20A continuous, 30A with airflow, 50A peak ESC (each)
  • 2-6S capable
  • Power distribution: 120A continuous
  • Current Sensor: 100A sense, 250A peak throughput
  • Dimensions: 36mm x 36mm x 30mm
  • Weight: 70g incl. PDB, wires & connectors

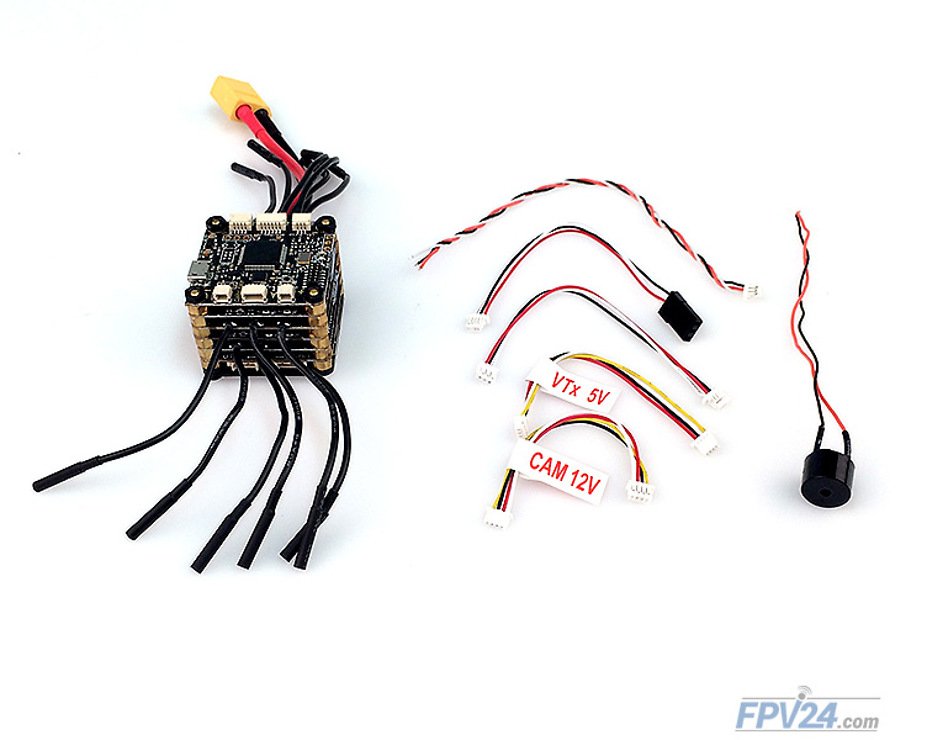

Package contents:

  • TBS POWERCUBE stack with Flight Control, 4x ESCs, PDB
  • Terminating plastic shoe to isolate the TBS PowerCube from carbon fiber frames

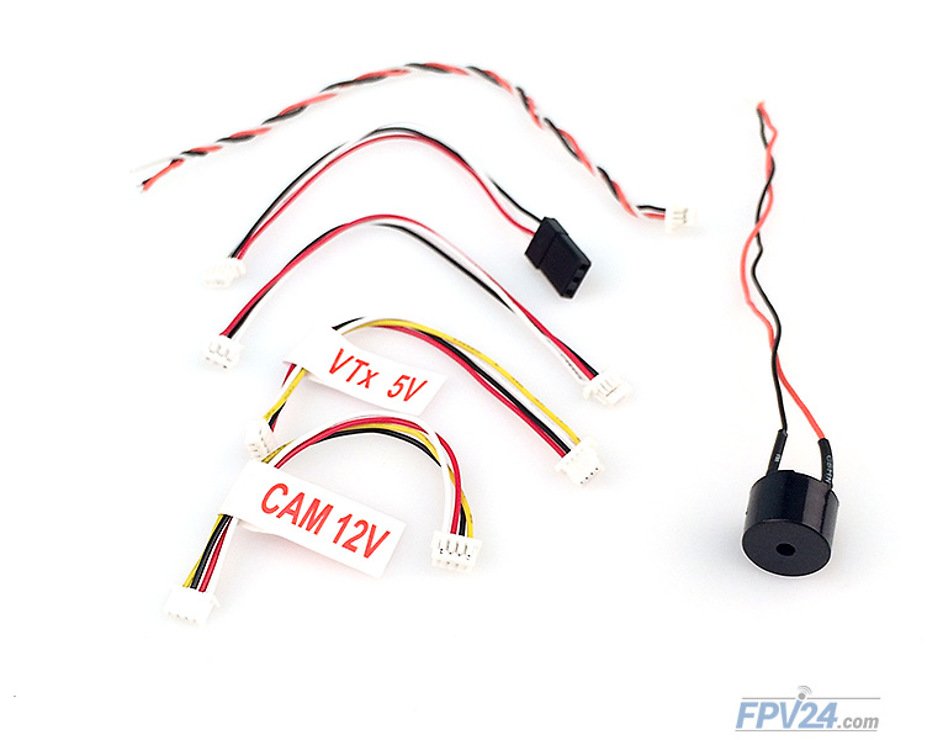

  • Cables for FPV Camera and video transmitter
  • External 5V Buzzer
  • LED pigtail cable
Bestellnummer TBS-CUBE
EAN 0741587427735
Hersteller Team Blacksheep

5 Kundenmeinungen

4.60
Dec 2015

poletti

very fine design very light BUT very very vibrations sensitive more than other naze32 FLight controller!!! In fact all is fine except Colibri flight controller board and it is NOT possible to change the flight board I resent this order

Feb 2016

Tobias J.

Mega cooles Teil, kein Löten von Nöten, einfach Bauelemente (Motoren, LED's, Buzzer, Cam etc.) anstecken, konfigurieren, fertig! Platz sparend alles schön zentriert in der Mitte!!! Top

Feb 2016

Marco Magalhães

I bought this recently. Easy configuration with Cleanflight Crash multiple times, fall from 6 meters after colision with a post. Shaft from motor bend, this Still Alive. Very happy with this product.

Mar 2016

TomK1

Der Cube funktioniert einwandfrei. Versand und Kontakt 1a kann ich nur empfehlen.

Jun 2016

Rudi

Ich wollte nen sauber aufgebauten Racer ohne ESC's auf den Armen & dafür ist der PowerCube einfach klasse. Mittels PNPproRace & UnifyPro zum super FPV-Komplettsystem mit OSD ausbaubar.
