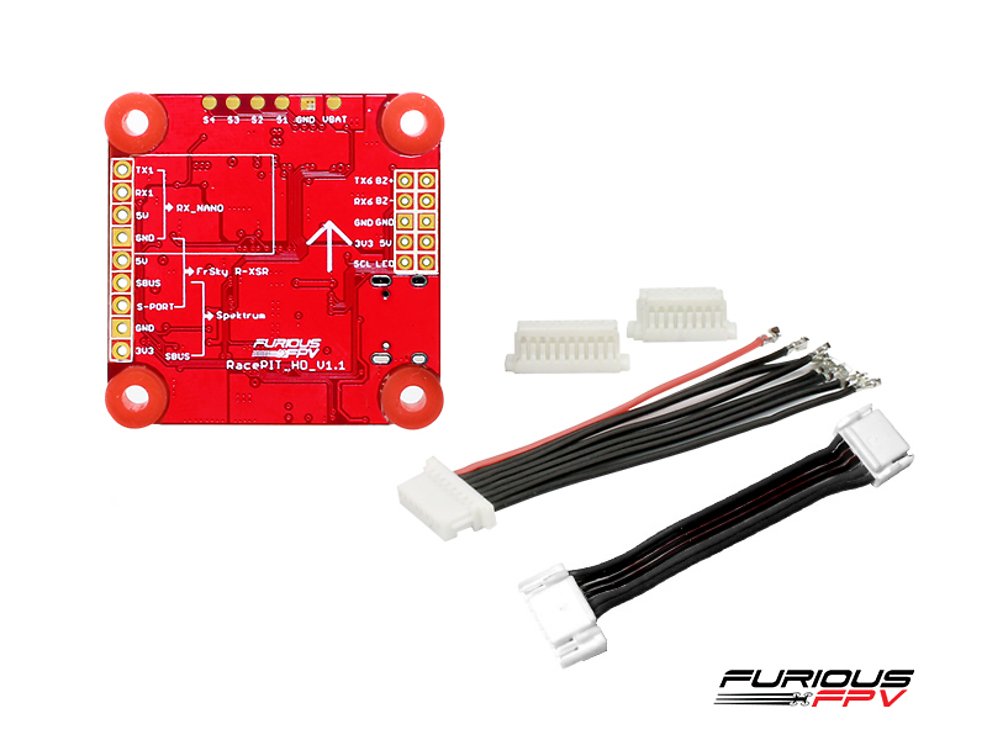

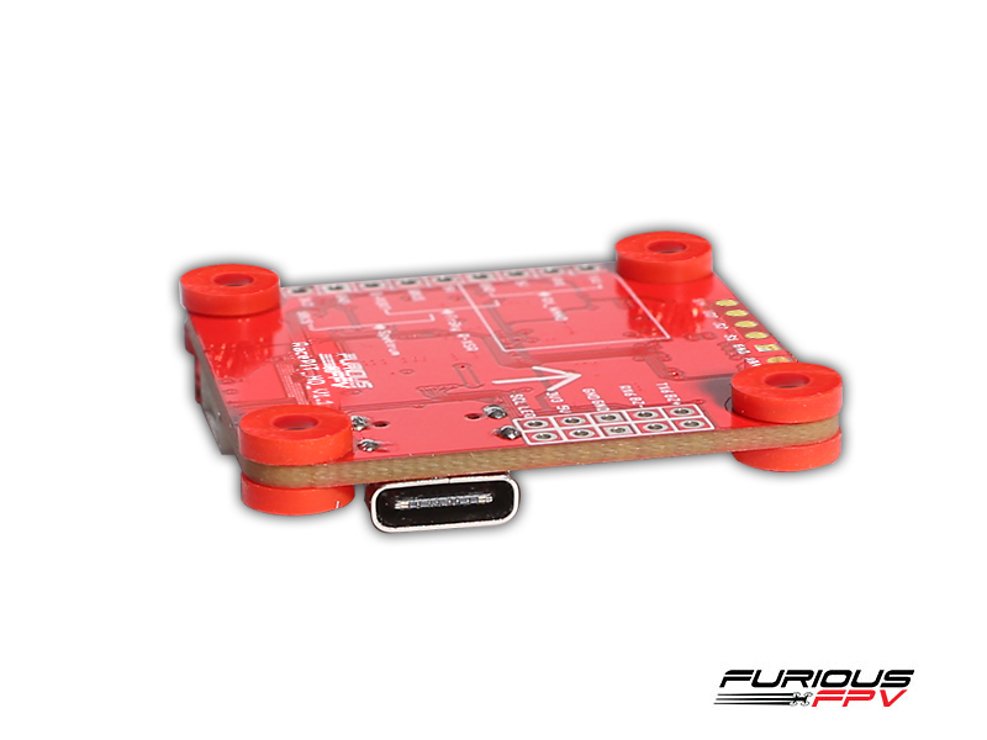

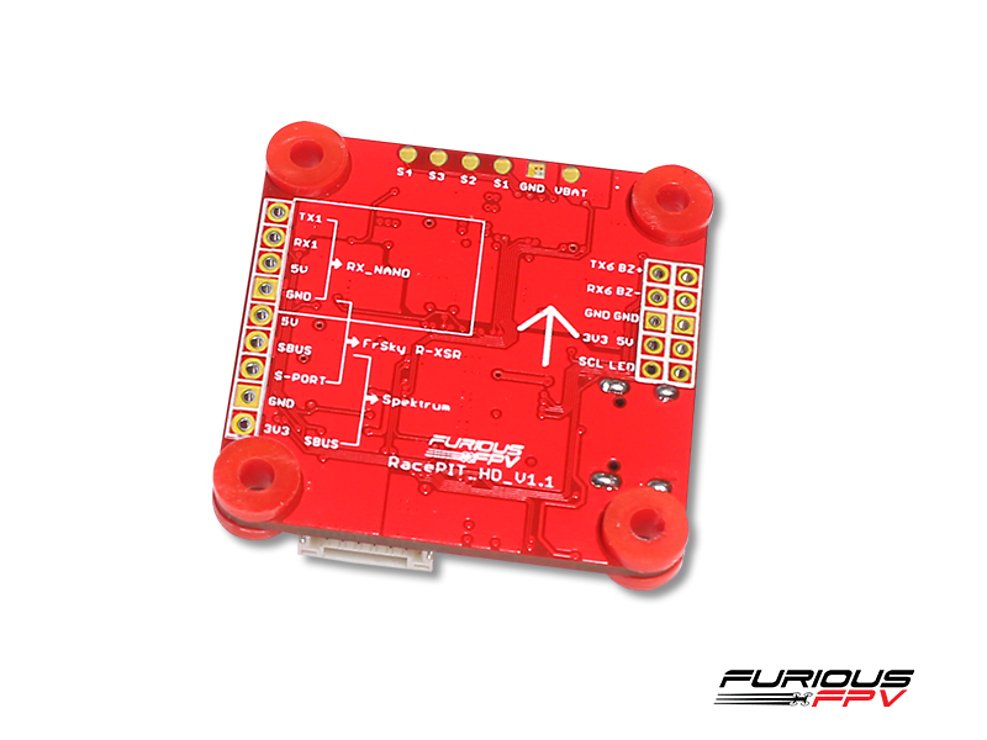

FuriousFPV RACEPIT HD Flight Controller
FuriousFPV RACEPIT HD Flight Controller
New flight controller in town, capable of running the DJI Air Unit or the Caddx Vista HD system. Plug and play solution, no need to solder the Air Unit harness to the flight controller board. Support multiple UARTs, clean BEC, ports for 4 in 1 esc and a type C usb, how cool is that?
Specifications
STM32F405 Main chip
MPU6000 Gyro
Built in commector for 4 in 1 ESC plus soldering option
Power switch for DJI VTx
USB Type C
8V 2A for DJI VTx
6 Uarts for connecting VTx DJI, GPS, CRSF Rx, Bluetooth etc at the same time.
High End 5V 2A BEC with 2-6S
Built-in inverter for S-BUS and S.Port
Integrated silicone damper for maximum FC functionality
| Order number | FUR-FPV-RACEPIT-HD |
|---|---|
| EAN | 8936037004280 |
| Manufacturer | Furious FPV |
