Axisflying C206 2006 6S 2750KV FPV motor

Axisflying C206 2006 6S 2750KV FPV motor

Product description

The Axisflying FPV Brushless Motor C206 2006 has been specially developed for 3.5 inch Cinewhoop and Cinematic Drones. This C-series motor was developed for FPV pilots who want to make high-quality cinematic recordings. With a perfect balance of smoothness, responsiveness and high torque, the C206 motor offers precise control and high efficiency to maximize flight time.

Highlights

• Specially designed for 3.5 inch Cinewhoop and Cinematic Drones
• Ideal for use with GoPro10 or GoPro11
• Perfect balance of smooth running, responsiveness and high torque
• High efficiency for longer flight times
• Dust and waterproof bearings with IP53 rating

Specifications

• KV: 2750KV for 6S
• Configuration: 12N14P / N52H arc magnet
• Motor stator size: 2006

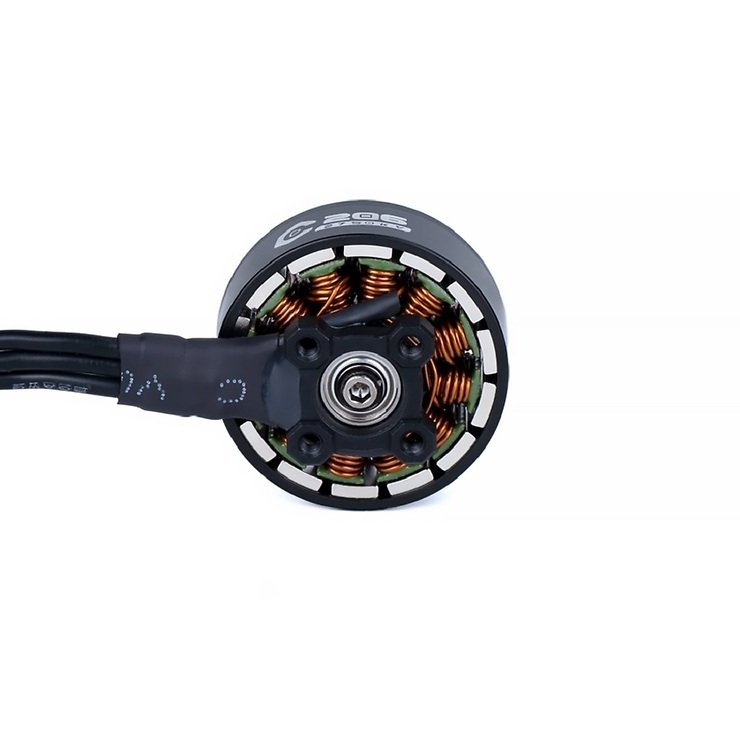

• Motor mounting hole size: 4*M2 (Φ12mm)
• Motor cable: AWG 20#, 150mm
• Motor dimensions (diameter * length): Φ24.6*20.6mm / T-Mount
• Weight (incl. 150mm cable): 22g
• Thrust force: over 0.9kg, max. current: approx. 21.5A
