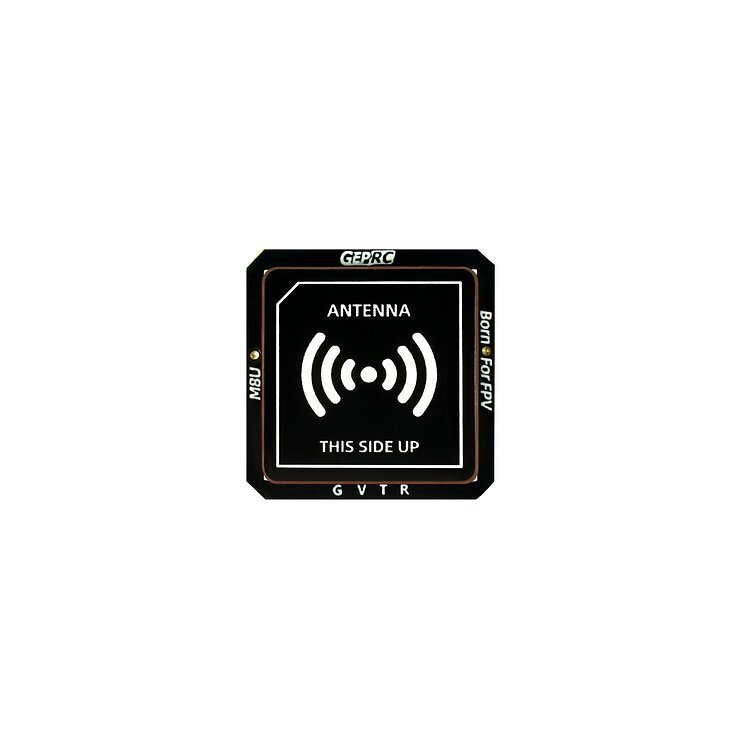

GEPRC GEP M8U GPS BDS FPV Drones

Hello FPV fans, GEPRC team has developed GPS module to improve user experience.

Features

• Fast positioning speed
• Stable connection
• Unique design
• Small size and light weight
• SH1.0 4pin connector design, no soldering required.
• On-board PPS positioning and power display, easy to operate.

specifications

• Model: GEP-M8U GPS module
• Input voltage: 3.3V-5V
• Receive format: GPS, BDS
• Channel: 72ch
• Compass: None
• Baud rate: 115200bps
• Output connector: SH1.0-4P
• Communication protocol: UART
• Output protocol: UBLOX
• Output frequency: 10Hz
• Speed accuracy: 0.05m / s
• Horizontal positioning accuracy: horizontal <2.5M, SBAS < 2.0M
• Timing accuracy: 30 ns
• Receive sensitivity: tracking-162dBm, detection-160dBm
• Dynamic characteristics: Max altitude: 50000m, Max speed: 500m/s
• Max. Acceleration: 4G
• Size: 22mm x 22mm x 8mm
• Weight: 7.9g

Contents

• 1 x GEP-M8U GPS module
• 1 x SH1.0 4pin connection cable
• 1 x GPS user manual
