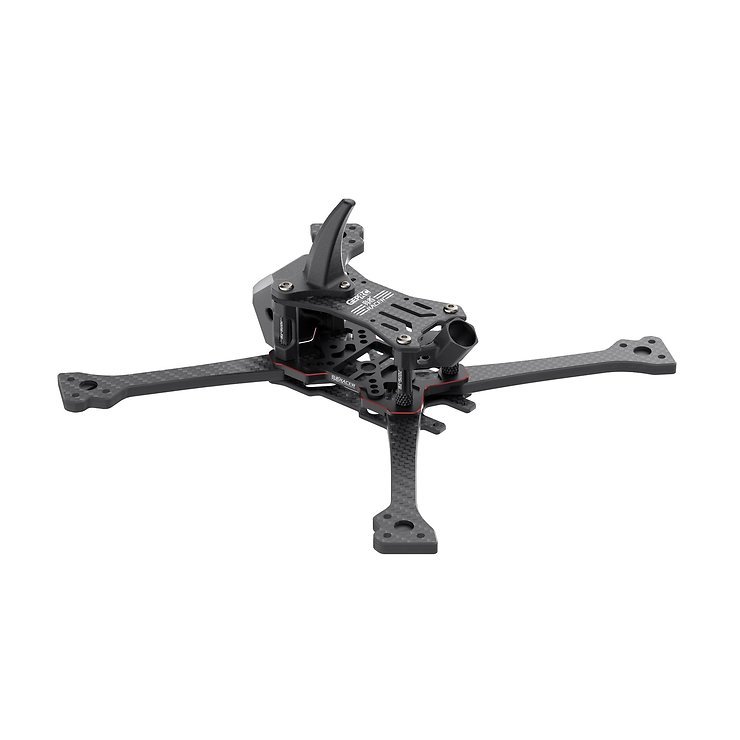

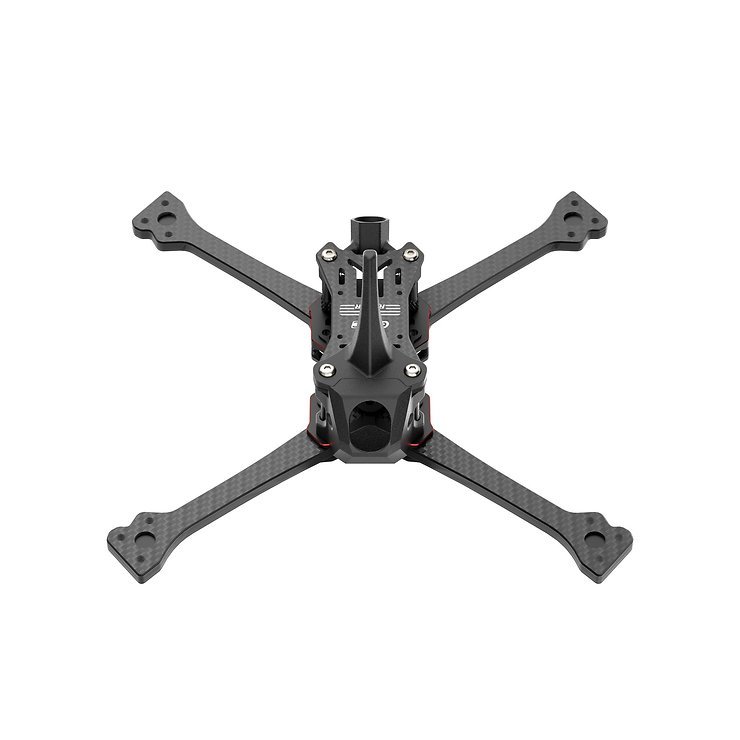

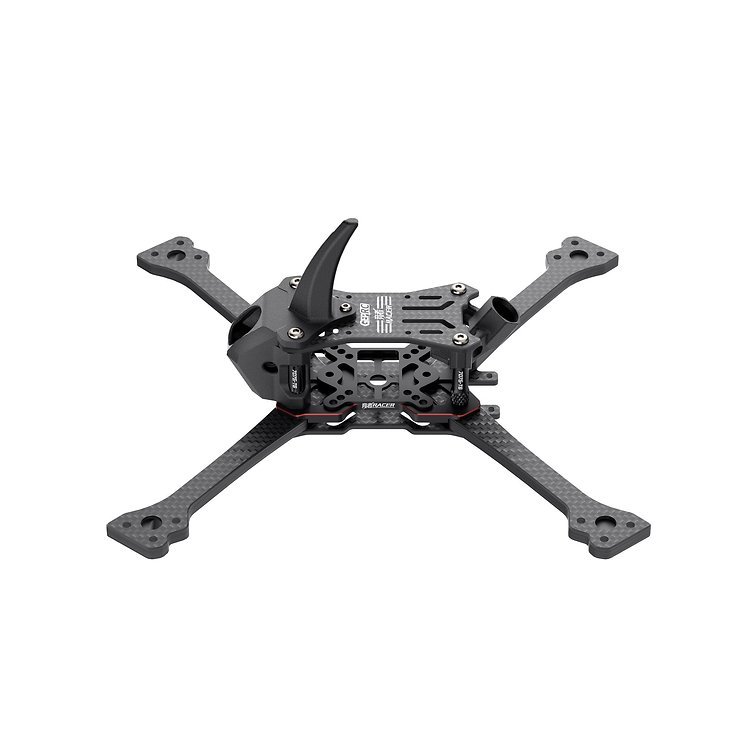

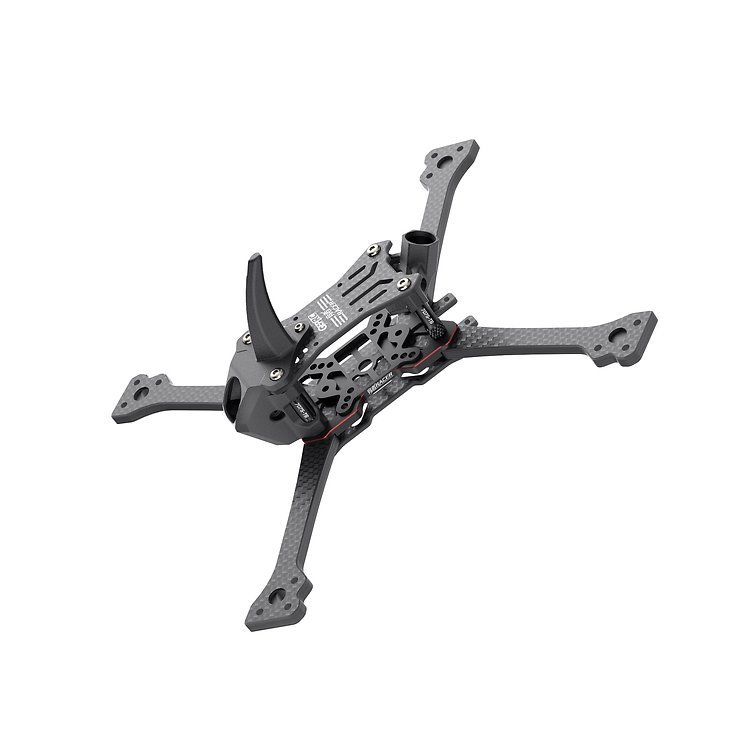

GEPRC Racer FPV Frame 5 inch black red

GEPRC Racer FPV Frame 5 inch black red

Product description

When the conventional FPV drone can't meet the demands of speed in the FPV racing arena, you need a racing frame designed specifically for competition. That's how the GEPRC Racer was born.

The Racer frame combines the 7075-T6 aerospace aluminum alloy rail with a high quality T700 carbon fiber plate that has been CNC machined. The overall structure is extremely solid. Flight controllers measuring 20x20mm/25.5x25.5mm/30.5x30.5mm can be mounted and the motor mounting holes have a size of 16x16mm.

Get the ultimate racing frame for your FPV adventures with the GEPRC Racer. Boost your performance and conquer the race track like never before! Order the GEPRC Racer now and experience FPV flying at the highest level!

Features

1. High strength 7075 aviation aluminum alloy rail
2. T700 carbon fiber plate material
3. Design with shark fin support, easy to get back up after a crash.
4. Quick release design of arm for convenient maintenance.
5. 25.5mm*25.5mm M3 screws FC hole, fit the latest GEPRC 25.5MM stack.
6. Compatible with HDZero VTX

Specifications

• Model: RACER FPV Frame
• Frame: GEP RACER Frame
• Dimensions: 175mm×173mm
• Wheelbase: 208mm
• Top plate: 2.0mm
• Aluminum plate: 2.0mm
• Bottom plate: 2.0mm
• Arm thickness: 5.0mm
• Aluminum column size: M3624mm
• FC mounting hole: 30.5mm30.5mm/25.5mm25.5mm/20mm*20mm
• VTX mounting hole: 20mm*20mm
• Motor mounting hole: 19mm*19mm
• Camera mounting hole: 14mm
• Propeller: 5 inch
• Weight: 78g±2g
