GEPRC SMART 16 Freestyle Drone FPV PNP

GEPRC SMART 16 Freestyle Drone FPV PNP

Product description

GEPRC SMART 16 Freestyle Drone FPV PNP

The SMART 16 continues the consistent lightweight concept of the Phantom series. The 1.5mm carbon fiber arm with a 1mm top plate makes it light and strong at the same time. We used high potential brushless 11000Kv 0803 motors in combination with 1610 propellers, so you can easily freestyle in your favorite field or a Bando. The quadcopter comes with a 3D-printed battery holder and is powered by a 2S 380mAh battery, which consists of two 1S batteries in series, making it weigh only 53.0g and giving you 4 minutes of flight time.

Specifications:

• Brand: GEPRC
• Model: SMART16
• Item name: SMART16 Freestyle FPV Drone
• Frame: GEP-ST16

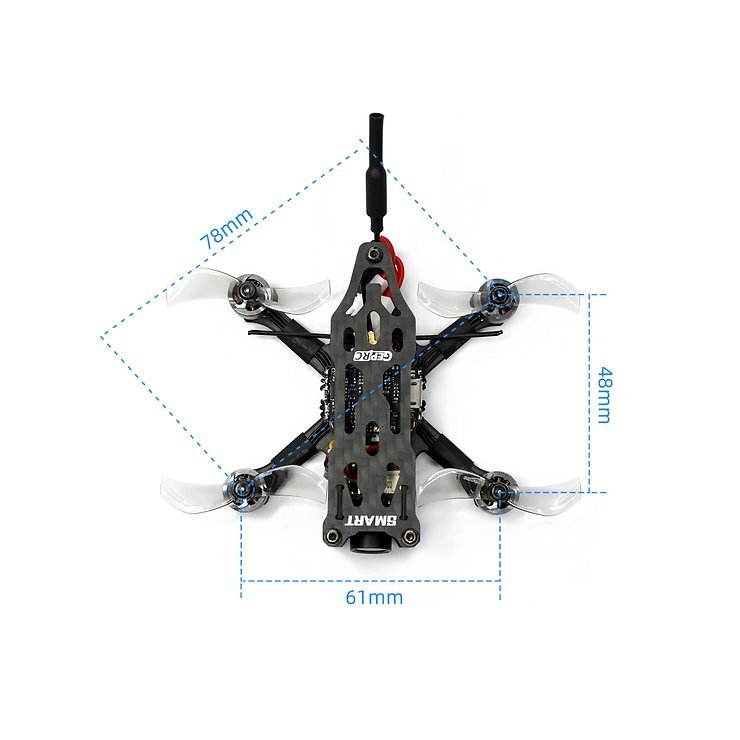

• Wheelbase size: 78 mm
• Top plate thickness: 1.0 mm
• Bottom plate thickness: 1.5 mm
• Arm thickness: 1,5 mm
• FC: STABLE F411 FC (16*16mm)
• MCU: STM32F411
• IMU: MPU6000 (SPI)
• OSD: BetaFlight OSD with AT7456E chip
• ESC: STABIL F411 BLheli_S 4IN1 12A ESC (16 * 16 mm)
• VTX: STABIL F411 VTX 5.8G 200mW (16*16mm)
• Camera: Caddx Ant
• Propeller: GemFan 1610-2
• Antenna: UFL 5.8G Stick VTX Antenna
• Motors: GR0803-11000KV
• Weight: 36,0 g
• Receiver version: PNP

Features:

• 1.6 inch small size + light weight, only 36.0 g
• Equipped with 200mW 5.8G VTX, with 6 frequency bands and 8 frequency point selection
• Caddx Ant camera with high quality image. Clear and clean!
• Independent battery compartment design, can be stuck on the top or bottom, making it easy and convenient to change batteries.
• The latest 0803 motor is combined with 1610-2 propeller, proving maximum power and efficiency
• Suitable for both freestyle and racing
• Includes a complete set of high quality 3D printed parts for a superior flying experience

Contents:

• 1 x SMART16 Set
• 2 x Battery cable ties M12x120mm
• 2 x Battery anti-slip mats
• 1 x spare printed set
• 1 x Spare screw set
• 1 x spare screwdriver set
• 4 x GemFan 1610-2 Propeller
