Lumenier AXII HD 5.8GHz FPV Patch Antenna RHCP
- 32,90 € *
- 33,90 €
-
4 customers bought this product
Lumenier AXII HD 5.8GHz FPV Patch Antenna RHCP
Product description
The Lumenier AXII Patch HD 5.8 GHz antenna offers you the highest performance you can get from a mini patch antenna for FPV. The Lumenier AXII Patch HD has an industry-leading gain of 8.4 dBiC for long-range flights and excellent penetration through obstacles compared to standard omnidirectional FPV antennas. It also offers a best-in-class efficiency of 95% (most mini-patch antennas are below 75%), which means you’ll get amazing performance and the best picture on your video goggles. Lumenier developed the Lumenier AXII HD 5.8GHz patch antenna in collaboration with renowned FPV antenna designer Hugo from TrueRC.
The Lumenier AXII HD Patch Antenna features an ultra-thin active element suspended above the reflector, enabling a higher speed factor and lower losses. This technology, combined with precision manufacturing, results in a top-of-the-line receiving antenna. It is suitable for both video goggles and 5.8 GHz ground stations and is capable of receiving signals from distances of up to several kilometers. The included 45° adapter enables better reception, and the LHCP polarization is ideal for the DJI FPV Goggles V2.
Features
- RP-SMA connector works with DJI FPV Goggles V2, Fat Shark Dominator Goggles, Walksnail Avatar Goggles, and more
- Compact, low-profile design for your goggles
- Designed for goggles or base stations
- Left-handed circular polarization
- 76-degree beam width
- Incredible 95% efficiency
- AXII Patch HD Antenna

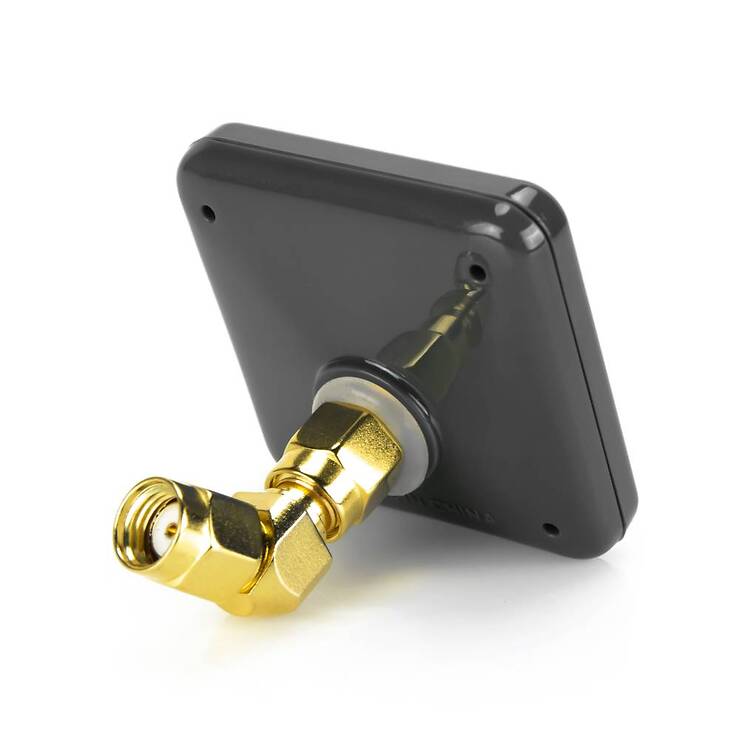

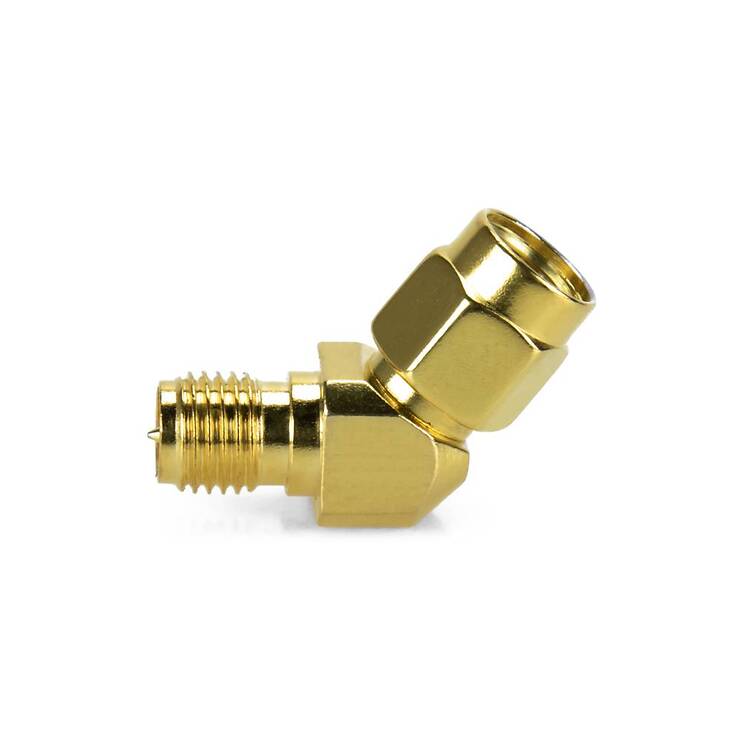

- Includes a 45° adapter
- High 8.4 dBiC
Specifications
- Connector: RP-SMA connector with 45° adapter (compatible with DJI FPV Goggles V2, Fat Shark Dominator, and others with RP-SMA)

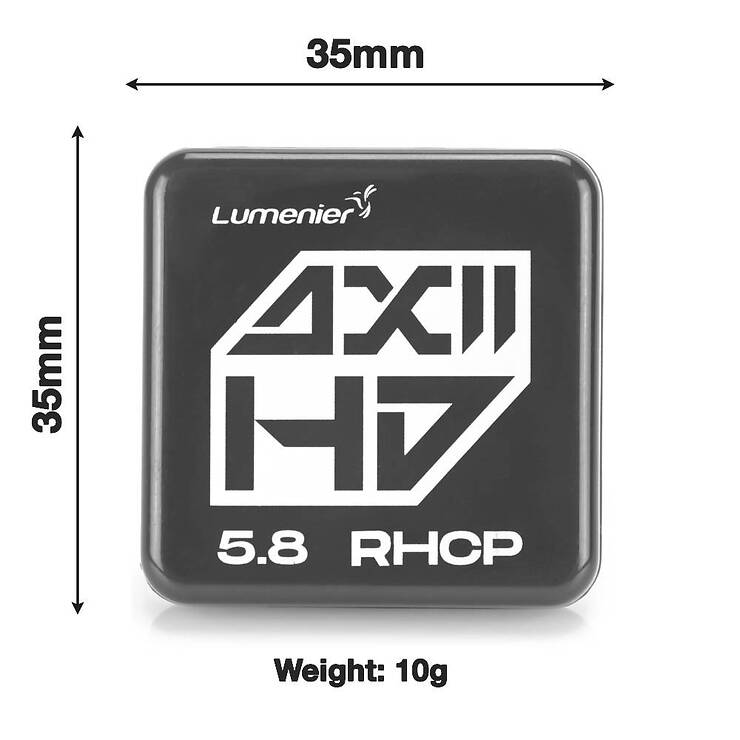

- Dimensions: 35 mm x 35 mm x 9 mm (20 mm with RP-SMA / 36 mm with RP-SMA + adapter)
- Polarization: Right-hand circular polarization (RHCP)
- Weight: 10 g without adapter / 16 g with adapter
- Model: AXII Pflaster HD
- Bandwidth: 220 MHz
- Frequency: 5.8 GHz
- Beamwidth: 76°
- Gain: 8.4 dBiC
- Color: Gray
| scope of delivery | 1 x Lumenier AXII Patch HD 5.8GHz Antenne - RHCP
|
|---|---|
| Order number | GET-19596 |
| EAN | 7646133513098 |
| Manufacturer | Lumenier |
| Produktsicherheit | Hersteller: GetFPV LLC 1060 Goodrich Ave Sarasota, FL, 34236-4305 United States E-Mail: support@getfpv.com Verantwortliche Person: meilon GmbH Konrad Zuse Ring 31 53424 Remagen Deutschland E-Mail: support@meilon.de Tel.: +49 (0)2642 / 40 52 88 0 |
