iFlight BLITZ Wing H743 Flight Controller FC FPV

iFlight BLITZ Wing H743 Flight Controller FC FPV

Product description

Our high-quality flight controller, specially designed for fixed-wing UAV enthusiasts, is compatible with INAV and Ardupilot. This controller is tailored to the needs of hobbyists who are passionate about model flying, providing a reliable and efficient solution for their aircraft. With advanced features and compatibility with popular software platforms, our flight controller offers a superior flying experience for enthusiasts looking to take their fixed-wing UAVs to the next level.

Features

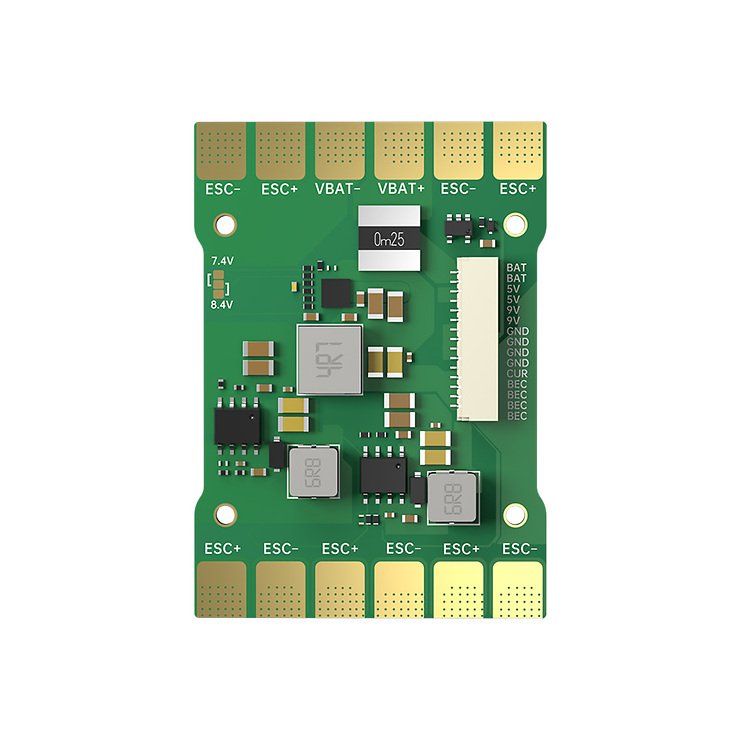

• Up to 5 groups of ESC power supply solder pads
• Equipped with a dual analog camera input function that can be switched by remote control
• Independent 6A servo power supply BEC, which provides powerful current protection for servos and is compatible with servos of different voltages.
• Utilizes STM32H743 main MCU, which provides powerful processing performance and function support.

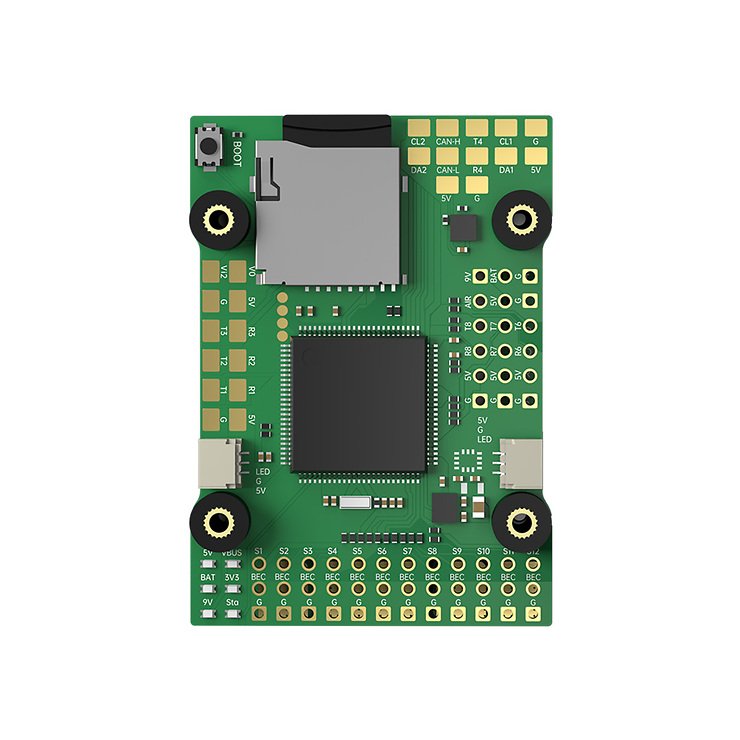

• Built-in SD card slot that provides large storage space for data recording.
• Solder pad reservation design
• Integrated current meter, real-time monitoring of air current.
• Supports external air speed sensor for more accurate data.

Specifications

• MCU: STM32H743
• Gyro: ICM42688P
• Baro: SPL06-003
• OSD: AT7456E
• BlackBox: MicroSD card
• UARTS: 8
• Smartaudio / IRC Tramp VTX protocol supported
• WS2812ledStrip: Yes
• Beeper pad: Yes
• Switchable dual camera inputs
• Switchable 5V/7.4V/8.4V outputs
• 7-36V DC IN (2-8S)

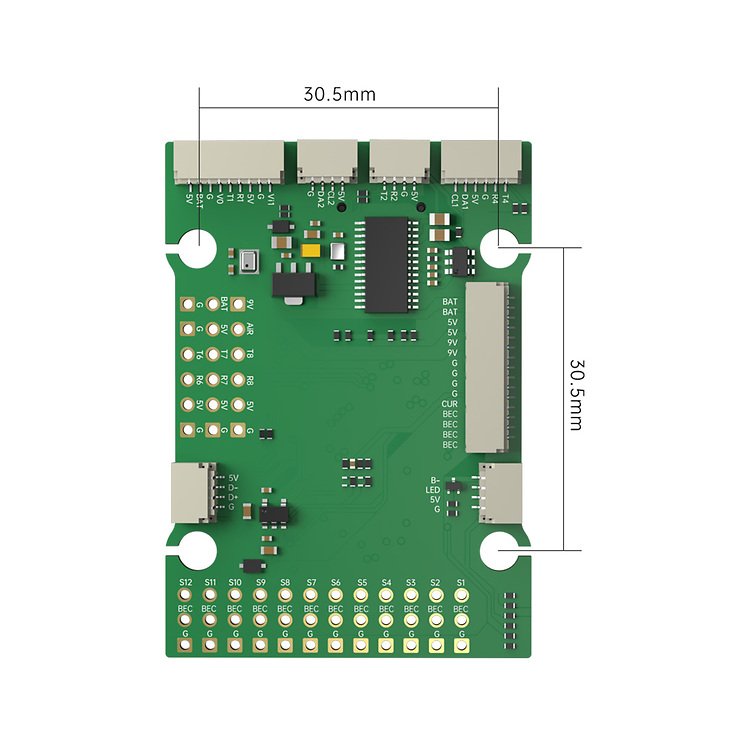

• Mounting pattern: 30.5*30.5 mm/φ4
• Dimensions: 36.9*52 mm
• Weight: 35 g
• INAV firmware: IFLIGHT_BLITZ_H7_WING
• Ardupilot firmware: BlitzWingH743
• BEC: 5 V 2.5 A / 9 V 2.5 A / 5-8.4 V 6 A
• PDB current resistance: 100 A continuous current, 160 A peak current (10 seconds)
• Power (continuous current): 33.6 V*100 A = 3360 W
• Power (peak current): 33.6*160 A = 5376 W
• Current measuring range: 0-176 A
