iFlight iH3 HD O3 Air Unit 4S BNF DJI

iFlight iH3 HD O3 Air Unit 4S BNF DJI

Product description

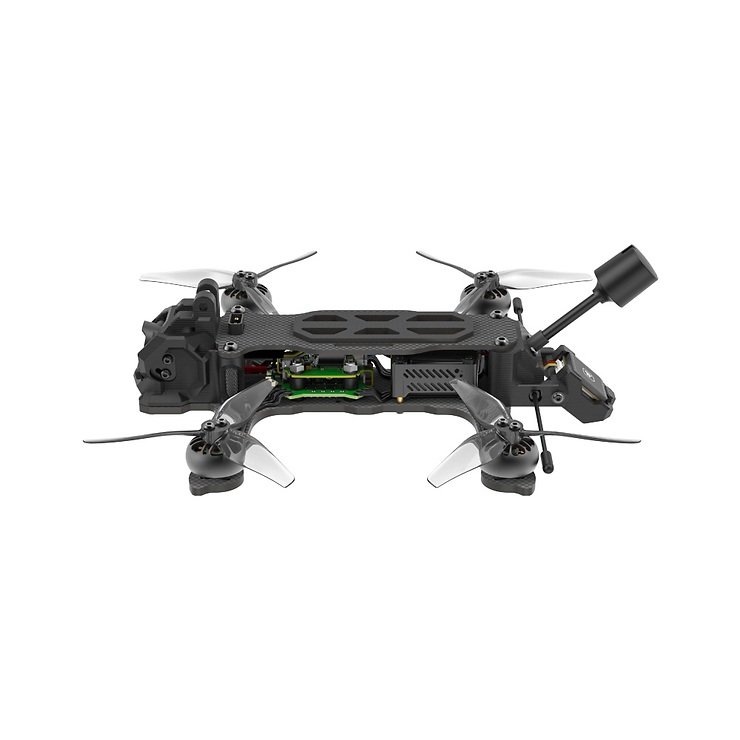

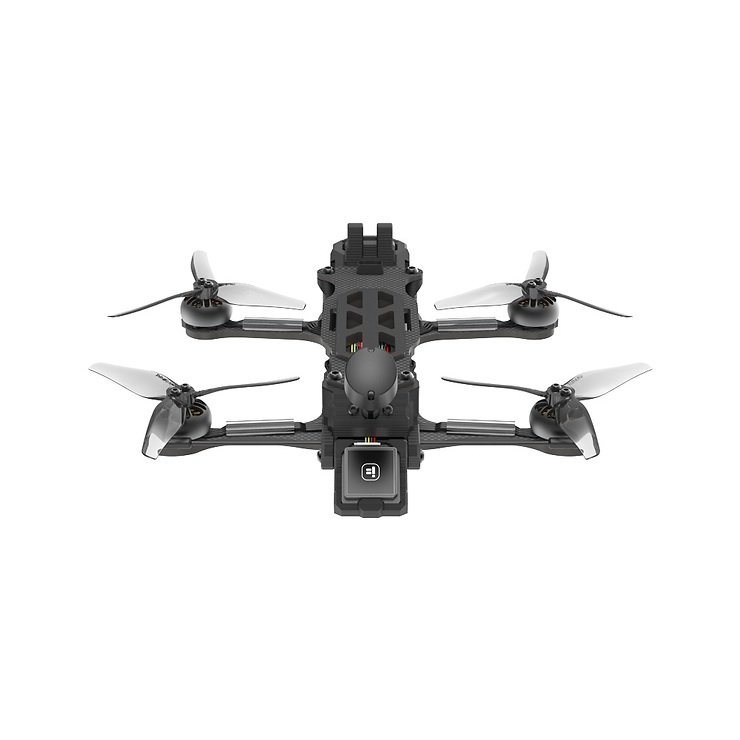

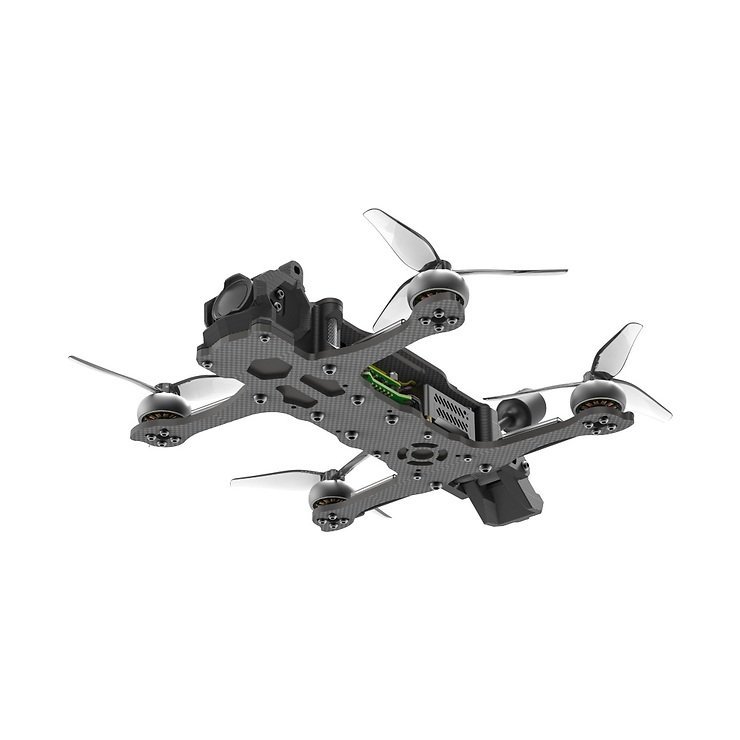

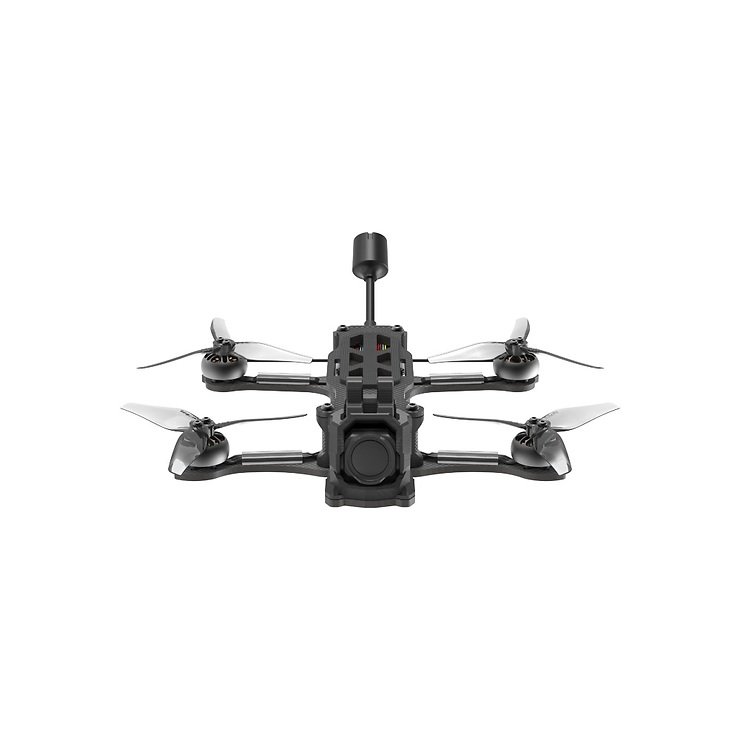

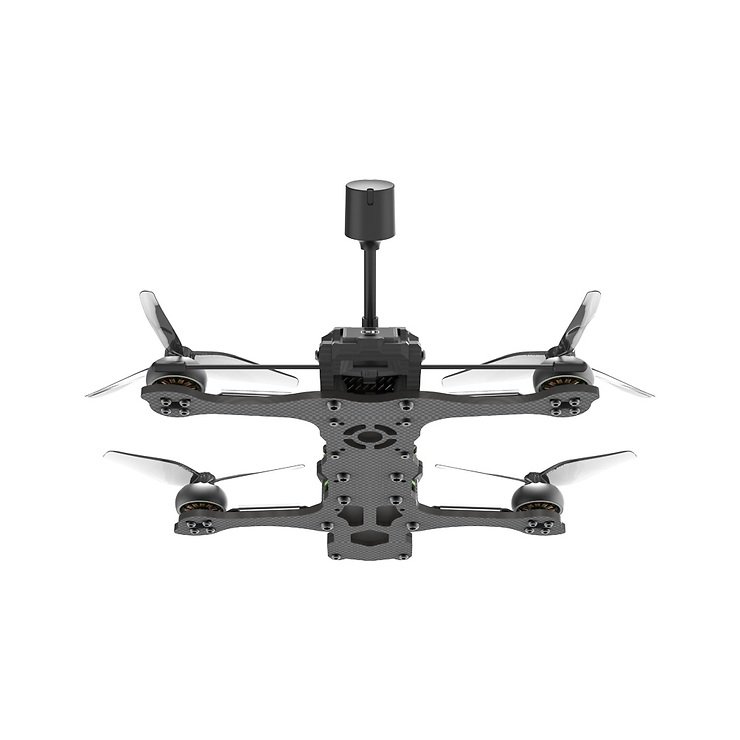

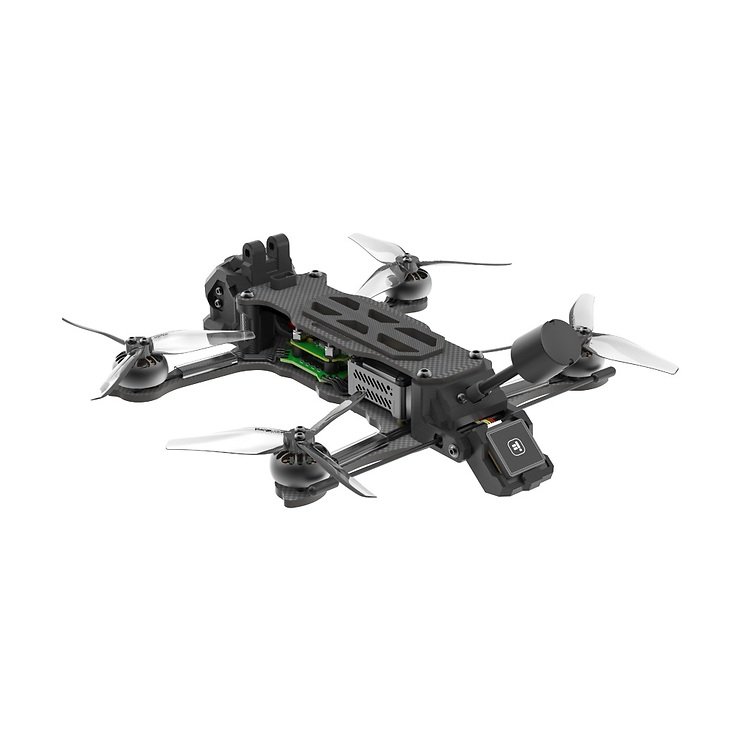

iFlight iH3 HD O3 Air Unit 4S BNF DJI

Discover the iH3 - a high-quality drone for cruising that offers an exceptional flying experience at an affordable price.

Featuring the DJI O3 Digital System, the iH3 is a 3.5-inch drone that offers stable flight, easy operation and superior quality. The H-shaped frame structure and anti-spark filter provide balance and stability, even during intense operations. In addition, it can carry a naked GoPro to provide exciting flight footage.

Recommended Batteries:

1050mAh 4S // Maximum power for freestyle with the feel of a 5-inch drone and long range for medium- to long-range flying.

850mAh 4S // Excellent weight to power ratio for your daily adventures.

Bulletpoints

• DJI O3 HD Air Unit for low-latency digital transmission
• 4K stabilized video recording with 155° ultra-wide angle
• Secure battery connection with anti-spark filter
• Pre-installed GPS for increased safety at a distance
• Dedicated mount for naked GoPro or GoPro Bones
• H-shaped frame structure for balanced flights without propellers in view

Specifications

• Flight controller: BLITZ Mini F7 FC
• Controller: BLITZ Mini E55 4-IN-1 ESC
• Video transmission: DJI O3 Air Unit
• Geometry: H-shaped
• Frame: 168 mm (wheelbase)
• Motor: XING 1504 3100KV motors
• Propeller: HQ 3.52.53propeller
• Weight of the drone: Approx. 216 g (without battery)
• Dimensions (L×W×H): 135×100×40 mm (minus the mount)
• Maximum speed: 110 km/h (manual mode)
• Maximum takeoff altitude: 3200 m
• Maximum hover flight time: Approx. 12 minutes (no load with 4S 850mAh battery), approx. 18 minutes (no load with 4S 1050mAh battery)
• Maximum resistance to wind speed: Level 5
• Operating temperature range: -10° to 40° C
• Antennas: DJI O3 Air Unit dual-band antenna
• GNSS: GPS+Galileo

Video transmission:

• Weight: Approx. 36.4 grams (including mount)
• Dimensions (L×W×H): L32.5 × W30.5 × H14.5 mm
• Communication bandwidth: Max. 40 MHz
• Field of view (single screen): 155
• Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
• End-to-end latency
  • With DJI FPV Goggles V2
    • Video transmission quality 810p/120fps: Latency is less than 28ms.
    • Video transmission quality 810p/60fps: Latency is below 40 ms.
  • With DJI Goggles 2
    • Video transmission quality 1080p/100fps: The latency is only 30 ms.
    • Video transmission quality 1080p/60fps: The latency is only 40 ms.
• Maximum video transmission rate: 50 Mbps
• Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
• Operating temperature range: -10º to 40º C
• Power supply: 7.4-26.4 V
• Audio transmission: Not available
