Product description

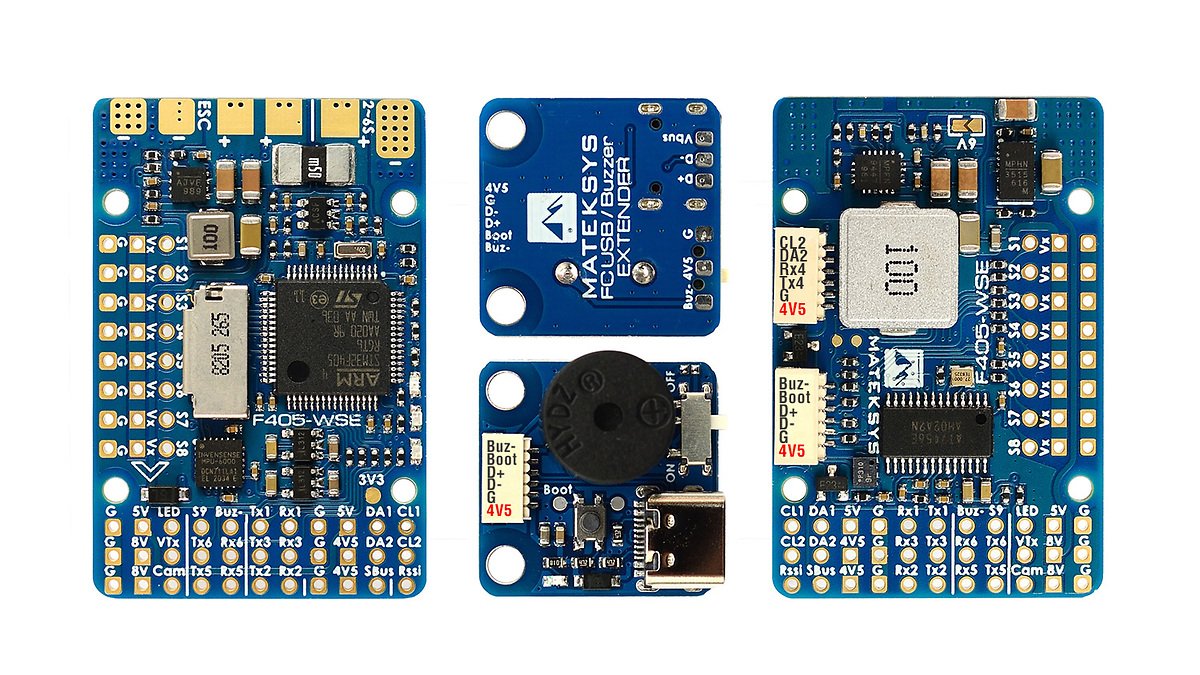

Matek Flight Controller F405-WSE

FC specifications

• MCU: 168MHz STM32F405RGT6 1MB Flash
• IMU: MPU6000 (SPI1)
• Baro: DPS310 (I2C1)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD socket (SPI3)
• VCP & 6x UARTs,
• 1x Softserial_Tx option (TX2 Pad, INAV)
• 10x PWM outputs (S1~S9, LED)
• 2x I2C
• 3x ADC (voltage, current, RSSI)
• 3x LEDs for FC STATUS (blue, green) and 3.3V indicator (red)
• Built-in inverter on UART2-RX for SBUS input
• PPM/UART shared: UART2-RX
• 1x SH1.0_6pin connector (4V5/G/TX4/RX4/DA2/CL2) for GPS/Compass
• 1x SH1.0_6pin connector for external USB and buzzer
• DJI FPV OSD: any replacement UART
• FrskyOSD: any replacement UART

Power supply

• 6~30V DC IN (2~6S LiPo)
• 132A high precision current measurement (250 scale)
• PDB/Current sense: 60A continuous, 132A burst.
• BEC 5V 2A for FC & peripherals
• BEC Vx 5A for servos, 5V/ 6V option
• BEC 8V 1,5A for VTX and camera
• LDO 3,3V 200mA
• Battery voltage sensor: 1k:10k

FC firmware

• INAV target: MATEKF405SE
• ArduPilot hwdef: MATEKF405WING

• Dimensions: 44 x 29 x 10 mm
• Mounting: 25 x 25mm, Φ2mm
• Weight: 20g with base plate and USB/buzzer adapter

Contents
1x FC F405-WSE
1x USB(Type-C)/Buzzer (Active) Adapter
1x Base Plate, 44 x 29mm
2x JST-SH-6P to JST-SH-6P Cable, 20cm
5x Brass Spacers, M2*4mm
10x Screws, M2*3.5mm
Dupont 2.54 Pins (Board comes unsoldered)
