T-Motor F66A Mini 3-8S BLHeli_32 4in1 ESC

T-Motor F66A Mini 3-8S BLHeli_32 4in1 ESC

Product description

T-Motor F66A Mini 3-8S BLHeli_32 4in1 ESC

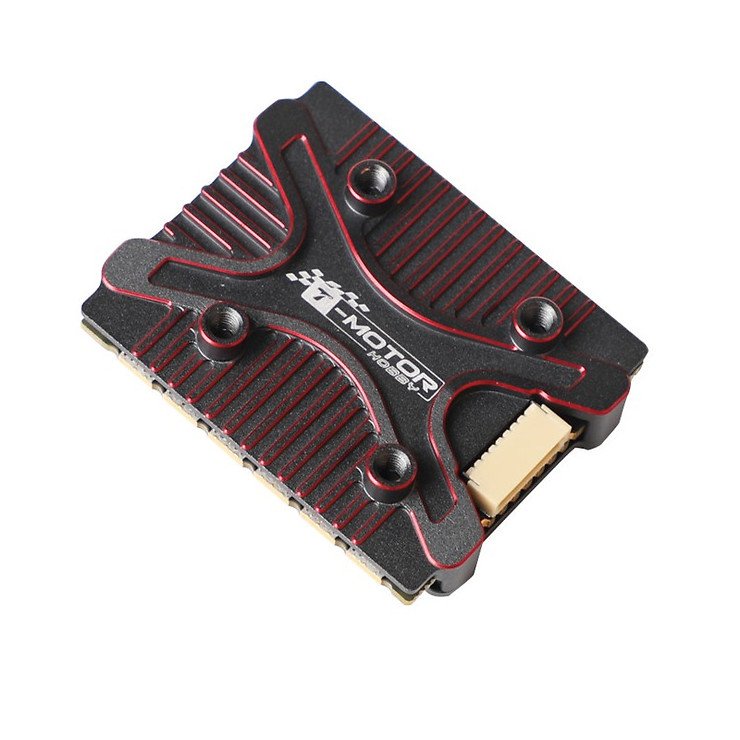

The new 4in1 ESC from T-Motor, the F66A mini has a double heat sink which gives it a higher burst (77A) than a single ESC.

The ESC PCB has no through hole and ensure that the current flows through a shorter path. The double-sided heat sink design makes the output power value higher than single-sided heat sinks.

They ESC mounting holes are moved forward and facilitate the installation of the drone frame.

Specifications

• Input voltage : 3-8S
• Current rating : 66A
• Maximum current : 77A
• Amperage meter : 135
• Firmware : BLHeli_32
• PWM frequency : 16-48KHz
• Weight : 21g
• Mounting hole : 20*20mm/M3
• Dimensions : 43*34*13.5mm
