Product description

OCTOMINER X8ULTRA PLUS Mining Rig - Open Air Frame - Housing

ETHEREUM HASHRATE 1850W - 821MH/S
Power consumption may vary up to 3% depending on GPUs used and miner settings. The 1850W power reading is the actual, accurate reading on the wall. Our intelligent power system provides accurate readings for total rig power consumption.

3000W OUTPUT POWER

• Full 3000W power output at any input voltage (100-240V)
• Power supply output is not degraded when input voltage is 100-120V!
• Very quiet operation when used under 2200W

18AWG CABLE

• 24X PCIE 6+2P connectors
• 3x connectors per GPU on high spec model
• 3x dedicated 18AWG power cables per GPU
• Works with any GPU

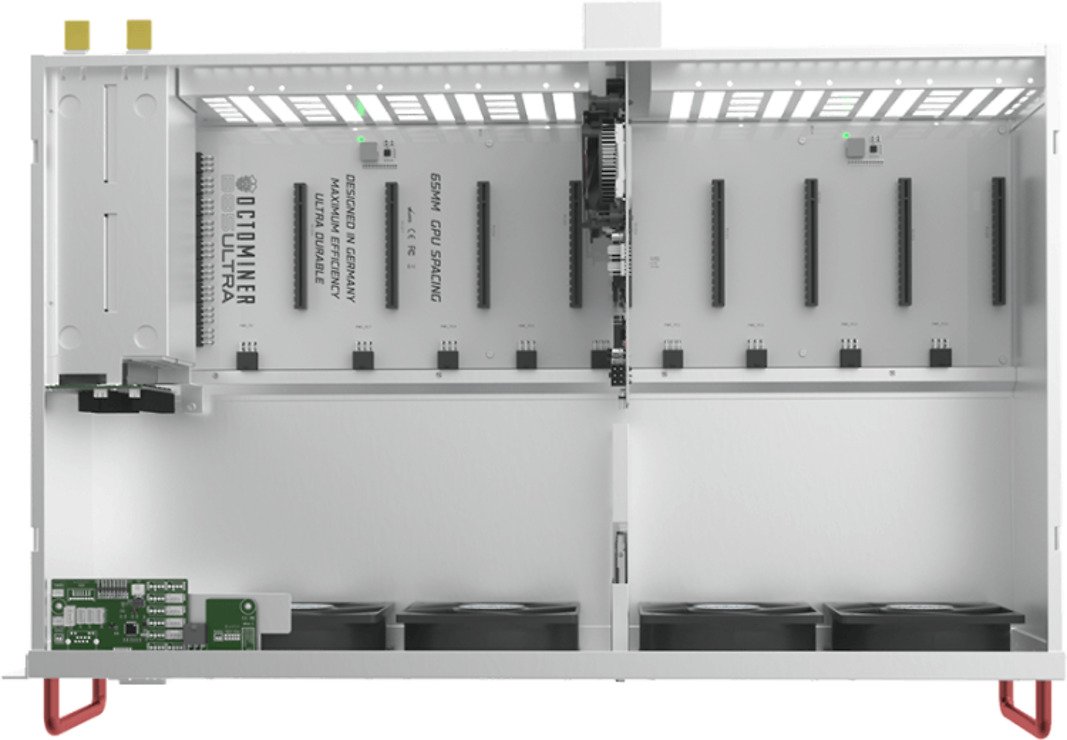

Spacing

• 65.00mm from GPU to GPU. Perfect for even the LARGEST GPUs!

Compatible

• Triple slot width GPU's. Up to 325MM length GPU's

Octomier Smart Power

• power supply input and output temperature monitoring
• pSU fan speed monitoring and control
• monitoring of PSU 12V output voltage
• pSU AC input voltage monitoring
• power consumption monitoring

Compatible with RTX 3090

• Maximum 350W per GPU
• 3x 6+2P PCIe power connectors per GPU

High performance long life fans

• Octominer Ventus fans with high static pressure and CFM for increased airflow and optimal cooling performance.
• Rugged, ROHS-certified plastic blades and housing.
• Very quiet at 40-60% fan speed (1700-2100RPM)
• Optimized PCB and motor design (up to 20% more efficient).
• Improved reliability and heat dissipation with a thick copper PCB.
• Reliable Japanese NMB double ball bearings for longer life.
• High precision and efficient PWM modulation speed control.
• 140 x 38mm size provides higher airflow and efficiency, and less noise.

Interlocking hardware watchdog and fan control

• Full integration with any mining operating system allows the intelligent fan control and hardware watchdog to automatically regulate the case fan speed based on environmental values to keep GPU temperatures in the optimal range. It is possible to select the "optimal temperature range" in the mining operating system and set the minimum speed, and set the fans to a specific speed with the manual setting. The hardware watchdog automatically restarts a frozen system after the microcontroller has determined that the system has frozen and needs to be restarted.

Features:

• Intel G1840 CPU, 2.8Ghz Dual Core (Upgrade to 4 Core i7 possible)
• 3000W total power supply (4x750W hot swap server power supplies)
• 8GB DDR3 RAM (32GB MAX)
• 60GB SSD (expandable up to 3x SATA DRIVE)
• OCTOMINER HOUSING WITH 4 HIGH PERFORMANCE FANS 140x38MM (HIGH AIR FLOW, PWM SPEED CONTROL)
• OCTOMINER HARDWARE WATCHDOG & SMART FAN CONTROLLER (automatic fan speed control, automatic system restart, status LEDs, OLED display with system information)
• BOSCH ENVIRONMENTAL SENSOR (measurement of air pressure, temperature and humidity at the intake side and temperature of the exhaust air)
• HIVE OS PREINSTALLED
• DIMENSIONS 70x40x17.8CM
• WEIGHT 17KG

the pictured electronic components (GPU) are not part of the delivery.
