BETAFPV BT2.0 PH2.0 Adapter Cable 6 pieces

BETAFPV BT2.0 PH2.0 Adapter Cable 6 pieces

Product description

BETAFPV BT2.0 PH2.0 Adapter Cable 6 pieces

BT2.0 connector - the most important revolution in 1S Tiny Whoop Copters.

In order to offer our customers the greatest possible comfort, we have specially made this adapter cable. This adapter cable is a perfect solution if you want to charge the battery BT2.0 300 mAh 1S with the charger PH 2.0.

Special features

• The BT2.0 connector effectively reduces the internal resistance of the connector by upgrading the crimped pins to 1.0 mm banana plugs and increasing the cross-sectional area of the 1.0 mm banana plug
• The BT2.0 connector supports 9A continuous current and 15A burst, while the PH2.0 connector supports 4.5A continuous current
• By using the BT2.0 connection, the problem of voltage drop is solved and the discharge of the 1S lipo battery becomes more efficient. Pilots can enjoy more flying time.
• The conversion from PH2.0 connector to BT2.0 connector can be achieved with only one adapter cable, which is convenient for charging the BT 2.0 battery with the PH 2.0 charger.

Technical data

• Article: BT2.0-PH2.0 adapter cable
• Length: 55 mm (cable length without connector)

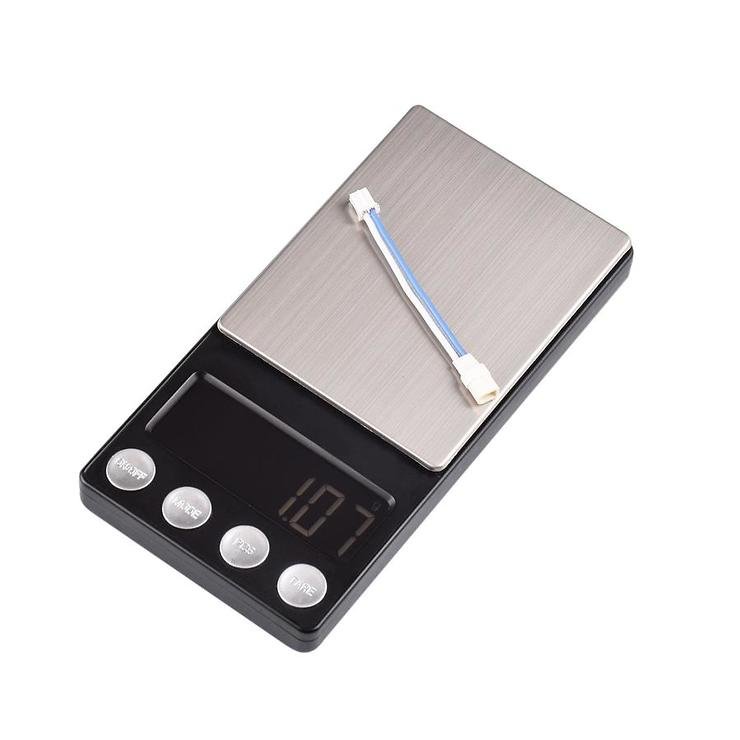

• Weight: 1,07g (1 pcs.)
• Cable type: 22AWG
• Input connector: PH2.0 male Stecker（Anschluss to PH2.0 Ladegerät）
• Output connection: BT2.0 female Stecker（Anschluss to BT2.0 Lipo）
• Note: Blue represents the positive (+) pole; white represents the negative (-) pole

Content

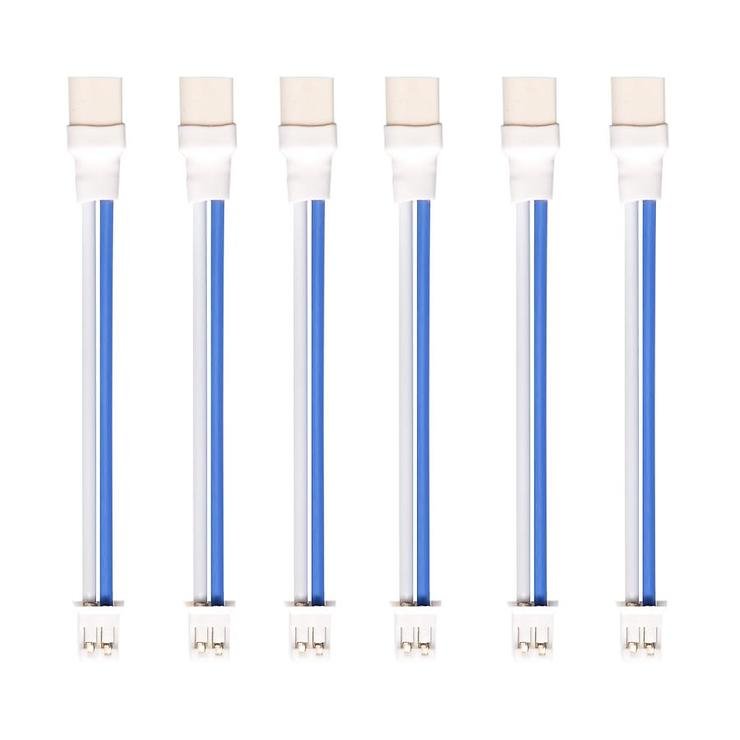

• 6x BT2.0-PH2.0 adapter cables
