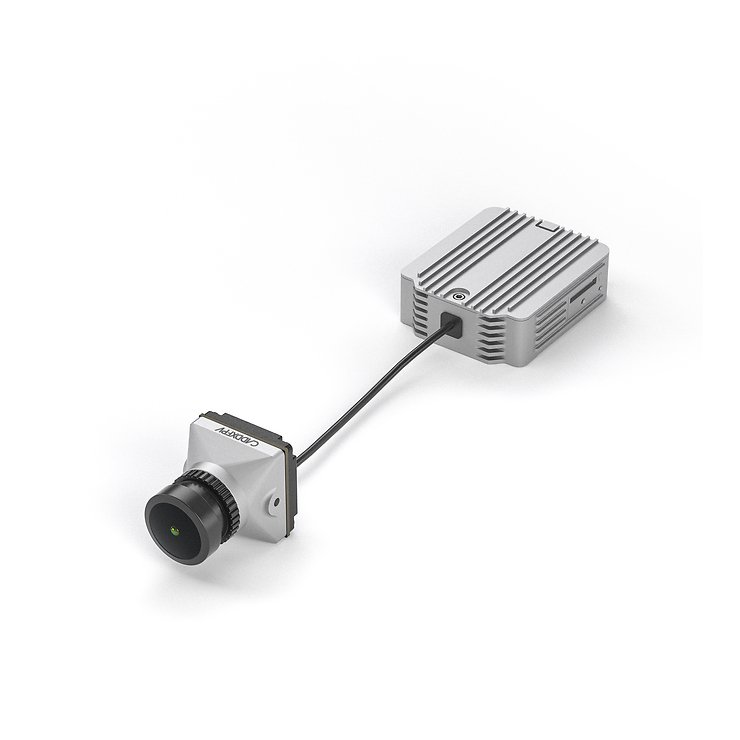

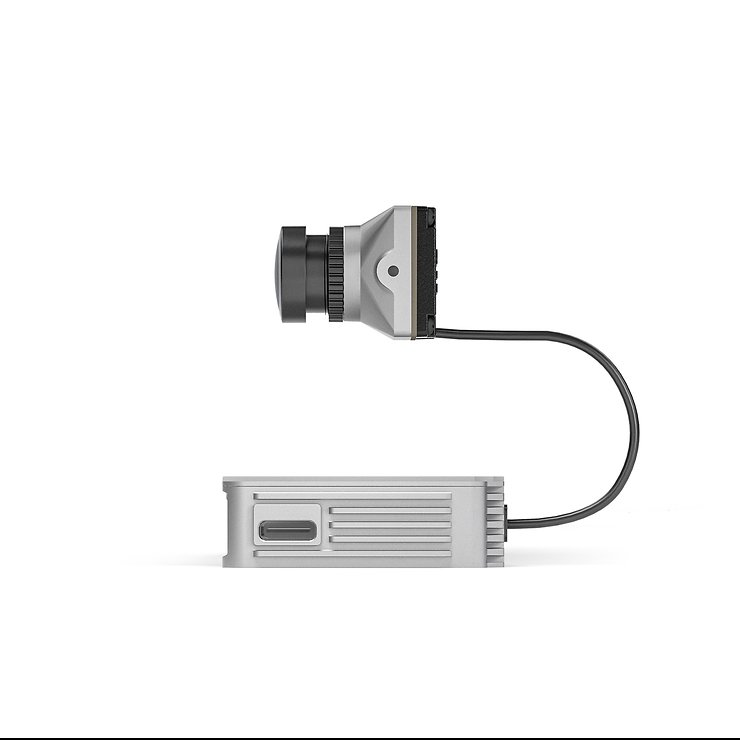

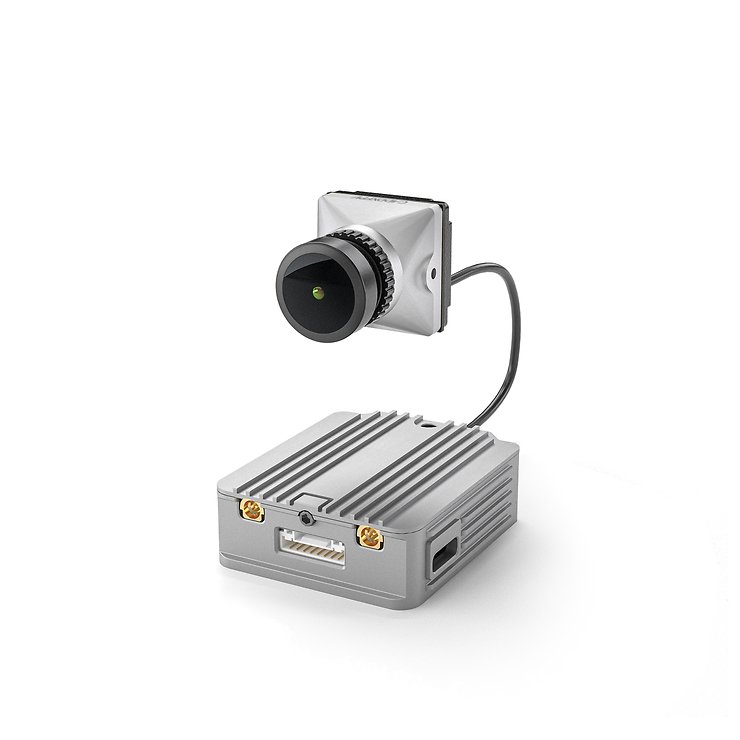

Caddx Air Unit Polar starlight Digital HD FPV silver

Caddx Air Unit Polar starlight Digital HD FPV silver

Product description

Caddx Air Unit Polar starlight Digital HD FPV silver

• Weight Polar Air Unit (incl. camera): 42,6g
• Antenna: 3,9g(MMCX-angle piece)
• Dimensions Air Unit: 44×37.8×14.4mm
• Polar camera: 24×19×19mm
• Coaxial cable: 110mm
• Antenna: 81mm
• Betriebsfrequenz 5.725-5.850GHz
• Transmit Power(EIPP) FCC/SRRC: <30dBm;
• CE: <14dBm
• Min.latency(end-to-end) 720p 60fps<32ms
• Max.transmission distance FCC/SRRC:4km;CE:0.7km
• Video format MP4(Video format:H.264;
• Audio format:AAC-LC)
• I/O interface USB-C,MMCX,3-in-1 connector,micro SD card slot
• Supported flight control system BetaFlight
• Operating temperature range 0°to 40°C（32°to 104°F）
• Input voltage 7.4-17.6 V
• Image sensor 1/1.8" inch 2.3Mega starlight sensor
• LENS F/1.6 & 8Mega
• FOV 162°(D); 138°(H); 75°(V)
• Min. illumination 0.00003Lux
• Aspect ratio 16:9

Contents

• Polar air unit kit x1
• Screw m2 3/4/5mm x6
• Sealing ring x4
• 3-in-1 cable x1
