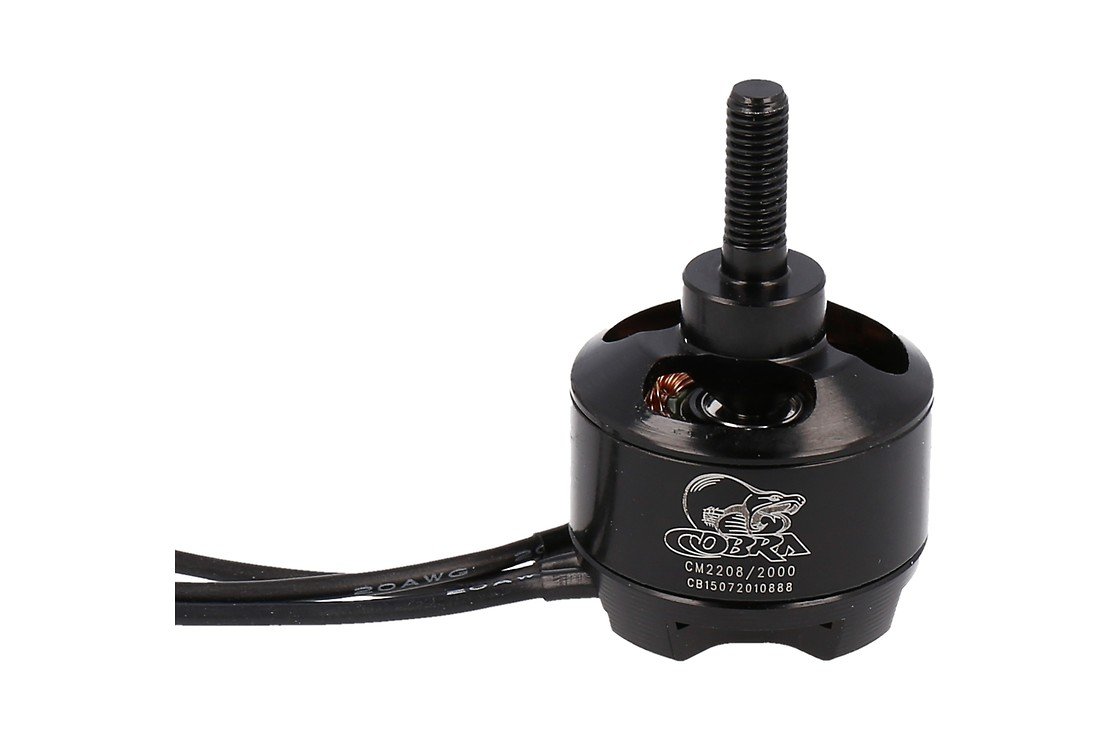

Cobra 2208 2000KV Brushless Motor CM-2208/20
Cobra CM 2208/20 Engine Specifications
Stator Diameter 22.0 mm (0.866 in)
Stator Thickness 8.0 mm (0.315 in)
Number of stator slots 12
Number of magnetic pole 14
Motor Wind 20 Turn Delta
Motor Kv Value 2000 RPM per Volt
No Load Current (Io) 0.77 Amps @ 10 Volts
Motor Resistance (Rm) per phase 0.114 Ohms
Motor Resistance (Rm) phase to phase 0.076 Ohms
Maximum Continuous Current 20 Amps
Max Continuous Power (2-cell Li-Po) 150 Watts
Max Continuous Power (3-cell Li-Po) 220 Watts
Motor Weight 44.2 grams (1:56 oz.)
Outside Diameter 27.7 mm (1.091 in.)
Motor Shaft Diameter 3.00mm (0.118 in.)
Prop Shaft Diameter 5.00 mm (0.197 in.)
Motor Body Length 24.0 mm (0.945 in.)
Overall Shaft Length 45.2 mm (1.780 in.)
Motortiming 5-10 degrees
PWM Frequency 8 KHz
| Order number | COB-CM2208-2000 |
|---|---|
| EAN | 4260449971187 |
| Manufacturer | Cobra Motors |
