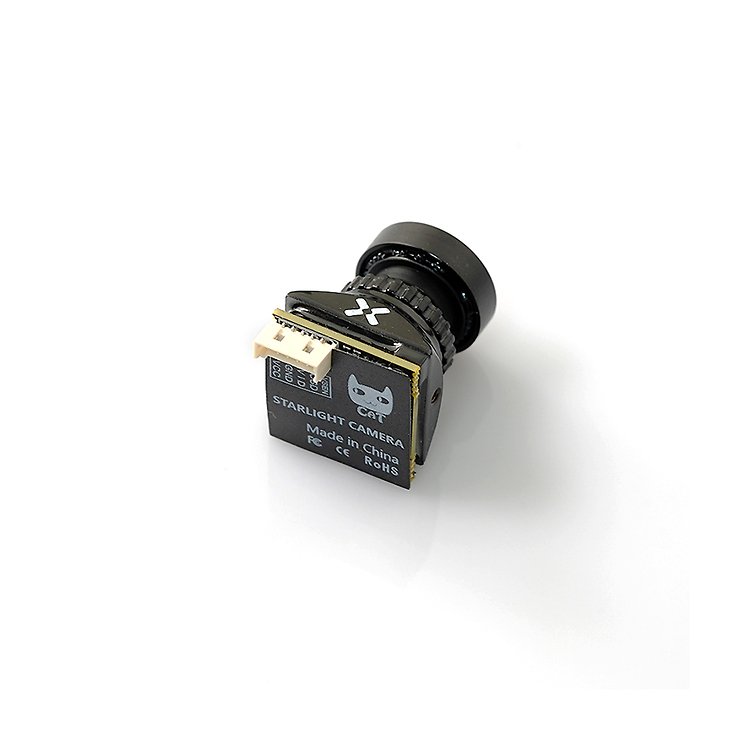

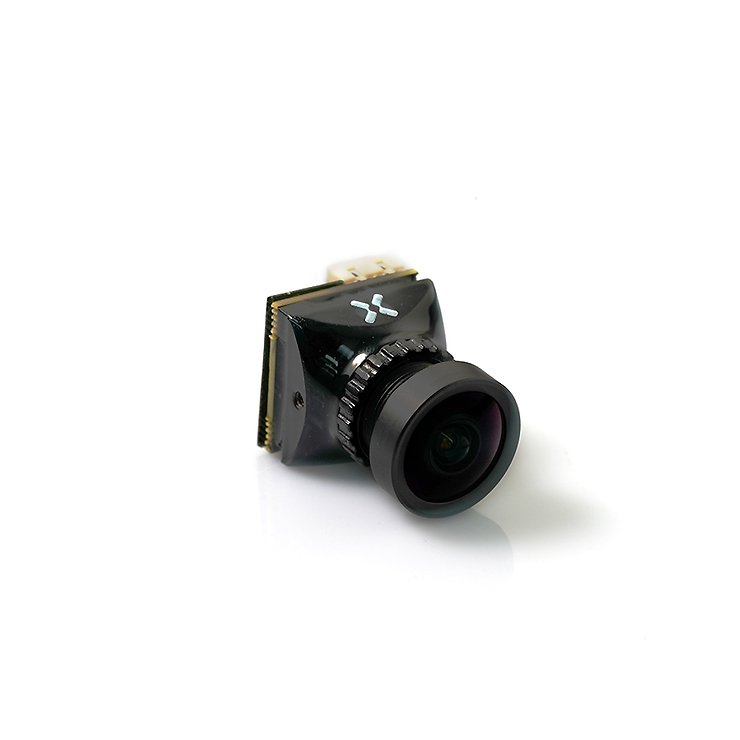

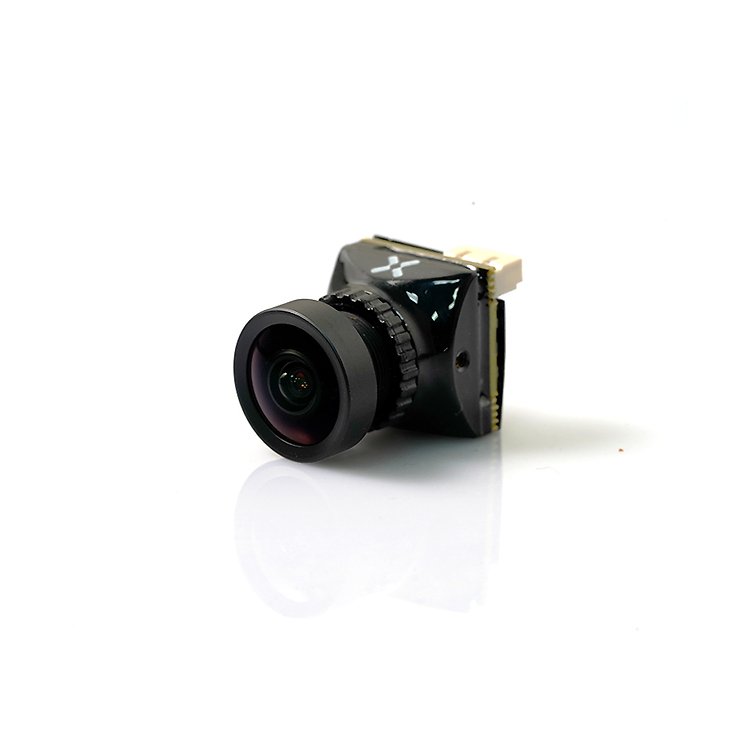

Foxeer Cat 4 Micro 1200TVL Super Low Light FPV Camera black

Foxeer Cat 4 Micro 1200TVL Super Low Light FPV Camera black

Product description

The Foxeer Cat 4 Micro is the ultimate FPV camera for racers and freestyle pilots who don't want to miss out on clear images even in extremely low light. With its Sony 1/3" CMOS sensor, 1200TVL resolution and a specially developed low-light lens, it delivers razor-sharp, low-noise videos - even in almost complete darkness (down to 0.00001Lux).

Thanks to its switchable aspect ratio (4:3/16:9) and PAL/NTSC support, it can be used flexibly by any pilot. The 3DNR noise reduction, 100dB WDR (Wide Dynamic Range) and Auto White Balance ensure brilliant colors and clear contrasts.

With a weight of just 11.8g and compact 19x19mm dimensions, the Foxeer Cat 4 Micro fits into almost any FPV setup. In addition, you can use the integrated flight OSD to display important information such as voltage, time and camera name directly in the image.

Whether racing, freestyle or long range - this camera provides you with the best image in every situation!

Technical specifications

• Sensor: Sony 1/3" CMOS sensor
• Resolution: 1200TVL
• Picture format: 4:3 (standard) / 16:9 switchable
• TV system: PAL (standard) / NTSC switchable
• Lens: M12 2.1mm Low Light Lens
• FOV (field of view):
  • 4:3 → H: 95°, V: 72°, D: 120°
  • 16:9 → H: 95°, V: 53°, D: 110°
• Shutter speed:
  • PAL: 1/25 - 1/10000s
  • NTSC: 1/30 - 1/10000s
• Video output: CVBS analog signal
• Min. illumination: 0.00001 Lux
• White balance: Auto
• Noise reduction: 3DNR
• WDR (Wide Dynamic Range): 100dB
• Day/Night Mode: EXT / Auto / Color / B&W
• Flight OSD: Voltage, camera title, time
• Input voltage: 5V - 20V
• Languages: EN / 中文 / Русский / Español / Italiano / Français / Polski / Português / 日本語 / Ελληνικά
• Operating temperature: -10° to +50°C (RH 90% max.)
• Operating humidity: 20 - 80%
• Storage temperature: -20° to +70°C
• Power consumption: 95mA ±15% @ 12V DC
• Dimensions: 19 x 19 mm
• Weight: 11.8g (without cable)
