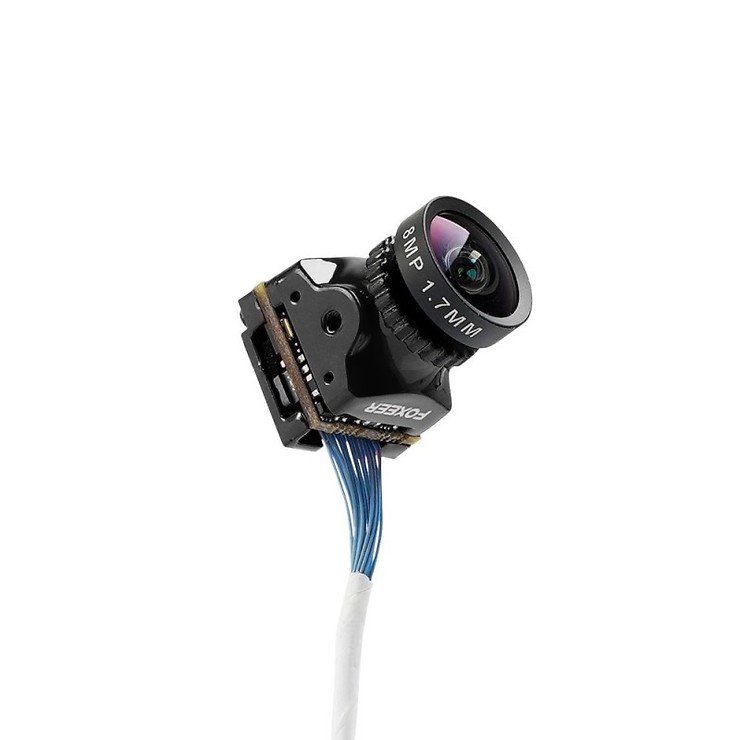

Foxeer Digisight 2 Nano for FatShark Sharkbyte FPV camera black

Foxeer Digisight 2 Nano for FatShark Sharkbyte FPV camera black

Product description

Foxeer Digisight 2 Nano for FatShark Sharkbyte FPV camera black

Technical Specifications

• Sensor Type Sony 1/3" CMOS Sensor
• Scale 4:3(Standard)/16:9 switchable
• Tv System PAL(Standard)/NTSC Switchable
• Resolution Digital 720P
• Shutter Speed PAL 1/25~1/10000 sec; NTSC 1/30~1/10000 sec
• Video Output 720P Digital HD
• FOV Digital: FOV-H:120° FOV-D: 145° / Analog: FOV-H: 125° FOV-D: 155°
• Exposure time Auto
• Minimum illumination 0.01Lux
• White Balance Auto
• DNR 3DNR 2DNR
• WDR 120dB
• DAY/CLOUDY/Night/LED mode
• Quick Mode Change Long press right button to switch between DAY/CLOUDY/Night/LED
• Flight OSD Camera title / time
• Input voltage 3,3 V from VTx
• Language ENGLISH/ DEUTSCH/ FRANCAIS/ PYCCKNN/ PORTUGUES/ ESPANOL/ 中文
• Working temperature -10°~50°C RH90% MAX
• Working humidity 20~80%
• Storage temperature -20°~70°C
• Menu Analog via camera programming board, Digital via VTx and cam board
• Consumption Digital:350mA@3.3V(Power supply via VTX)
• Cable length 150mm
• Dimensions 14*14mm; 19*19mm (with bracket)
• Weight 5.1g (without cable)

Content

• 1x Foxeer Digisight 2 Nano

• 4x (M2x4) screws

• 4x mounting ring

• 4x (M2x6) bracket screws

• 1x mounting bracket
• 1x ribbon cable (15 cm)
