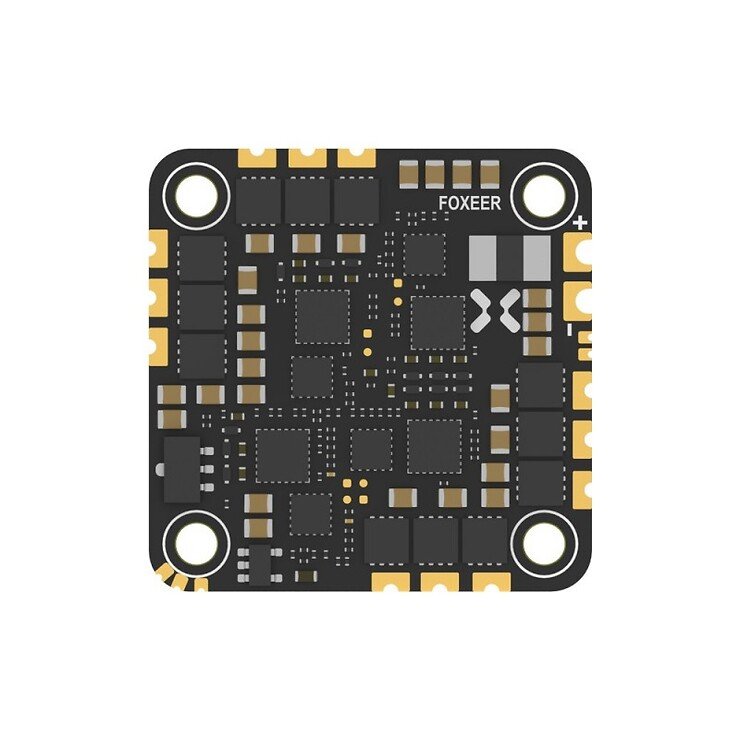

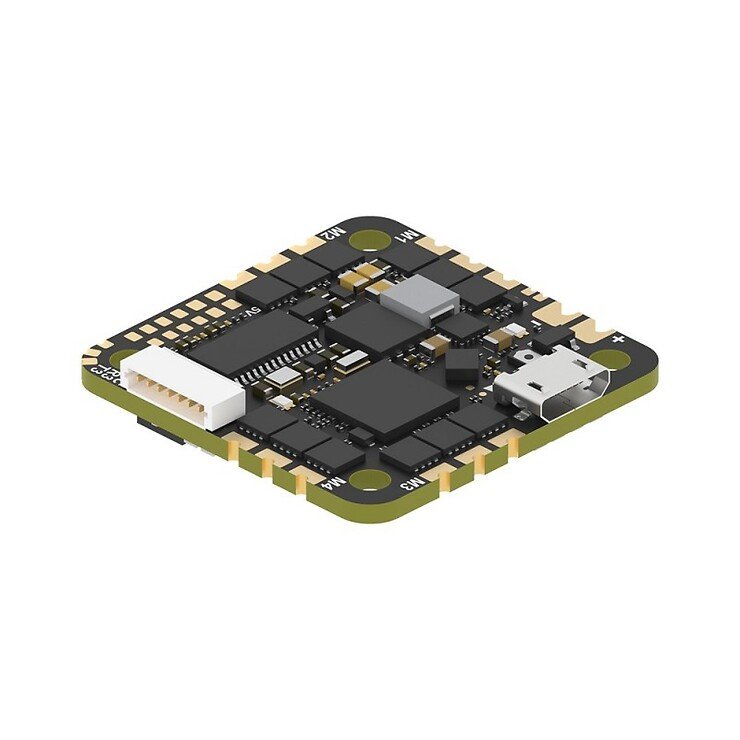

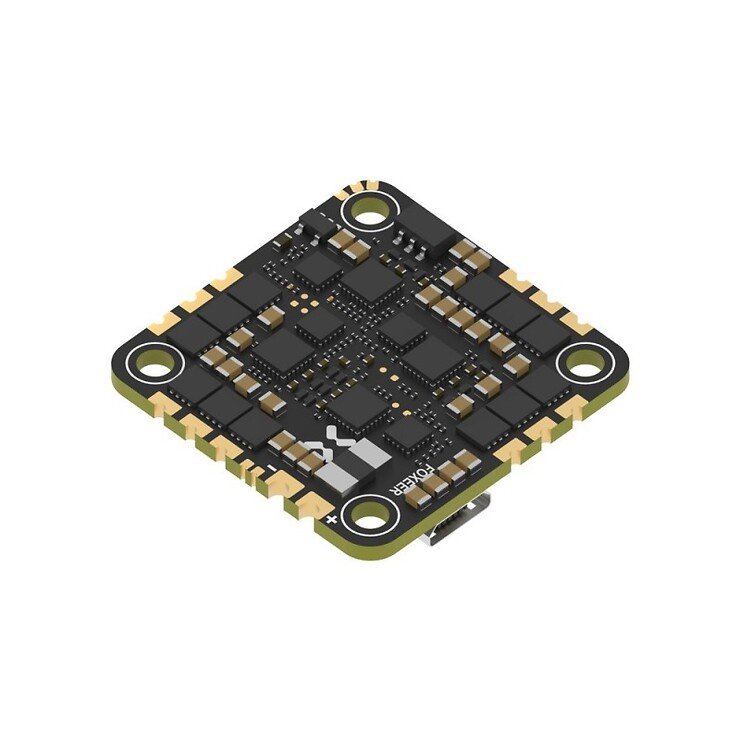

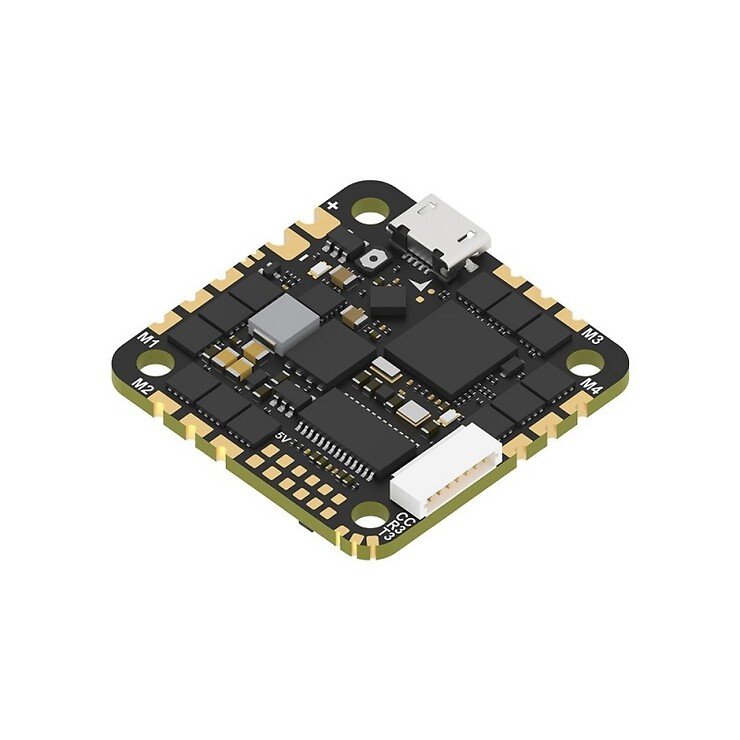

Foxeer Reaper FC AIO V2 F745 45A BLS 2-6S FPV Flight Controller

The article is no longer available.
  • 137,90 € *

Foxeer Reaper FC AIO V2 F745 45A BLS 2-6S FPV Flight Controller

Product description

Foxeer Reaper FC AIO V2 F745 45A BLS 2-6S FPV Flight Controller

Plug & Play with Foxeer cameras for direct remote control

  • Model: FOXEER Reaper AIO V2

  • CPU: STM32F745

  • Power supply: 2~6S Lipo(8.4~25.2V)

  • BEC output: DC5V/2.5A

  • OSD: BF OSD

  • Black box: 16M Flash memory

  • UART: 5 set

  • USB: Micro USB

  • Fireware BF:FOXE-FOXEERF745V2_AIO

  • DJI/Vista connector: Supported 7pin

  • Size: 32.5X32.5mm

  • Mounting hole: 25.5X25.5mm,Φ3mm/M2

  • Weight (g): 8.6g

  • Working temperature: -20℃ ~ +55℃

  • Working humidity: 20~95%

  • Storage temperature: -20℃ ~ +70℃

  • Package contains

  • Bluejay firmware: G-H-30-96-v0.16/ BLS:G-H-30 16.7
  • Continuous/burst current: 45A x 4/ 50A x 4
  • Input voltage: 2~6S Lipo(8.4~25.2V)
  • Telemetry: No
  • ESC Programming: Bluejay (standard)/BLHeli-S optional
  • Stick programming: Supported
  • Current sensor: Supported
  • Current scale: 100
  • Input signal: Dshot300/600

  • Contents
  • Foxeer Reaper FC AIO V2 F745 45A BLS 2-6S FPV Flight Controller
  • 1x AIO, rubber columns
  • 1x XT30 cable
  • 1x Vista cable
scope of delivery
  • 1x AIO
  • Gummisäulen
  • XT30 Kabel
  • DJI Kabel
  • Kondensator
Order number FOX-MR1671
EAN 4260691176538
Manufacturer FOXEER
