Product description

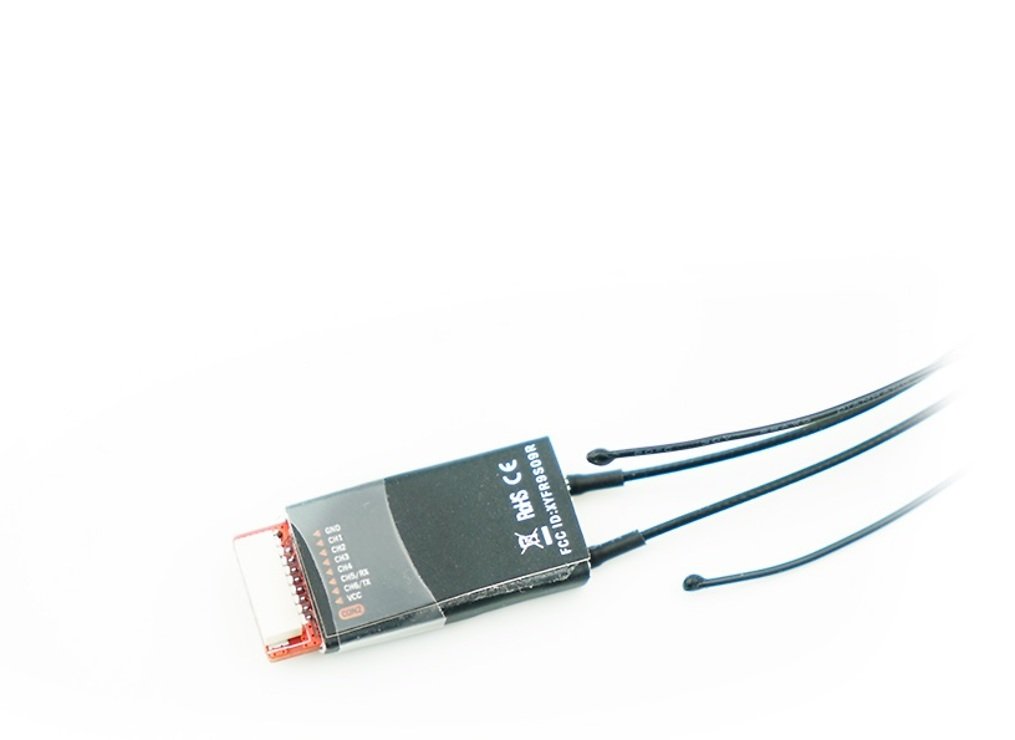

FrSky R9 Slim+ receiver for R9M and R9M Lite Long Range

The R9 Slim plus is the second receiver in the R9 series from the popular manufacturer FrSky. It offers the user all the advantages of flying with a racecopter and with a wing compared to the normal R9 receiver. The model convinces even the most critical pilot with its extremely low latency and excellent precision. During installation, even on the smallest drone, the R9 Slim receiver scores particularly well due to its very compact design and its low weight of only 3.2 g. It also has the special redundancy function for additional safety of the precious quadrocopter and your model aircraft and delta-wing aircraft. The range exceeds expectations with up to 10 km transmission power. The perfect compatibility with all FrSky transmitters such as the Taranis X9D, Horus X12s, Horus X10, Horus x10s, Taranis QX7 and QX7S series is also convincing. The built-in Smart Port in the FrSky R9 Slim receiver for the Racecopter allows fast telemetry data transmission.

Technical Specifications

• Dimensions: 32 x 13.5 x 5 mm (L × W × H)
• Weight: 4.3 g
• Number of channels: with telemetry 6/8 and without telemetry 6/16
• RSSI output: analog 0 ~ 3.3 V
• Voltage range: DC 3.5 V ~ 10 V
• Current: 100 mA at 5 V
• Range: up to 10km or even more
• Update of the firmware including
• Compatibility: R9 series TX

Scope of delivery

• 1 x Frsky R9 Slim +
