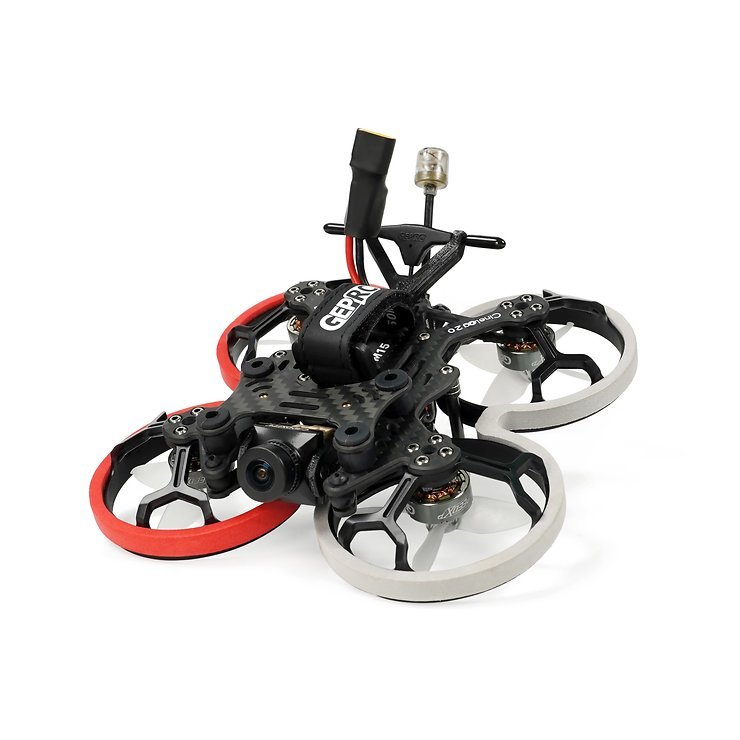

GEPRC CineLog20 Analog 4S Drone FPV PNP

GEPRC CineLog20 Analog 4S Drone FPV PNP

Product description

GEPRC CineLog20 – Kann der was? (Sub 250g)

GEPRC CineLog20 Analog 4S Drone FPV PNP

Features

• Designed to mount a shock-absorbing gimbal under the independent FPV camera to reduce the wobble of the FPV goggle image, with good anti-wobble effect.
• 2-inch pusher design, small size and light weight, more suitable for complex and narrow environments flight shooting.
• SPEEDX2 1303.5 5500KV motor with Emax four-blade propellers ensures smooth flight.
• Continuing the vibration damping structure of CineLog series, which can effectively eliminate the image shake caused by the body when flying with a mounted Naked GoPro.
• GEPRC team's excellent tuning and the overall flight feeling is delicate and flexible.

Specifications

• Model: CineLog20 Analog
• Frame: GEP-CL20
• Wheelbase: 100mm
• Gimbal plate: 2.0mm
• Upper plate: 2,5 mm
• Lower plate: 1,5 mm
• FC System: GEP-F411-35A AIO
• MCU: STM32F411CEU6
• Gyro: ICM 42688-P
• OSD: Betaflight OSD w/AT7456E chip
• ESC: 8Bit 35A
• VTX: GEPRC 5.8G@600mw
• Camera: Caddx Ratel2
• Antenna: GEPRC Peano 5.8G RHCP MMCX
• Motor: GR1303.5 5500KV
• Propeller: EMAX Avan Micro 2×2.4×4
• CineLog20 Analog TBSNanoRX Weight: 116g
• Receiver: PNP (without receiver)
• Recommended battery: LiHv 4S 450mAh-660mAh (not included)
• Flight time:4-6min

Contents

• 1 x CineLog20 Analog
• 2 x 2 inch propellers (pairs)
• 1 x Naked GoPro Base
• 2 x M15*150mm battery strap
• 2 x Battery Silicone Pads
• 2 x EVA landing pads
• 1 x Set of screws
• 1 x L-shaped screwdriver (1.5mm)
• 1 x Antenna fixed tube
• 1 x 4S Naked GoPro power cable (with balanced connection head)
• 2 x EVA shock absorber rings of the protectors
• 1 x TBS antenna mount (vertical type)
• 1 x TBS antenna mount (horizontal type)
• 1 x TBS antenna printed parts
• Screw package contains:
• 3 x M2*12mm flat head screws
• 2 x M2*5mm round head screws
• 1 x M2*8mm round head screw with washer
• 3 x M2*7mm round head screws
• 2 x M2*8mm round head screws
• 2 x M2 iron nuts
• 1 x self-locking nut
