Product description

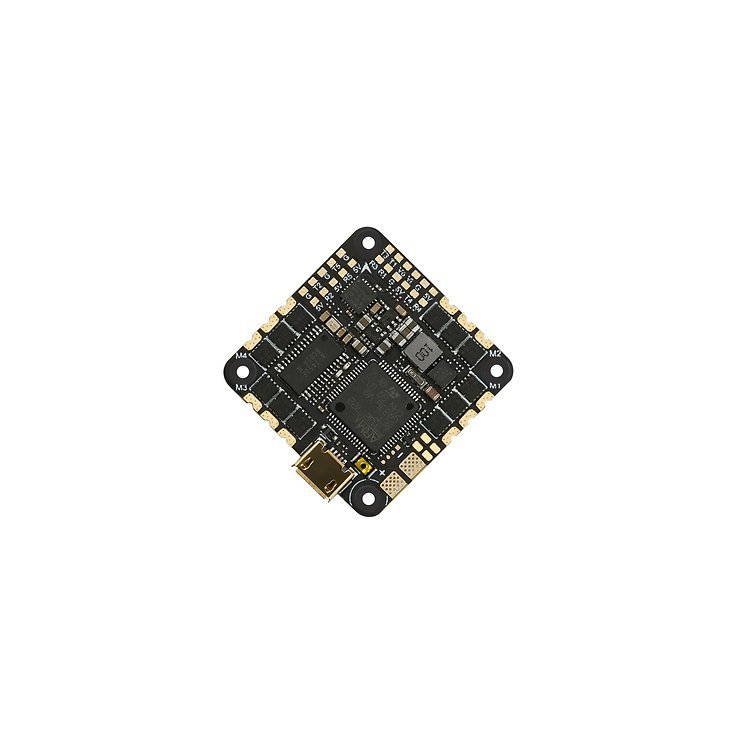

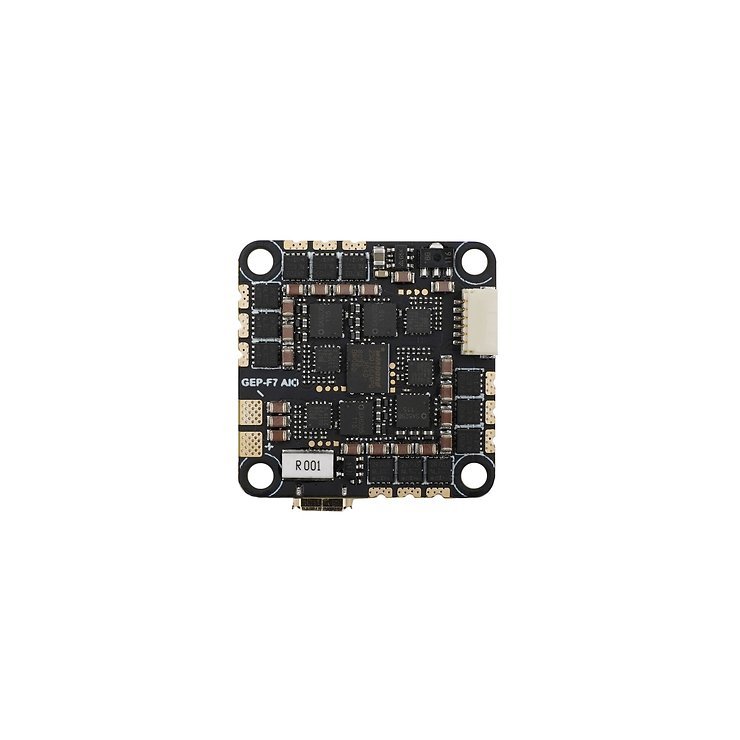

GEPRC F722 35A FPV ESC AIO

I am pleased to introduce a new member of GEPRC FC AIO, GEP-F7-35A, which has been launched now.

GEP-F7-35A adopts MCU STM32F722, which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

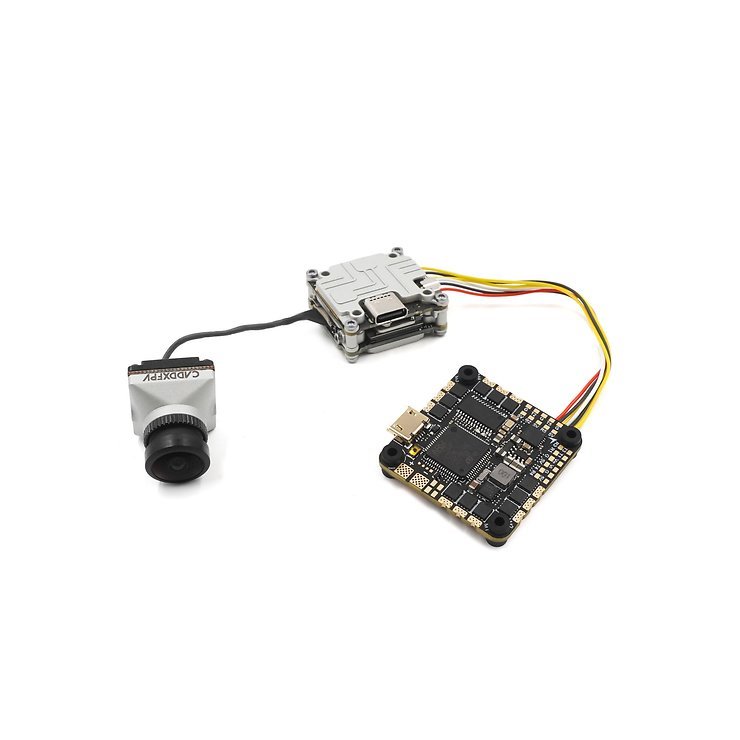

We designed a 6-pin connector for DJI AIR UNIT MODULE, just plug in and go.

The BLheili_S 35A ESC can provide 35A continuous current (40A burst), support the 2-6S lipo battery, brings the drone a stronger flight performance.Support OSD parameter setting, buzzer led and other functions. It has ultra-light weight of 8.8g and 25.5mm * 25.5mm mounting hole, suitable for most of the frames in the market.

We pursue lighter weight, smaller volume, more functions and better performance of FC.

Specification

• Model name:GEP-F722-35A AIO
• MCU:STM32F722
• IMU:BMI270/42688 gyro/accelerometer(SPI)
• Target Firmware:GEPRC_F722_AIO
• OSD:Betaflight OSD with AT7456Ev
• UART ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
• Beeper:YES
• LED:YES
• USB:Micro USB
• BEC output:5V@1A
• Integrated LC filter
• ESC MCU:8BB21F16G
• Continuous current:35A
• MAX current:40A (10s)
• Input:2~6S
• Supports:Dshot600,Oneshot,Multishot
• BlackBox:16Mb
• Recording:G_H_30
• Size:32x32mm plate
• Mounting hole:25.5×25.5mm

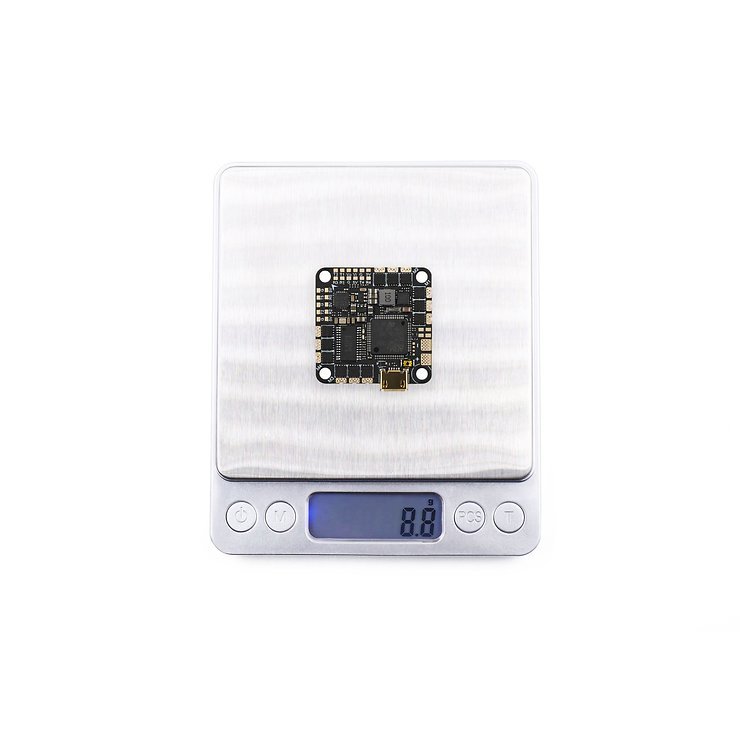

• Weight:8.8g

Features

• MCU: STM32F722, with strong performance and higher computing speed.
• It has 5 full UART ports, connecting more external devices
• 3Design 6p connector for DJI AIR UNIT MODULE and plug and play only.
• BLheili_S 35A ESC can handle 35A continuous current (40A burst), fully supports 2-6S lipo battery, brings stronger flight performance to the drone.
• Support OSD parameter setting, buzzer and other functions.
• 8.8g ultra light weight
• 25.5mm * 25.5mm mounting hole, suitable for most frames

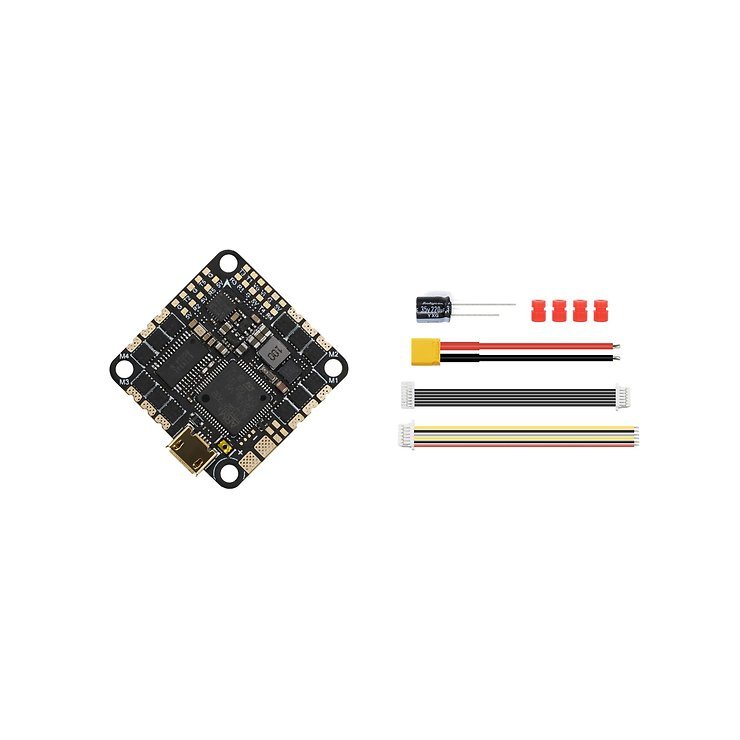

Contents

• 1 x GEP-F7-35A AIO
• 1 x XT30-7CM-18AWG power cable
• 1 x 35V220UF capacitor
• 1 x SH1.0-6pin to GH1.25-8pin cable
• 8 x M2*6.5mm damping rings
