GEPRC SpeedX2 1303.5 5500KV FPV Motor

GEPRC SpeedX2 1303.5 5500KV FPV Motor

Product description

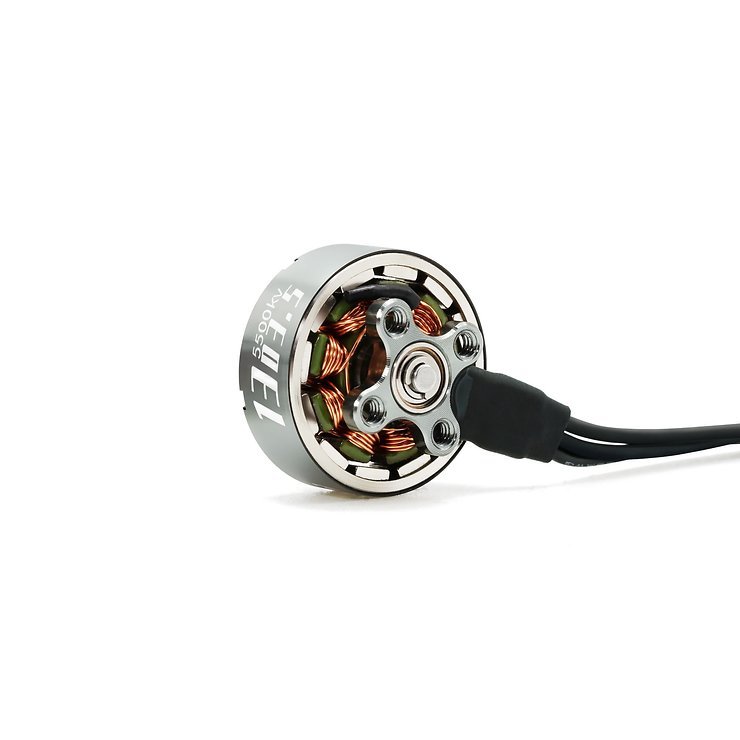

The SPEEDX2 1303.5 motor is an innovative brushless motor featuring a lightweight design, a unique appearance, and effective heat dissipation.

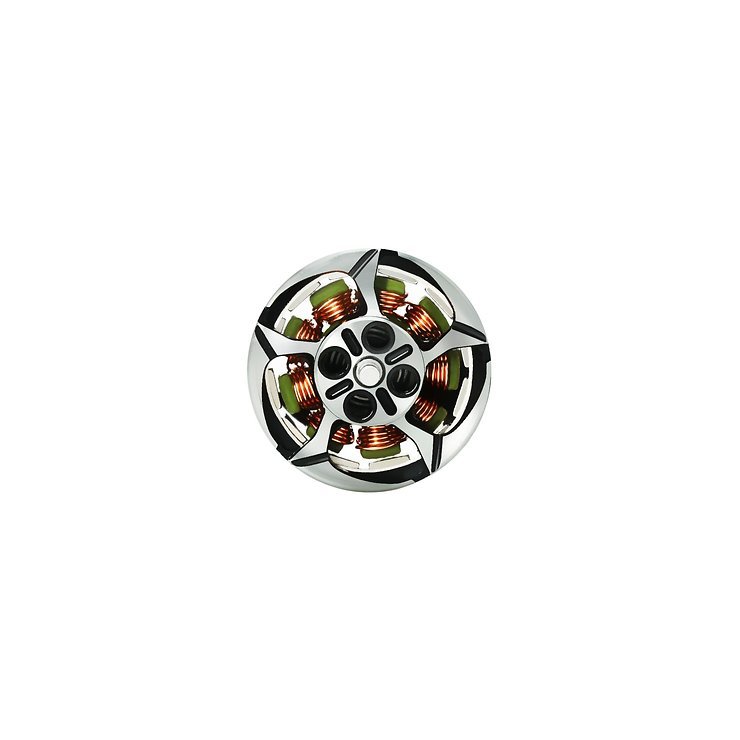

It features a lightweight structure, weighing just 6.5 g (with a 90 mm cable length). The outer rotor features a blade design that is both exquisite and impressive. The raised propeller platform offers better compatibility with reverse-mounted propeller models and prevents contact between high-pitch propellers and the top of the rotor, which can cause propeller imbalance. To reduce weight, a large area has been hollowed out to achieve good heat dissipation and efficiency, effectively controlling the motor’s operating temperature.

The SPEEDX2 1303.5 motor is made of high-quality 7075-T aircraft-grade aluminum, which gives the rotor greater strength. The well-designed magnetic circuit, with stable linearity and efficient explosive power, provides pilots with a super-smooth flying experience. Perfect for pilots looking to build their own 2″ cinewhoop FPV drones.

Specifications

• Model: SPEEDX2 1303.5-5500KV
• Configuration: 9N12P
• Magnet: N52H ARC
• Stator Diameter: 13 mm
• Stator height: 3.5 mm
• Shaft diameter: Φ2 mm (inner) × 1.5 mm (outer)

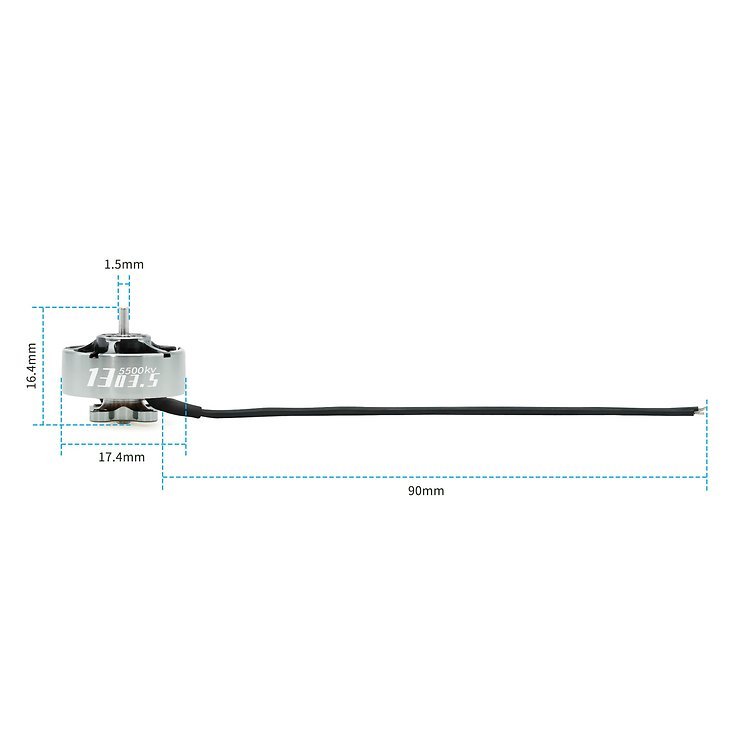

• Dimensions: Φ17.35 mm × 11.7 mm
• Wires: 28 AWG, 90 mm
• Rated voltage (LiPo): 2–4S
• Maximum power: 128.8 W
• Maximum current: 8.7 A
• Recommended ESC: 35A
• Mounting hole: 9 mm x 9 mm (M2)
• Color: titanium

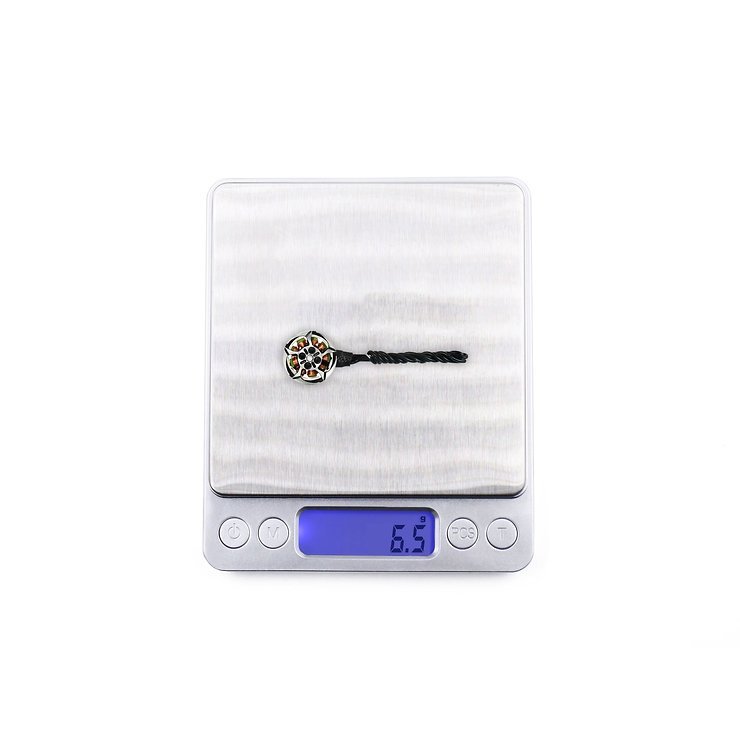

• Weight: 6.5 g (90 mm cable length)
• Compatible models: 2-inch drones with propeller guards or 2.5-inch freestyle drones

Features

• 1. The one-piece, high-strength 7075 aircraft-grade aluminum housing makes the motor more durable and impact-resistant.
• 2. The compact size and lightweight design make flight easier. The weight, including the cable, is only 6.5 g (90 mm cable length), making it suitable for building a 2-inch drone with propeller guards.
• 3. The large, hollow rotor design features a wide air intake and effective temperature control, allowing the motor to run more stably.
• 4. N52H high-performance magnets, combined with a low-internal-loss stator, significantly improve efficiency, resulting in longer endurance.
• 5. The 1.5 mm shaft is generally compatible with standard 2–2.5-inch propellers available on the market.
