GEPRC Mark4 HD5 GPS 6S FPV Copter PNP

GEPRC Mark4 HD5 GPS 6S FPV Copter PNP

Product description

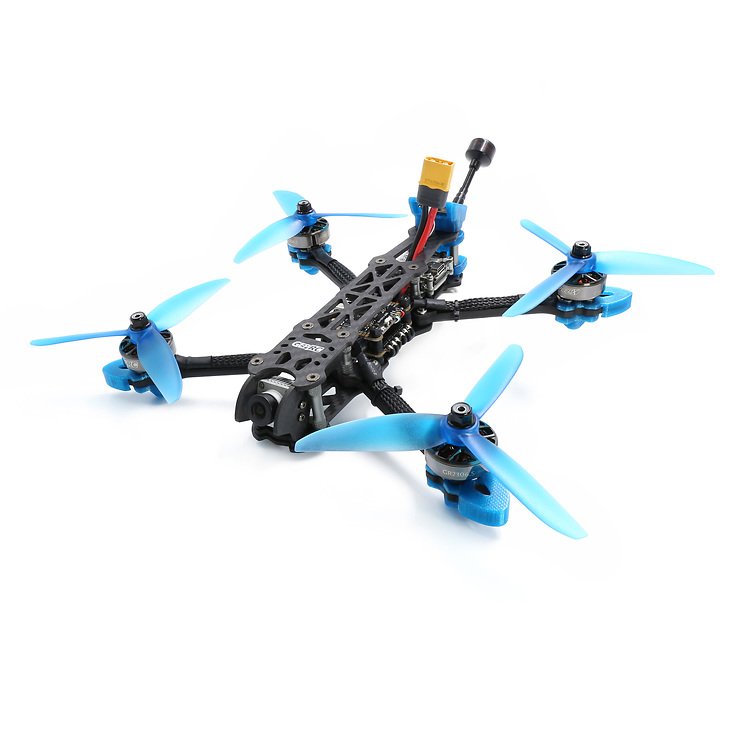

GEPRC Mark4 HD5 GPS 6S FPV Copter PNP

MARK4 HD5 is a newly developed DJI FPV HD quadcopter.DJI has redefined the drone racing industry with the new digital FPV system. It offers lower latency within 28ms, maximum transmission range of 4km, stunning HD resolution of 720p/120fps and most importantly, an unforgettable FPV flying experience.

Technical Data Frame

• 3K Carbon Fiber
• Motor to motor: 224mm
• Size: 138x176mm
• FC mounting holes: 30.5x30.5mm / 20x20mm
• Arm thickness: 5mm
• Top plate : 2.5mm
• Bottom plate : 2.5mm
• Camera plate: 2mm

Technical data FC

• MCU: STM32F722RET6
• IMU: 2x ICM20689(SPI)
• Build-In: Bluetooth Wireless Adapter (SpeedyBee APP)
• BlackBox: 32Mb onboard Flash
• OSD: BetaFlight OSD w/ AT7456E chip
• Baro:BMP280
• BEC Output: 5V@2A / 9V@2A
• Integrated LC Filter
• Firmware target: EXF722DUAL
• Size: 36x36mm board, 4mm diameter with 3mm rubber
• Battery: 3-6S LiPo
• 5x UARTs
• 8x motor outputs

Technical data ESC

• MCU: STM32FO51K86(32bit 48mHz)
• Continuous current: 50A
• Burst current: 55A (5S)
• Voltage sensor: Yes
• Telemetry: Supported
• Support: DSHOT1200 / DSHOT600, PWM, Multishot, OneShot
• Firmware Version: GEPRC-BL32-4IN1
• Battery: 3-6S Lipo

Receiver

• Caddx Vista (DJI FPV)

Content

• GEPRC Mark4 HD5 GPS 6S FPV Copter PNP
