Product description

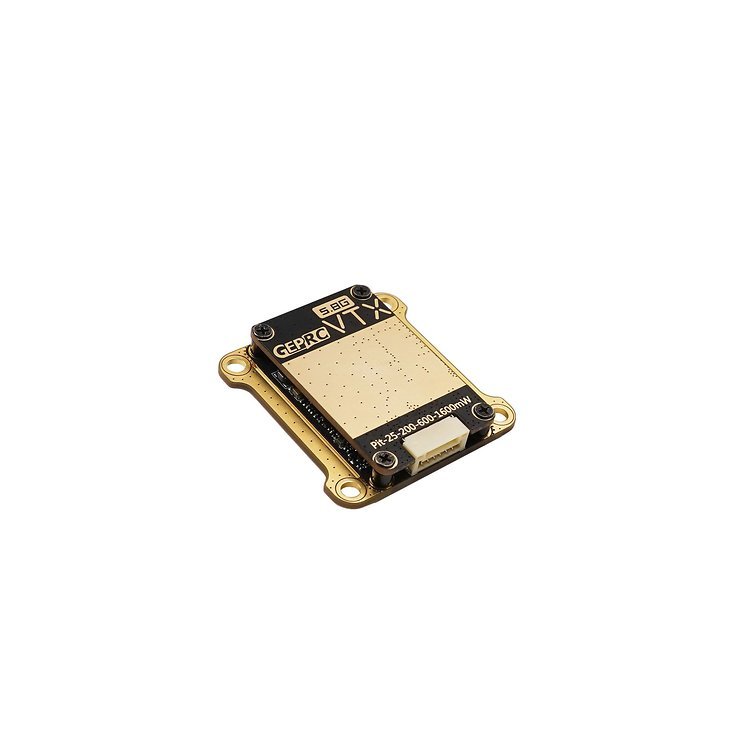

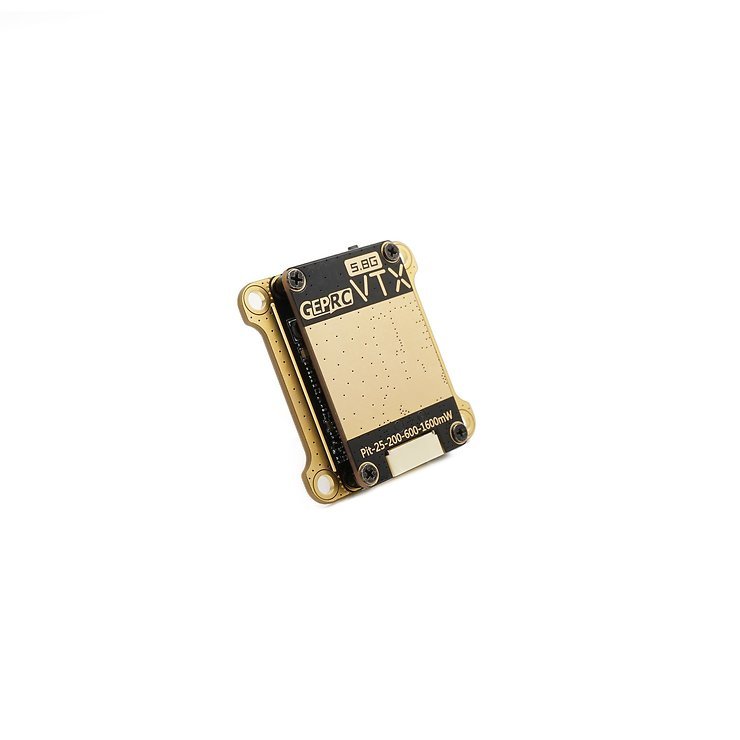

GEPRC RAD VTX 5.8G FPV 1.6W

It is a super power VTX with a maximum power of 1600MW and five adjustable gears: Pit/25mW/200mW/600mW/1600mW. The RAD uses double-layer PCB design to separate the power supply from the motherboard, which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board, supports 7-36V voltage (2-8S battery) input, uses the mainstream MMCX connector, and the mounting hole is 30.5×30.5mm.

Feature:

• 1600mW super power, suitable for long distance flight with good stability.

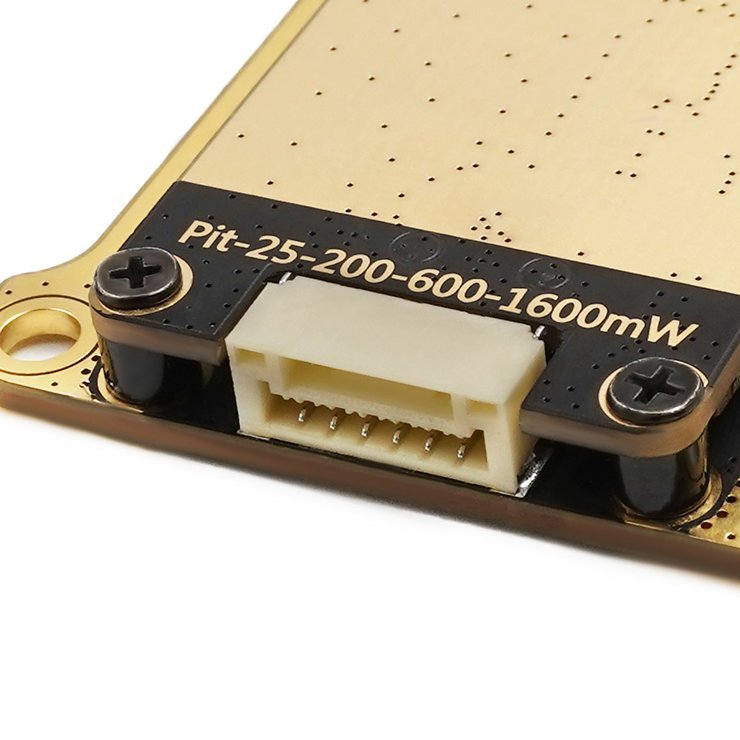

• Five power channels: PIT mode/25mW/200mW/600mW/1600mW.
• Two-layer board cooling structure, separate power BEC and main board, reduction and shielding from the internal interference.
• Temperature control protection function, which can prevent burning at high temperature
• Wide voltage input, Support 7V-36V voltage input.
• VTX control protocol is IRC Tramp, support OSD parameter setting.
• VTX built in microphone, real-time transmission of drone's sounds.
• Has 3 regional frequency tables to meet the needs of different regions.
• Two function buttons, three indicator lights, easy to control.
• Mounting hole is 30.5mmx30.5mm.

Specifications:

• Model: GEPRC RAD VTX 5.8G 1.6W
• Input voltage: DC 7-36V(2-8S battery)
• Output: 5V@600mA(power supply 5V to camera)
• Input impedance: 75Ω
• Protocol: IRC Tramp
• Antenna interface: MMCX
• Output power: PIT-MODE/25mW/200mW/600mW/1600mW PIT-MODE
• Frequency Tables: Universal frequency table (40CH), American FCC frequency table (37CH), European EU frequency table (26CH)
• Video format: PAL / NTSC
• Microphone: Built-in microphone
• Size: 36×36.5×5.5mm
• Weight: 9.7g(without cable)
• Mounting hole: 30X30mm(M3)

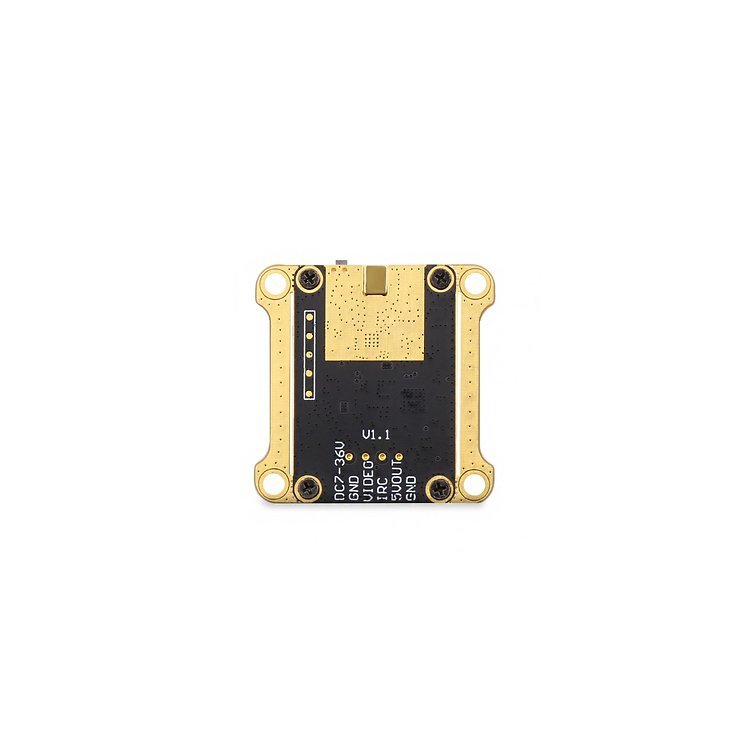

Connection definition description:

• DC 7-36V: Input 2-8s battery voltage
• GND: Common ground cable
• Video: Connection to the video output of the FC or the camera
• IRC: Connection to the UART transmit port of the FC
• 5V OUT: 5V output voltage for the camera
• GND: Common ground cable

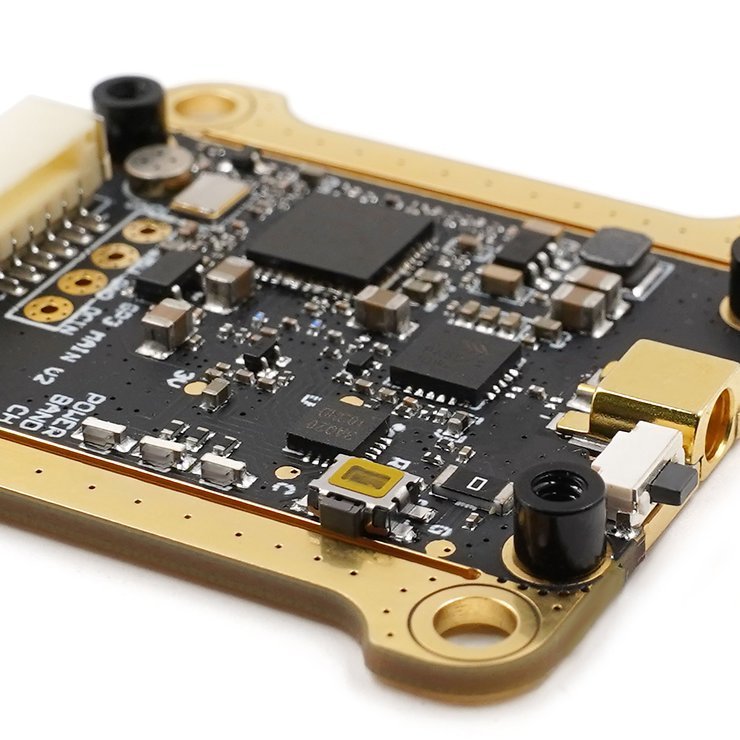

Description of the buttons and the indicator light:

• Two function buttons are in parallel in the VTX circuit, and the operation and function are the same
• Blue light: Ch indicator
• Green light: Band indicator
• Red light: operation indicator

Contents

• 1 x GEPRC RAD VTX 5G8 1.6W
• 1 x 72mm MMCX copper tube antenna
• 1 x GH 1.25*6P 150mm connection cable
• 1 x MMCX to SMA（Internal Foramen） connector
• 1 x Matching screw package.
