GEPRC Tiny Whoop Taker F411 8Bit 12A AIO

GEPRC Tiny Whoop Taker F411 8Bit 12A AIO

Product description

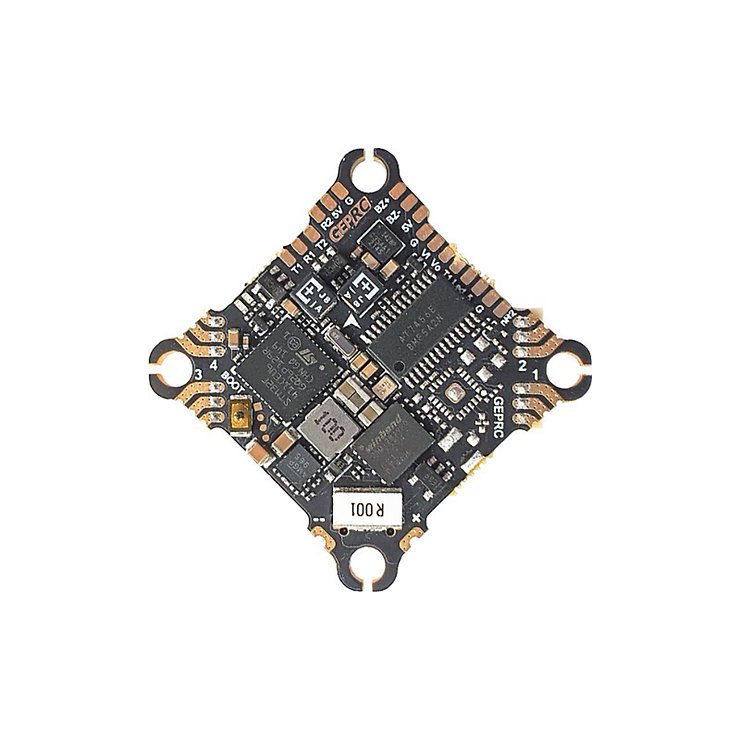

GEPRC Tiny Whoop Taker F411 8Bit 12A AIO

The perfect addition to your mini FPV adventure! Weighing only 7 grams, the integrated AIO board is lighter and improves the overall feel of small FPV drones.

The TAKER F411 8Bit 12A AIO uses the ICM-42688-P gyroscope for precise and smooth control, handling both racing and freestyle flying with ease. The ESC supports up to 12A and allows the use of 2-4S batteries for even more power. The integrated black box with 16MB of flash memory allows pilots to conveniently adjust parameters.

Specifications

• Model: TAKER F411 8Bit 12A AIO (without receiver)
• MCU: STM32F411
• IMU: ICM42688P
• Firmware-Ziel: GEPRC_F411_SX1280
• OSD: BetaFlight OSD with AT7456E chip
• UART ports: R1 T1 \ R2 T2
• Reverse port: NR2
• Buzzer: Yes
• LED: Yes
• USB port: Micro-USB
• ESC-MCU: BB21F16G
• Black box: 16 MB flash memory on board
• Continuous current: 12A
• Peak current: 13A
• Input: 2-4S
• ESC protocol: Dshot300, Oneshot, Multishot
• Current counter: 210
• ESC firmware: G-H-30 - Bluejay, 0.16, 48 kHz
• Size: 31.2 × 31.2 mm
• Mounting holes: 25.5 mm × 25.5 mm, M2 hole
• Weight: 7 g

Features

1. Bluejay 12A ESC supports 2-4S batteries, continuous current 12A, peak current 13A, integrated ammeter.

2. Uses STM32F411 FC for stable flight control.

3. Uses IMU: ICM42688P gyroscope with 8K sampling rate.

4. Supports buzzer and LED light functions.

5. With 25.5 mm × 25.5 mm mounting holes
