Hobbywing Xrotor 4in1 FPV Combo 40A Controller and Flight Controller

The article is no longer available.
  • 94,90 € *

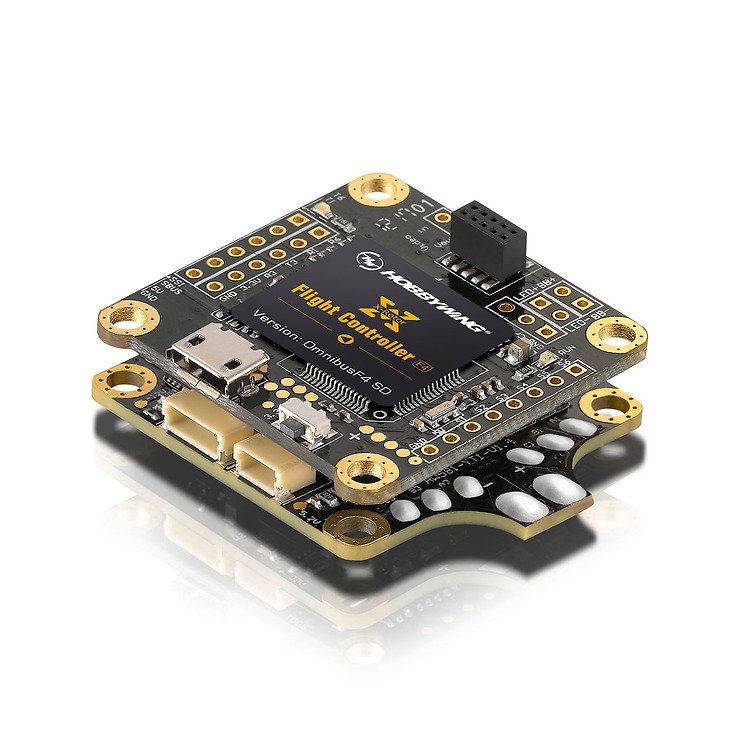

Hobbywing Xrotor 4in1 FPV Combo 40A Controller and Flight Controller

Product description

Hobbywing Xrotor 4in1 FPV Combo 4in1 40A Controller and Flight Controller

Hobbywing Xrotor 4in1 ESC

The Hobbywing Xrotor 4in1 FPV Combo includes 40A controls and a Hobbywing Flightcontroller. Powerful 40 ESCs with integrated BEC were installed on a compact board. The fast wiring of the 4in1 controller and the flight controller allows a fast exchange of different components in the competition. The compact design also allows a build in small FPV Racecopter. Current Sensor allows controller measurement and display of current and voltage in real time.

EMF8BB21F16G MCUs work in the highest efficiency with up to 48MHz.

In addition to the PWM mode, the 4-in1 controller also supports the well-known communication protocols Oneshot125 / Oneshot42 / Multishot and DShot150 / 300/600 modes, which offer the fastest control response and the best anti-interference performance. Hardware-assisted Generated PWM and Damped Light Mode result quiet engine running and with regenerative braking operation one achieves a very fast and effective deceleration of the engines.

Specifications Hobbywing 4in1 controller

  • Firmware: BLHeli-S AH-50 16.5
  • Current Duration / Short: 40A x 4 / 50A x 4
  • Number of cells: 2-5S LiPo
  • BEC: 5V / 1.5A
  • Use: 130-280mm FPVs
  • Modes: PWM, Oneshot125, Oneshot42, Multishot, Dshot 150/300/600
  • Dimensions: 45.6 x 36 x 4mm
  • Weight: 10 gr.

Hobbywing Flight Controller

The Hobbywing Flight Controller has a STM32F405 MCU. Due to the high computing power of the MCU, the flight controller is able to operate gyro and PIDs with a higher frequency, which enables faster control and conversion of control commands. This flight controller is compatible with the most common receivers and protocols.

Technical Data Hobbywing Flight Controller

  • Firmware: OmnibusF4SD
  • Programming: Betaflight / Cleanflight / Butterflight
  • USB: Micro USB
  • Use: quad / hexacopter
  • Compatible modes: PWM, Oneshot125, Oneshot42, Multishot, Dshot 150/300/600
  • Compatible remote control systems: SBUS, SUMH, SUMD, XBUS, PPM 1024/2048 spectrum
  • Dimensions: 35 x 35mm
  • Weight: 6 gr.
Order number RTC-HW38040016
EAN 6938994418157
Manufacturer Hobbywing
