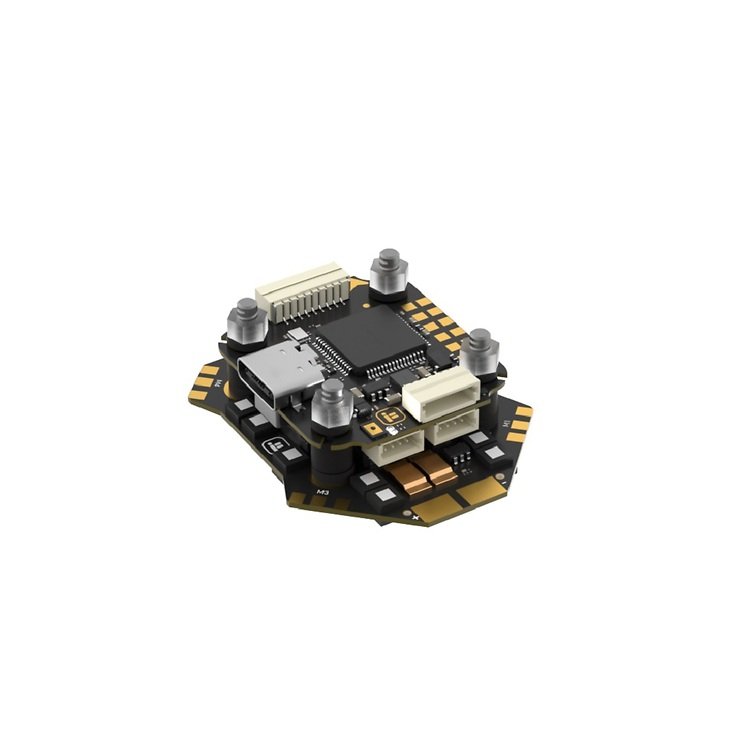

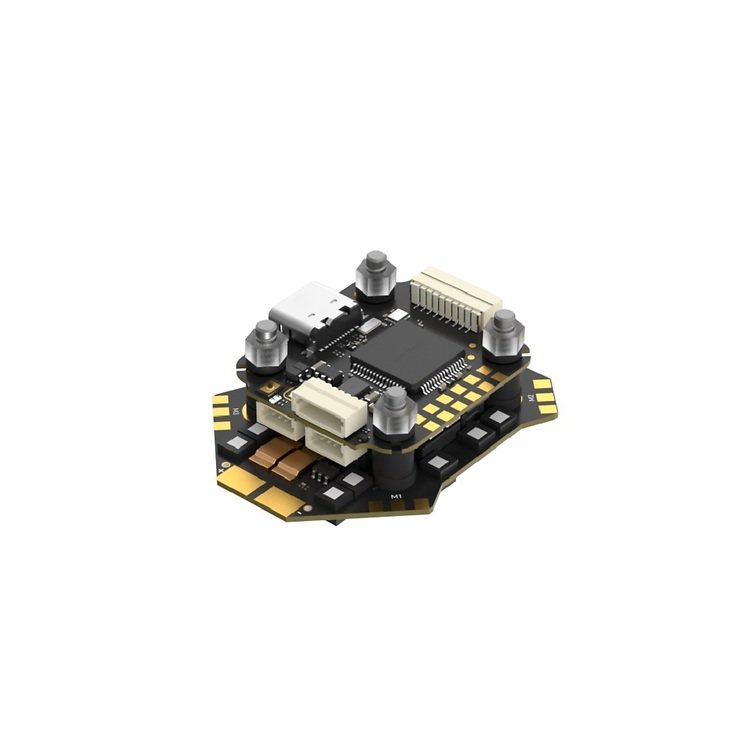

Borg F7 Mini Stack (Borg 60 Mini 4-IN-1 ESC)

Product description

Discover the new Borg Series - where performance meets precision!
The Borg F7 Mini Flight Controller has been specially developed for FPV racing and delivers absolute top performance in the smallest of spaces. With its state-of-the-art electronics, reliable connections and innovative features, it sets new standards in the racing sector.

With support for 4S to 8S batteries, an integrated 12V BEC with remote VTX control and powerful sensors, the Borg F7 Mini is the perfect choice for racers who don't want to compromise.

Highlights

Support for 4S-8S (flight controller) and 2S-6S (ESC)
60A ESC with BLHeli_32 firmware and telemetry
32MB black box flash for flight data storage
Remote controllable VTX power supply via FC
Compatible with DJI, Smartaudio, IRC Tramp and HDZero
Supports Betaflight and INAV

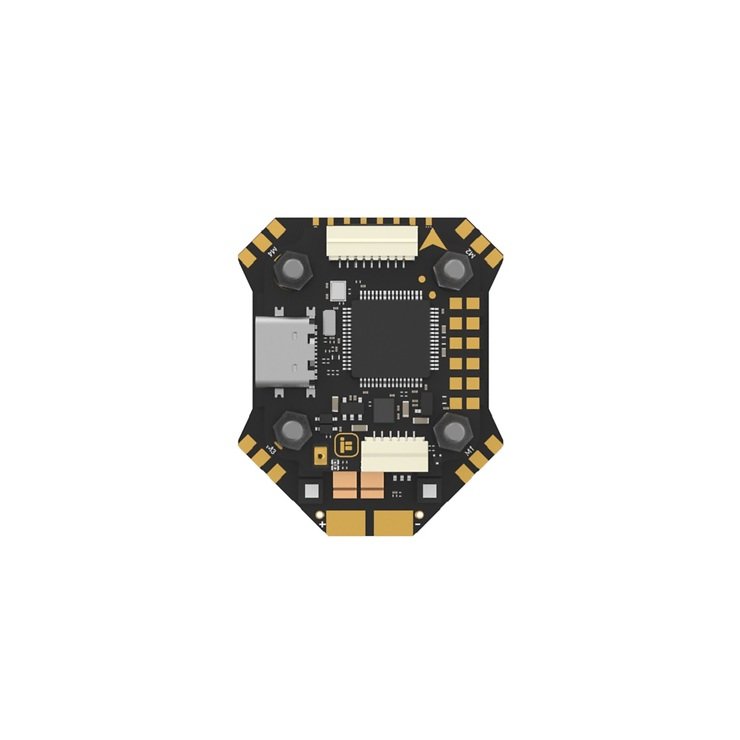

Flight Controller - Technical data (Borg F7 Mini FC)

Input voltage: 4S-8S LiPo (incl. LIHV)
MCU: STM32F722RET6
Gyro: ICM42688
Barometer: SPA06-003
OSD chip: AT7456E (LGA)
Flash memory: 32MB Blackbox
UART connections: 6
Motor outputs: 4
I2C interface: Not supported
VTX protocols: DJI MSP, Smartaudio, IRC Tramp, HDZero
LED controller: Yes
Beep pad: Yes
BEC outputs: 5V 2.5A, 12V 2A (12V with VTX switching function)
Firmware compatibility: Betaflight & INAV (IFLIGHT_BLITZ_F722)

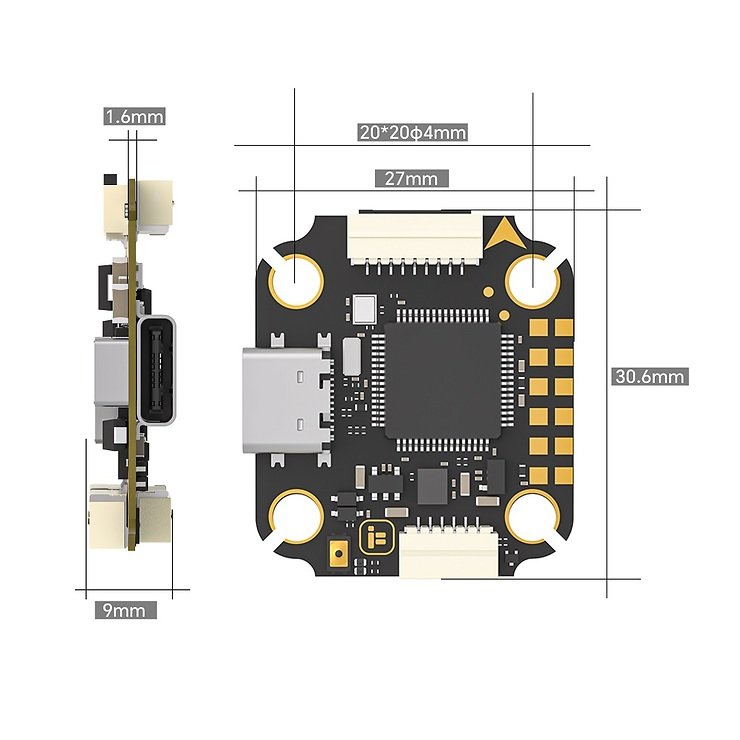

Mounting pattern: 20x20 mm (hole diameter 4 mm)
Dimensions: 27 x 30.6 mm ±1
Weight: 6.8 g ±1

Recommended UART assignment

UART 1 - VTX HD or analog
UART 2 - Receiver
UART 3 to 5 - GPS or other sensors
UART 6 - ESC telemetry

ESC - Technical data (Borg Mini 60A)

Input voltage: 2S-6S LiPo (incl. LIHV)
Maximum continuous current: 60A
Maximum peak current: 65A (10 seconds)
MCU: STM32G071N
Driver chip: FD6288
Firmware: BLHeli_32 Version 32.9
Firmware target: IFLIGHT_BLITZ_G3 32.9
Current sensor: Yes
Telemetry: Supported
Bidirectional DSHOT: Supported
BEC: Not available
Supported protocols: DShot150/300/600, MultiShot, OneShot etc.

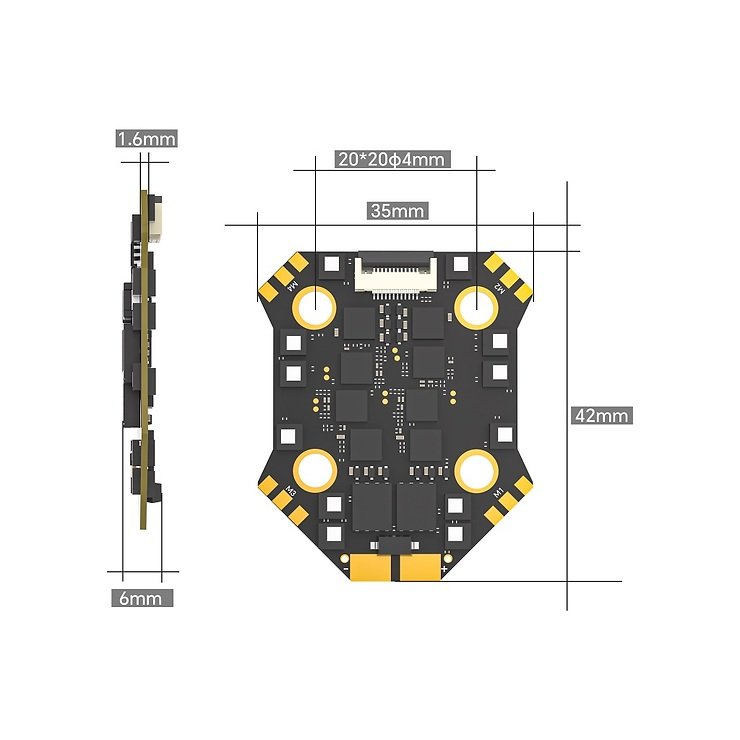

Dimensions: 42 x 35 mm ±1
Mounting pattern: 20 x 20 mm / hole diameter 4 mm
Weight: 9.8 g ±1

scope of delivery	1 x Borg F7 Mini Flight Controller 1 x Borg Mini 60 ESC 1 x Kabelsatz 5 x Silikon-Gummihalterungen (Grommets)
Order number	IFL-B018402
EAN	4262453768883
Manufacturer	iFlight
