Product description

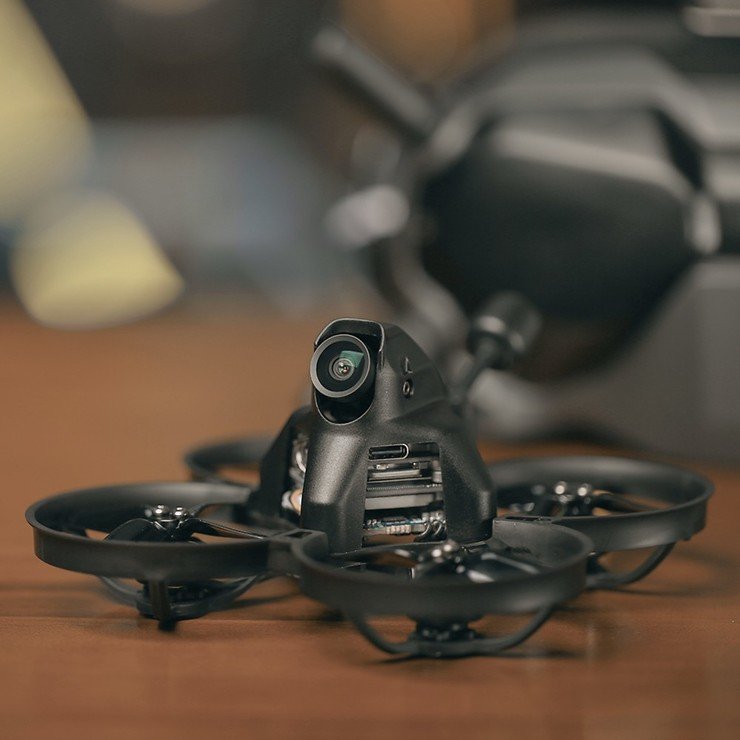

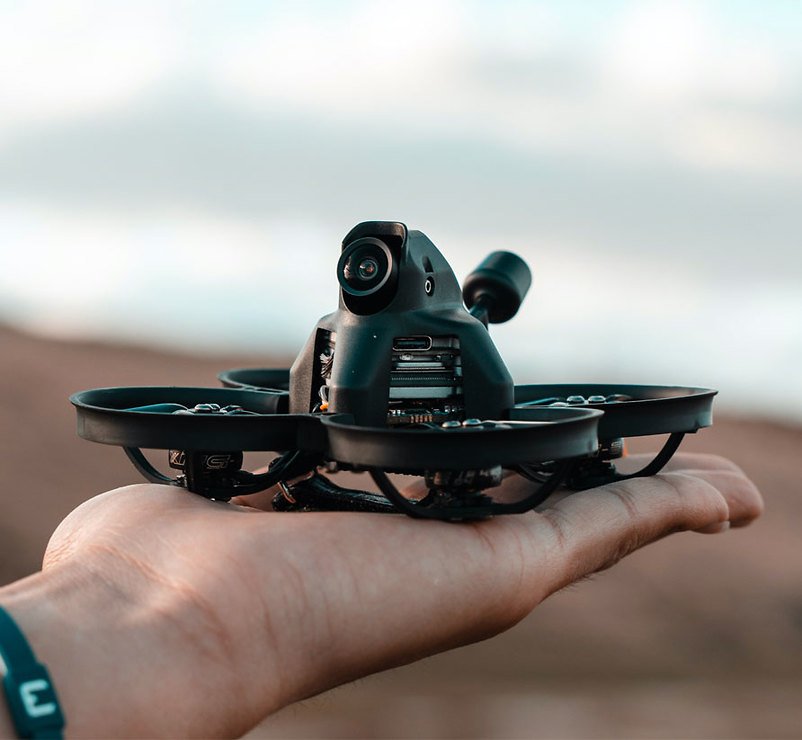

iFlight Alpha A85 HD Whoop Caddx Nebula Digital HD System FrSky R-XSR

Let's welcome the iFlight Alpha series, a new way to fly FPV. Have you always wanted to try Digital FPV on the smallest possible whoop-size quad? We attached the caddx Vista and the new caddx Nebula Cam to one of our new 2-inch whoop frames, made some adjustments and tried to find the optimal weight/performance ratio. This is what we came up with to combine the efficiency of flight time with sufficient power.

Technical data

• 84.5 grams (without battery)
• Butter-soft XING-E 1204 engines, more torque and efficiency with longer flight times compared to 1105 engines
• Propguards for protection
• Preset for calm, cinematic flying

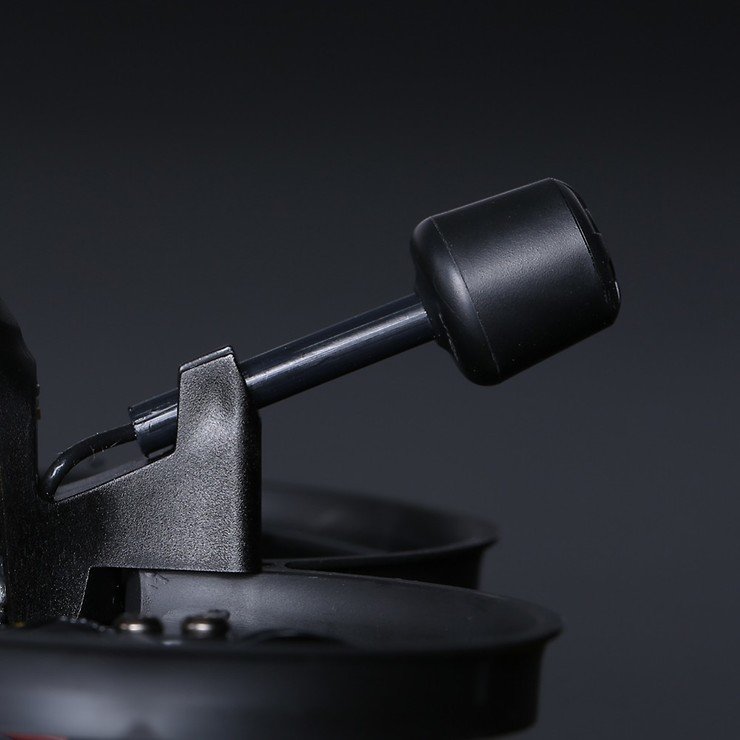

• iFlight Sigma light 5.8G antenna (included in delivery)
• iFlight Sigma 900mhz lightweight micro antenna (included in every Crossfire Nano RX)

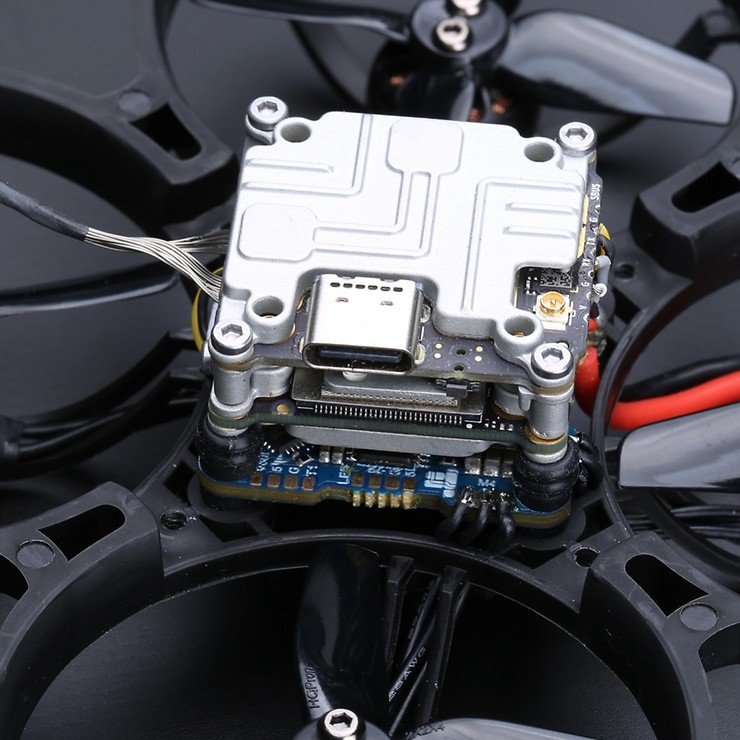

• SucceX-D 20A Whoop F4 AIO FC ESC Board
• XING-E 1204 FPV Micro Motor

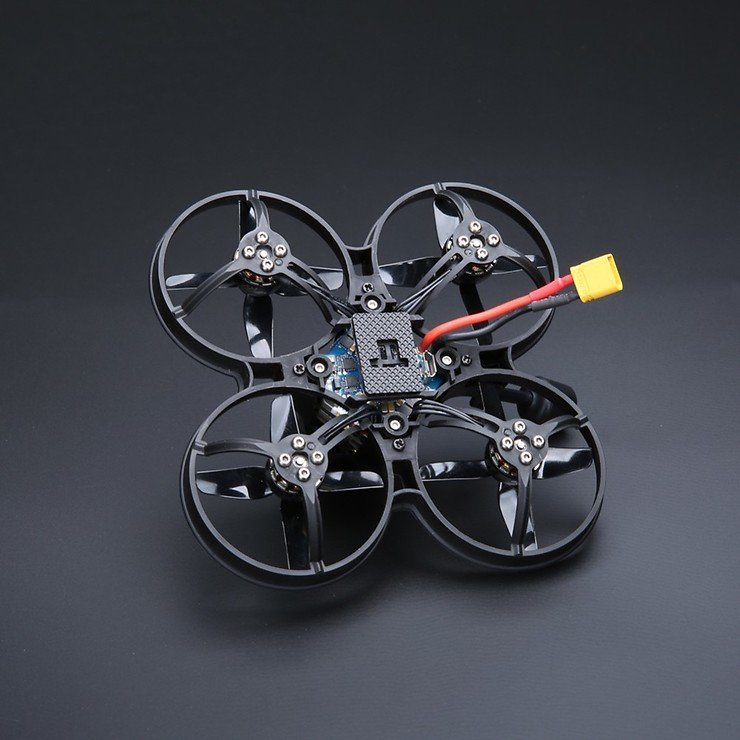

• Frame size: 85mm motor to motor

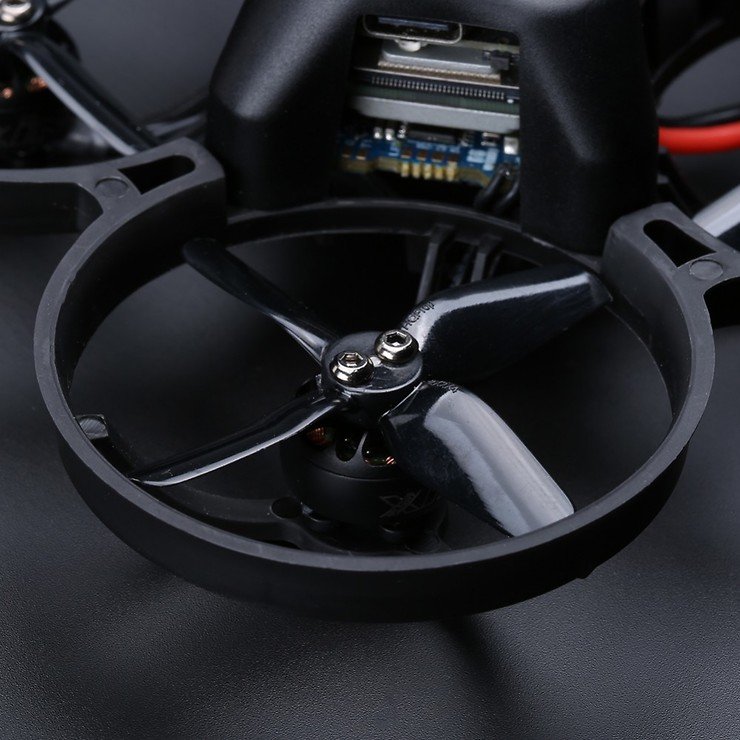

• Ducted propeller: 2 inch
• FC Size: 25.5 x 25.5mm

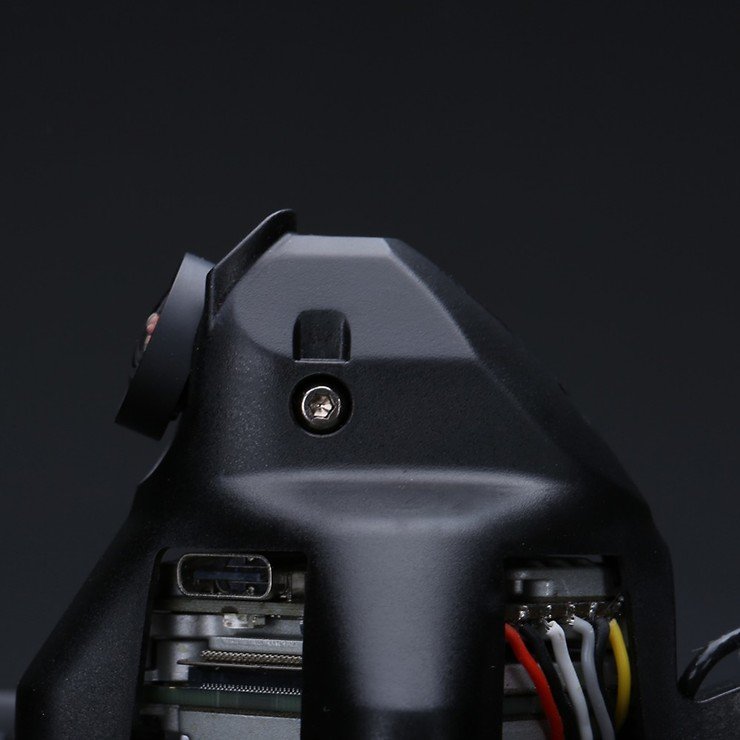

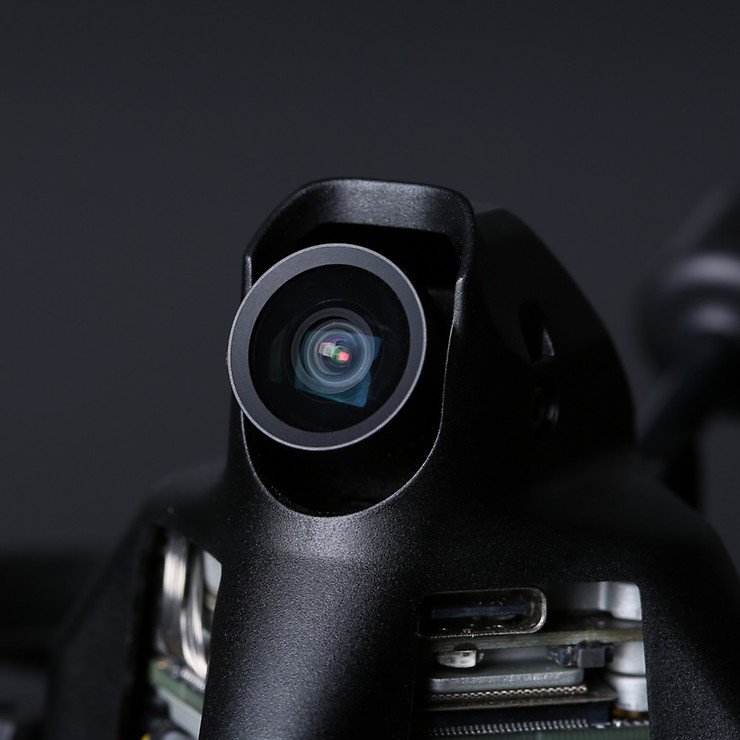

• FPV camera size: 14mm (Caddx Nebula)

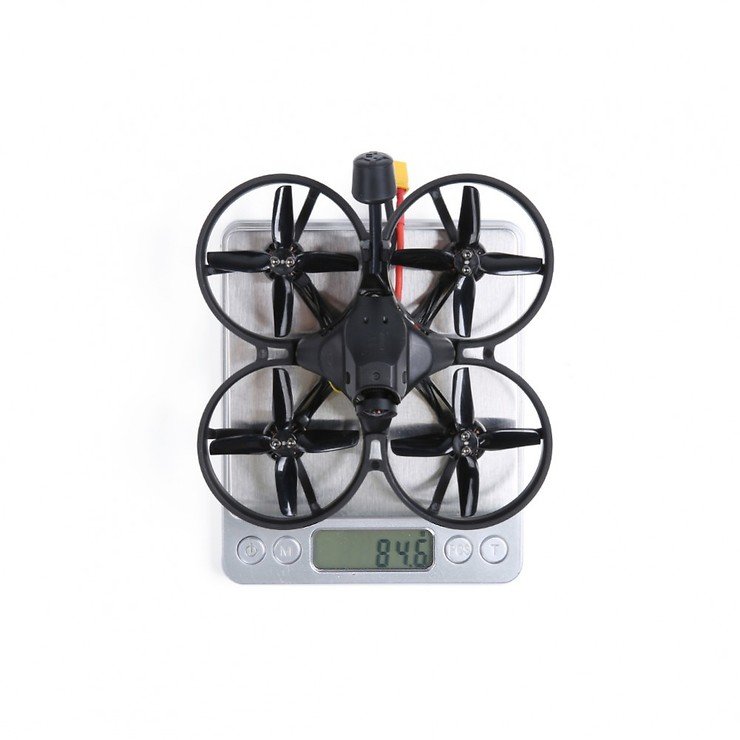

• Weight: 84.5g (without battery)
• Flight time: 5-7 minutes cruising (4S 450mAh)

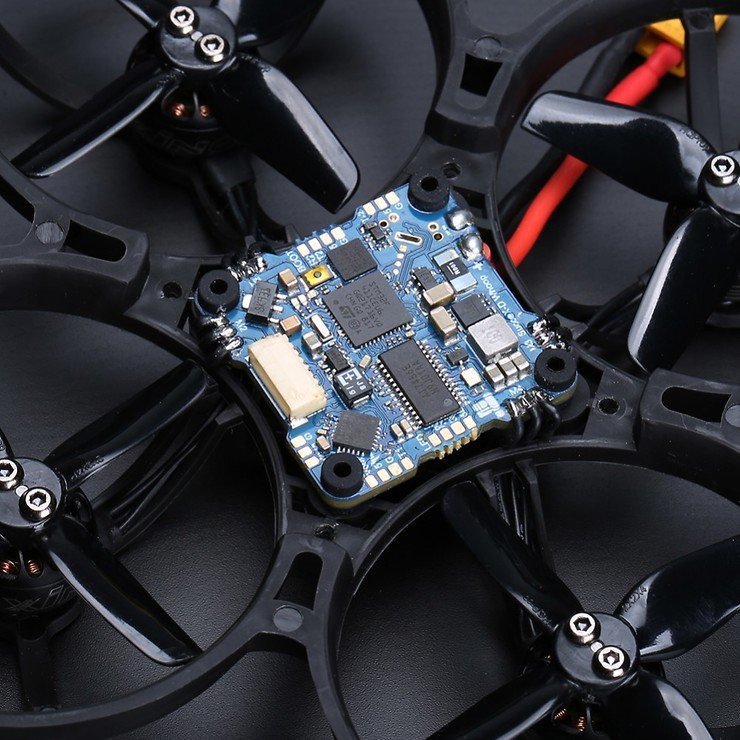

FC SucceX-D 20A F4 Whoop AIO Data

• Size: 30.5x30.5mm (Whoop size)
• Mounting pattern: 25,5x25,5mm / M3
• Connection: Micro-USB
• MCU: STM32F411
• Gyro: MPU6000
• Black box: 8MB
• BEC output: 5V 2A / 10V 2A
• INA pad: UART2 (nR2)
• Barometer：Nein
• Dauerstrom：20A，25A（Burst）
• Battery: 2-5S
• Current sensor: Yes
• BLHeli: BLHeli-S
• ESC Telemetry: no (only with JESC)
• Target: IFLIGHT_F411_PRO
• ESC Firmware: G-H-30 BLS

Recommended parts

• DJI HD FPV Glasses
• Radio remote control with FrSky EU LBT transmitter
• 4S 450mAh LiPo battery

Content

• Pre-installed and adjusted Alpha A85 HD Copter
• Alpha 85mm Frame
• Caddx Nebula Digital HD System
• FrSky R-XSR EEU LBT receiver
• iFlight Sigma 5.8g light antenna
• 2x HQ 2 inch 4-blade set (One set consists of 2x CW and 2xCCW propellers - colour may vary)
• 1x iFlight Lipo Strap
