Product description

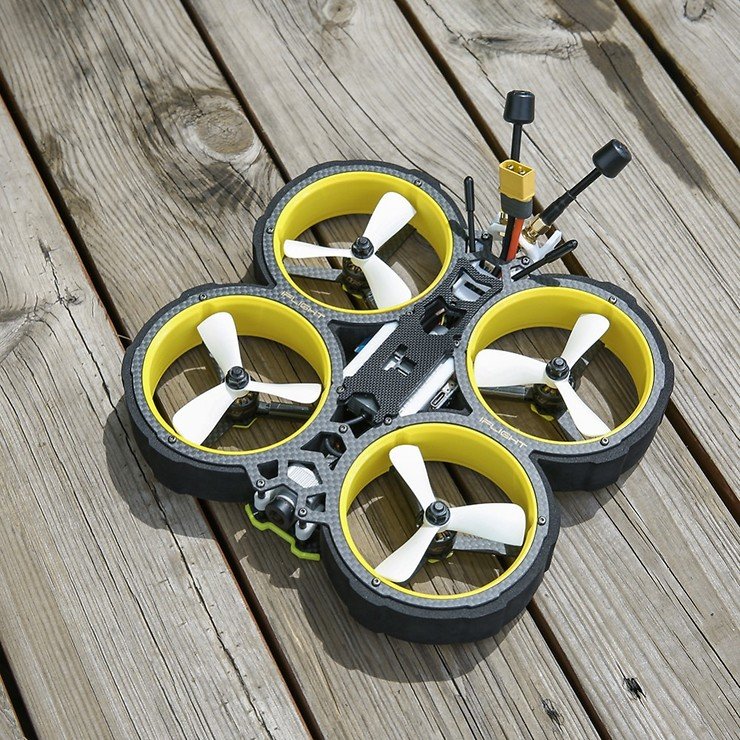

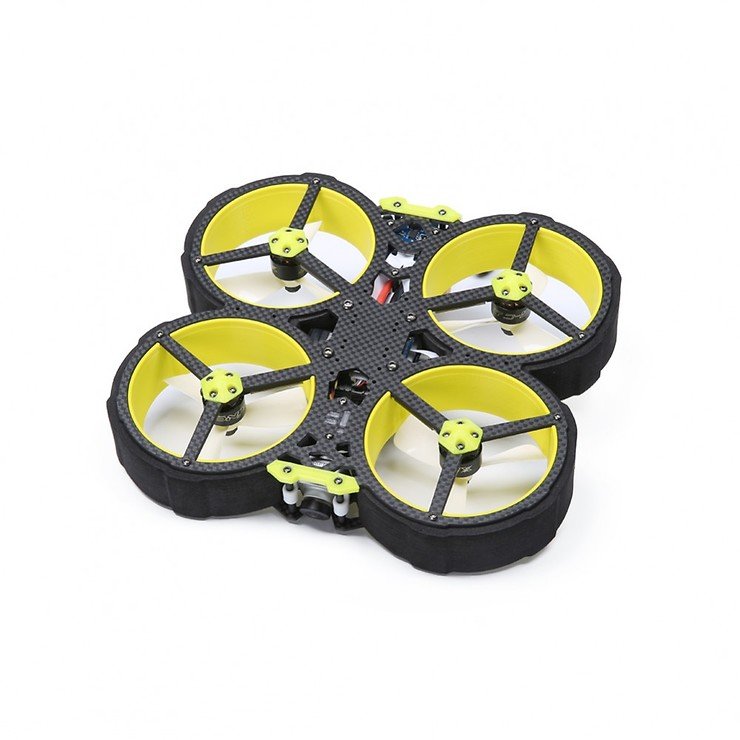

iFlight BumbleBee HD V2 FPV Cinewhoop 4S FrSky R-XSR

The BumbleBee HD V2 BNF features the amazing DJI digital FPV system that makes flying truly breathtaking. With 720p video at 120 frames per second in your glasses, DJI has raised the bar for clarity and picture quality in the FPV experience to a new high.

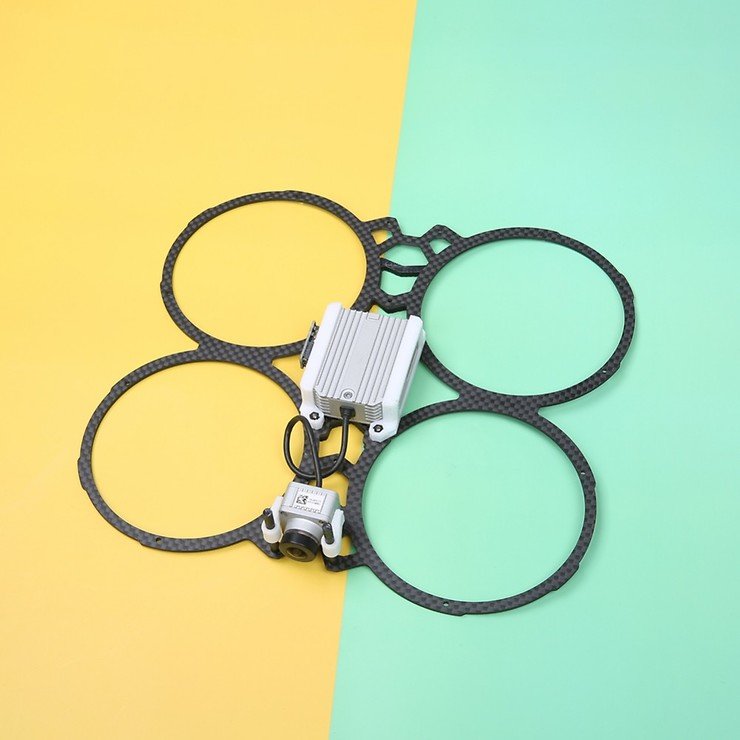

The entire frame has been reduced to a minimum in size and weight. For our new V2 (V1 142 mm) we have developed a motor distance of 145 mm diagonally and even placed the DJI Air Unit inside.

Technical Data

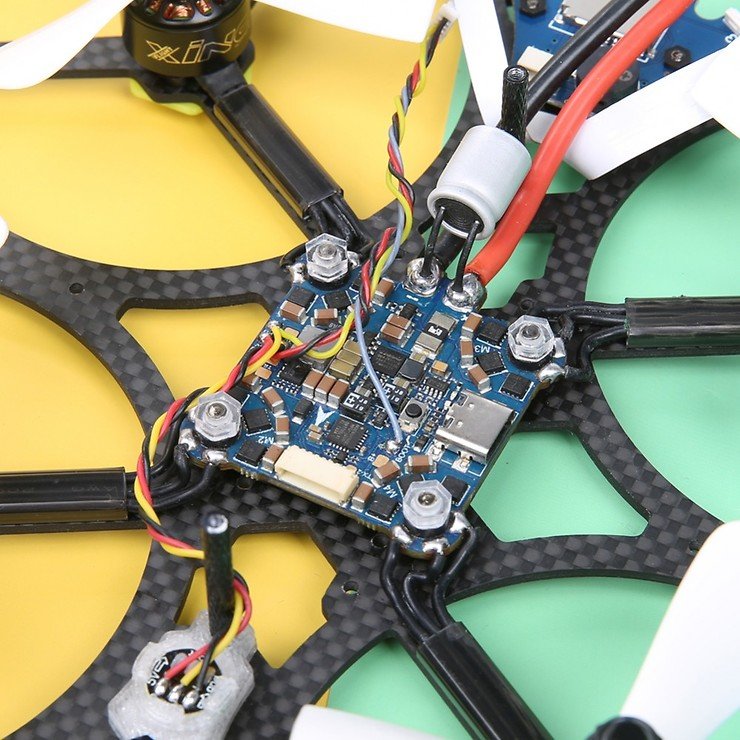

• SucceX-A F4/40A BLHeli32 AIO
• Motor: XING-C1408 4S 3600KV
• Motor to motor: 145mm
• Frame size: 111x93mm

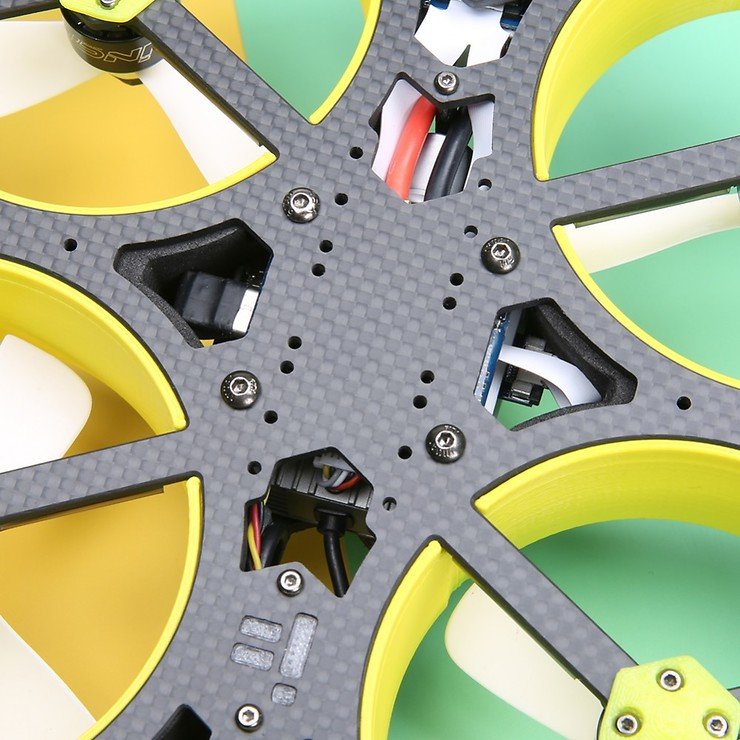

• Thickness of the base plate: 2,5 mm
• Thickness of the cover plate: 2 mm
• Distance between upper and lower plate: 27 mm (height of the aluminium distance)

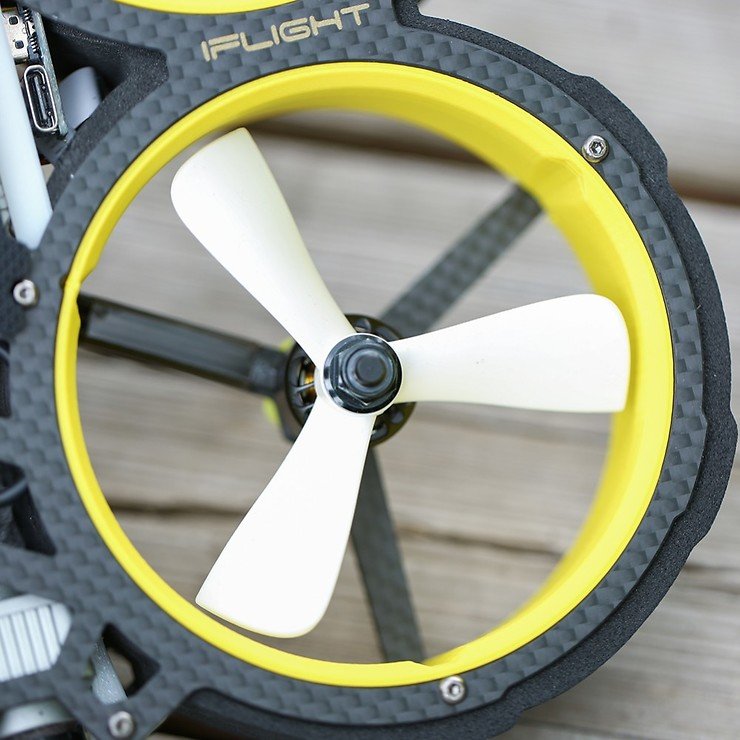

• Propeller size: 3 inch
• FC drill holes: 20x20mm，30.5x30.5mm

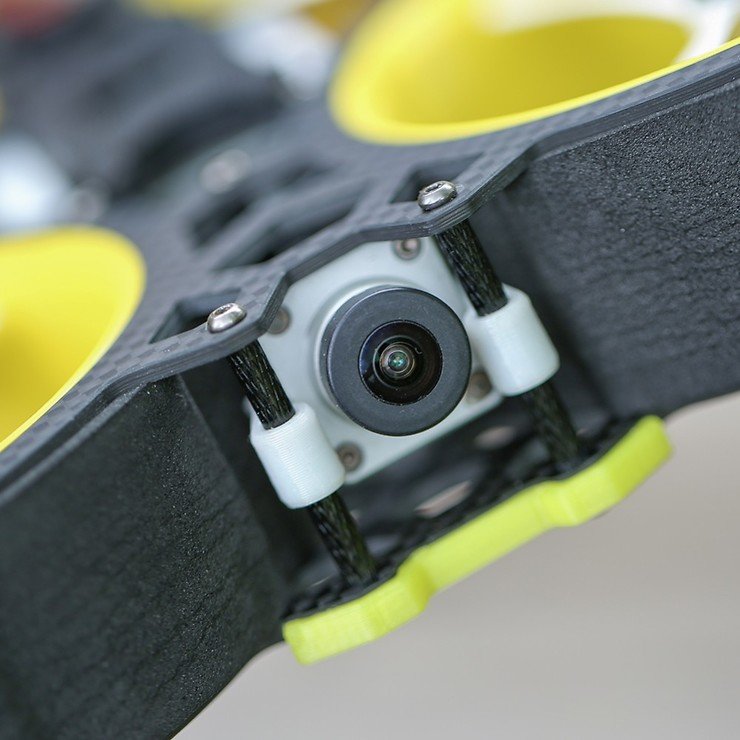

• FPV camera distance: 19mm
• Weight: 356,7g (without battery)

Battery: 4S

Receiver: FrSky R-XSR

Content

• BumbleBee HD V2
• DJI FPV Camera
• DJI FPV AirUnit Module

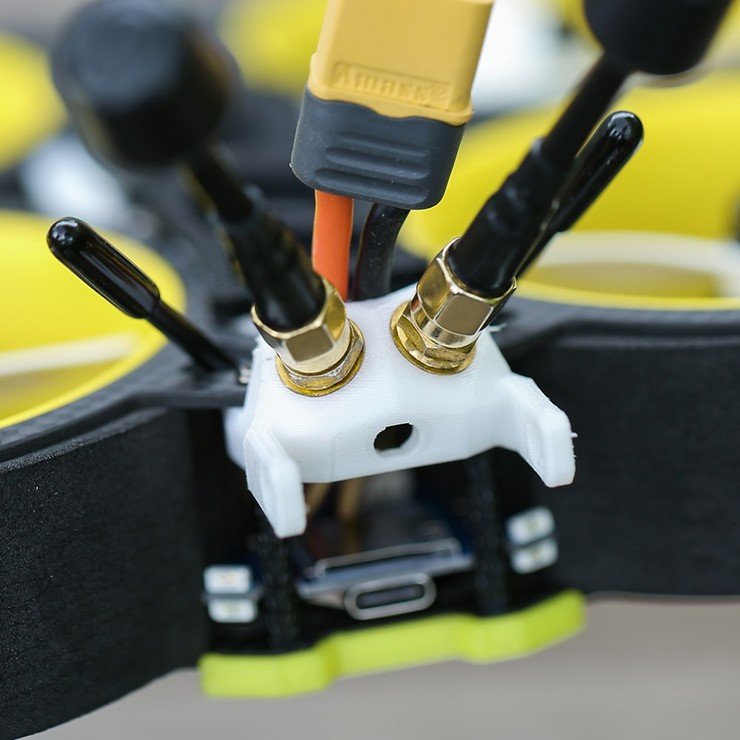

• 2x DJI FPV Air Unit Antenna SMA
• TPU parts
• 2x Nazgul 3040 propeller (set of 4)
• 2x MMCX-to-RP-SMA adapter cable with female connector
• iFlight-Lipo-Band
