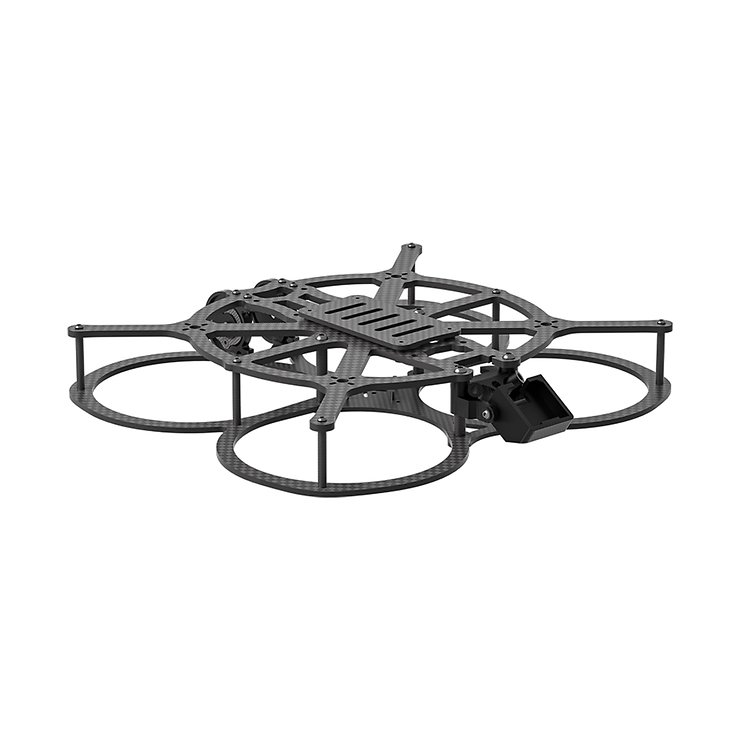

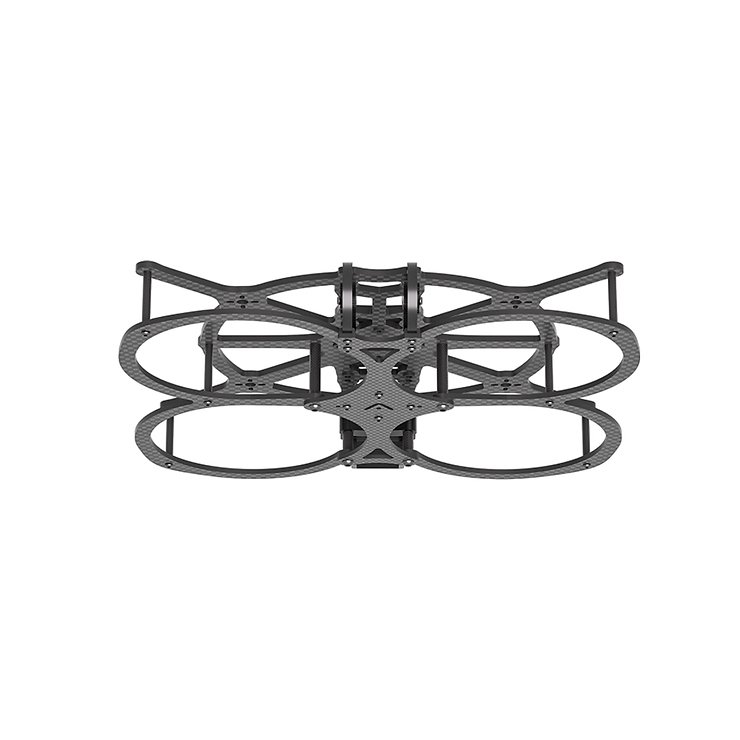

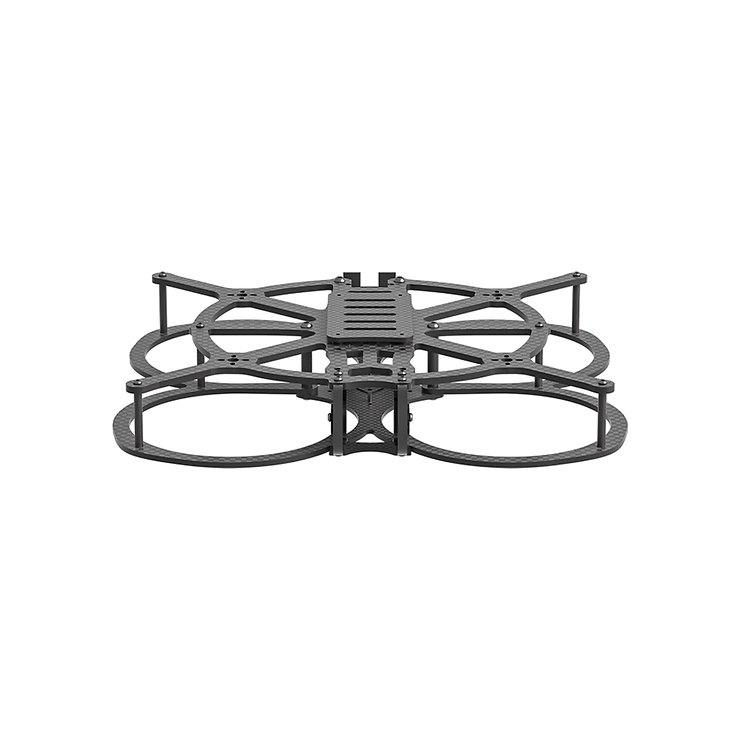

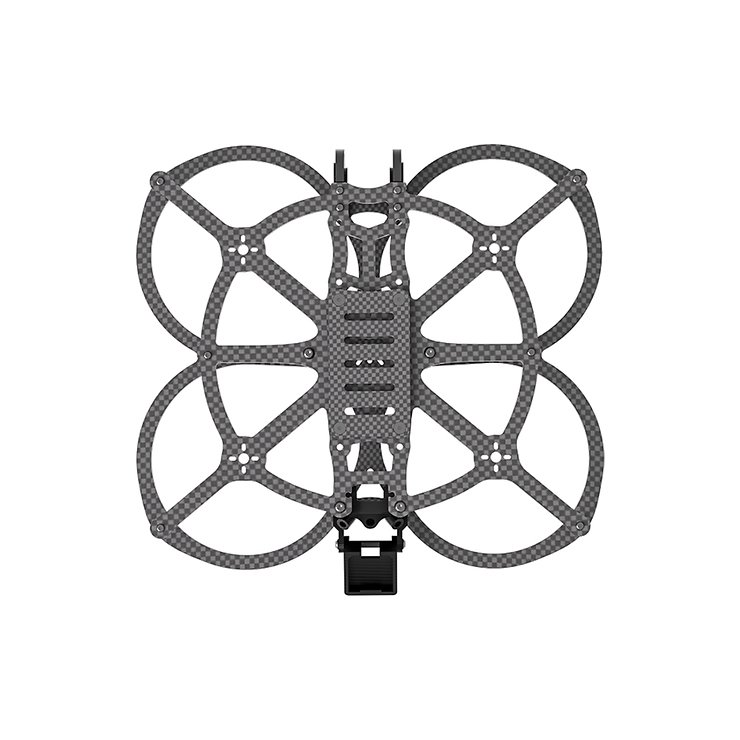

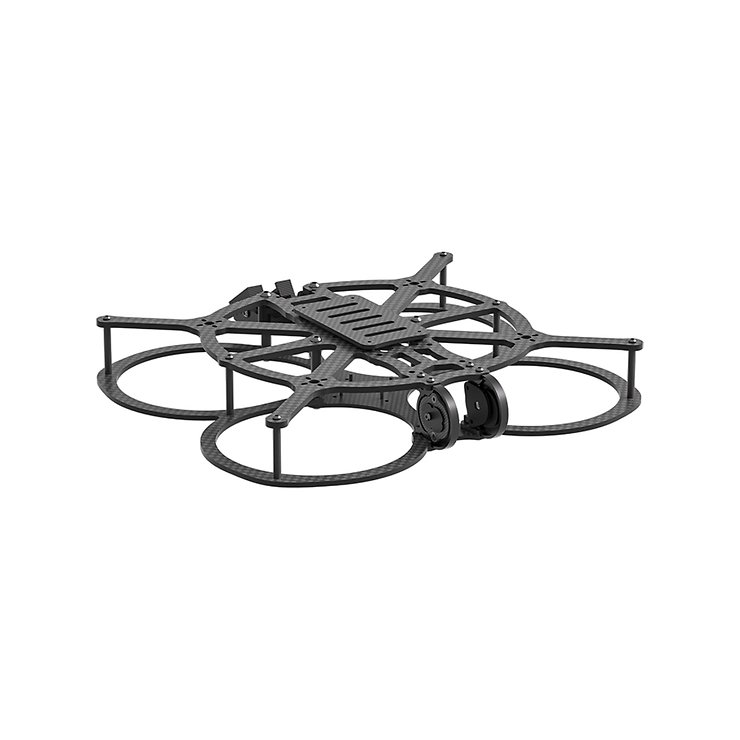

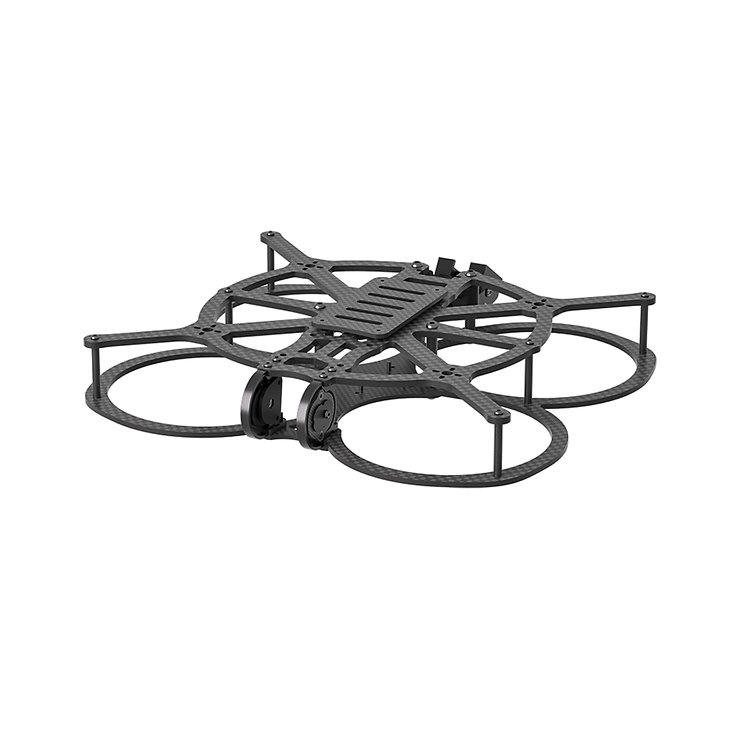

iFlight Cine35 V5 Frame 3.5 inch Kit black

iFlight Cine35 V5 Frame 3.5 inch Kit black

Product description

The iFlight Cine35 V5 Frame was developed in cooperation with AOSRC and offers the perfect balance between compact design and optimized flight performance. With room for 3.5 inch propellers, it is ideal for cinewhoop setups that require both agility and stability.

The high-quality 7075 aluminum camera cage ensures maximum robustness and is compatible with the DJI O3 and DJI O4 Pro cameras. You can enjoy a 155° field of view for impressive shots with full image stability.

The modular design allows flexible battery mounting, while the robust frame provides optimum protection for your propellers. Weighing just 145 grams, the Cine35 V5 Frame is perfect for filmmakers, racers and freestylers who want a reliable and versatile setup.

Technical specifications

• Model: iFlight AOS Cine35 V5 Frame Kit
• Color: Black
• Wheelbase: 153 mm
• Dimensions: 223 x 203 x 36.5 mm
• Top plate thickness: 3 mm
• Bottom plate thickness: 2 mm
• Battery plate thickness: 2 mm
• Max. Flight stack height: 25 mm
• Max. VTX height: 25 mm
• Flight stack mounting: 20×20 mm Φ2 / 25.5×25.5 mm Φ2
• VTX Mounting: 20×20 mm Φ2 / 25.5×25.5 mm Φ2
• Motor mounting: 9×9 mm - Φ2
• Weight: 145 g
• Compatibility: DJI O4 Air Unit Pro / DJI O3 Air Unit / HD Vista / BLITZ Whoop 1.6W VTX
