iFlight Titan XL5 HD with DJI Air Unit GPS BNF TBS Crossfire 4S

Product description

iFlight Titan XL5 HD with DJI Air Unit GPS BNF TBS Crossfire 4S

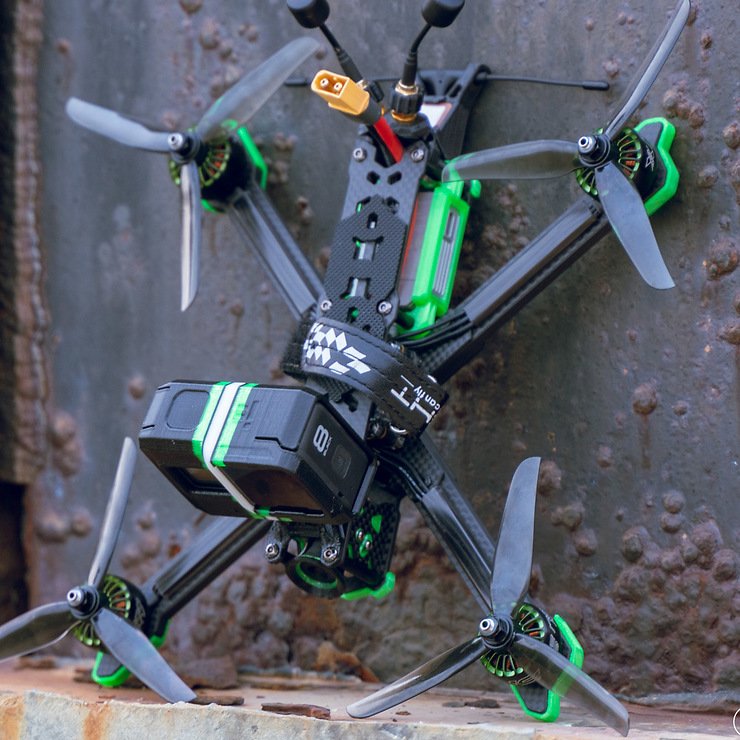

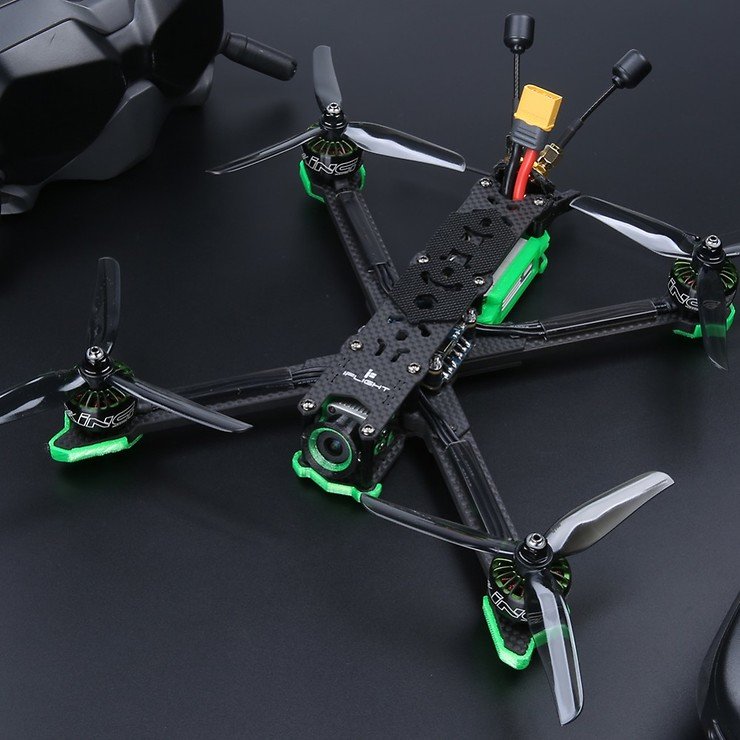

The TITAN XL5 with DJI Air Unit features the amazing new DJI FPV system, this FPV freestyle race copter makes flying a truly breathtaking event. With 720p video shown through the goggles at 120 fps, DJI has set the bar for clarity and image quality in an FPV HD system to a new high. The iFlight Titan XL5 HD has been equipped with the latest SucceX-D F7 (50A 4-in-1 ESC) stack and the popular XING motors.

All you have to do is bind and fly!

After the popular TITAN DC5 (DeadCat style frame), iFlight decided to develop again an X-Frame frame to get the best performance on both axis and a better weight distribution for freestyle and race.

Special features

  • 6mm arms designed for better crash resistance
  • XING 2208 motors for more POWER

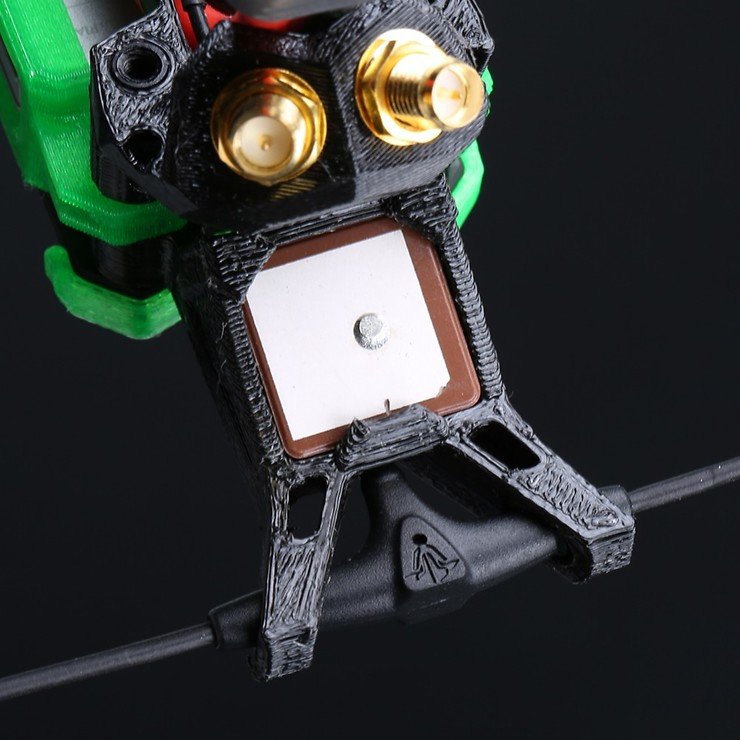

  • GPS pre-installed
  • 360° TPU protector and antenna mount

PRE-TUNED & PRE-SETUP:

  • Don't worry about tuning. This has already been done for you by iFlight!
  • GPS-rescure mode is preconfigured and only needs to be activated in Betaflight.
  • Angle-Mode is activated at the first flight.
  • Motor power is preconfigured to 70% throttle limit (scaled). You need more power?! Then set the throttle limit to 100%

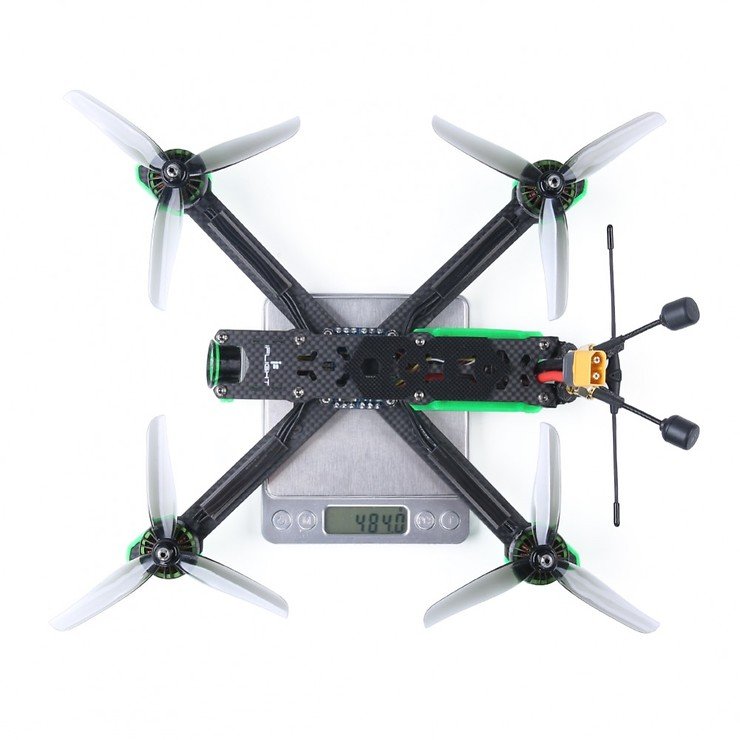

FRAME // TITAN XL5:

  • Weight:145g
  • Diagonal: 250mm
  • Arm thickness: 6mm
  • Bottom plate thickness: 2mm
  • Top plate thickness: 2mm
  • camera plate thickness: 2mm

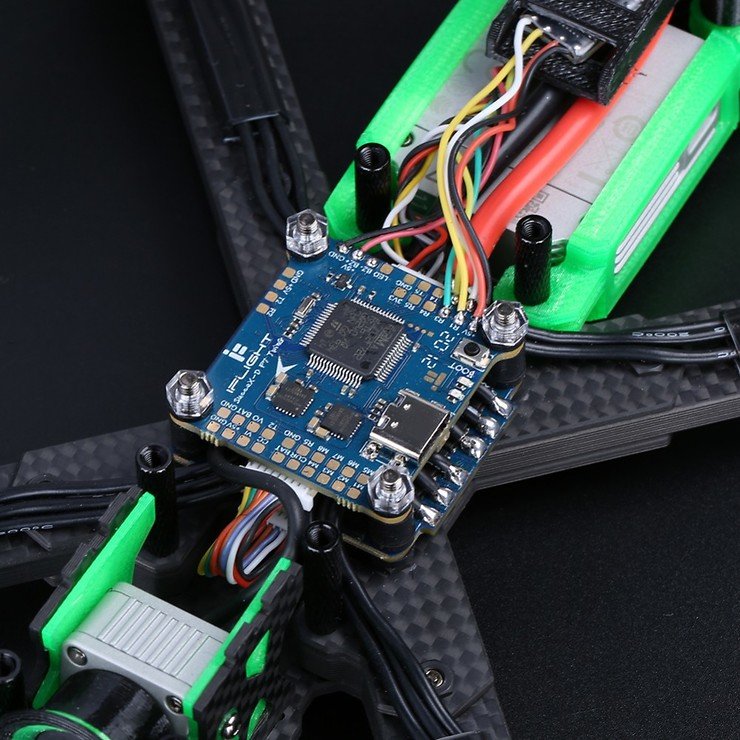

SucceX-D F7 Stack (50A 4-in-1 ESC):

  • Universal USB Type C

SucceX-D F7

  • with 216MHz STM32F722 and 2x ICM20689 Gyros ready for SensorFusion.
  • up to 8S(with matching motors and propellers), Barometer, 32MB Blackbox Flash and 5V/9V BEC

SucceX 50A 4in1

  • with BLHeli_32 up to 48kHz, 8 layers double-sided PCB and Top grade Mosfets.

BNF // Parts list

  • 1x TITAN XL5 HD Frame
  • 1x DJI FPV Camera
  • 1x DJI FPV Air Unit Module
  • 2x DJI FPV Air Unit Antenna SMA
  • 1x TPU Bracket for DJI Air Unit Module
  • 1x TPU Antenna holder for DJI antenna
  • 2x TPU camera side plate soft mount
  • 1x TPU lens cover
  • 1x iFlight Lipo Strap
  • 2x Nazgul 5140 Propeller (Set of 4 - Color May Vary)
  • 4x XING 2208 motor Unibell(4S 2450KV,6S 1800KV)
  • 1x SucceX-D F7 Flight Controller
  • 1x SucceX BLHeli32 50A 4-in-1 ESC 2-6S
  • 2x MMCX to RP-SMA Female Adapter Cable
  • 1x GPS Module
Bestellnummer IFL-F008002
EAN 4260449989083
Hersteller iFlight
