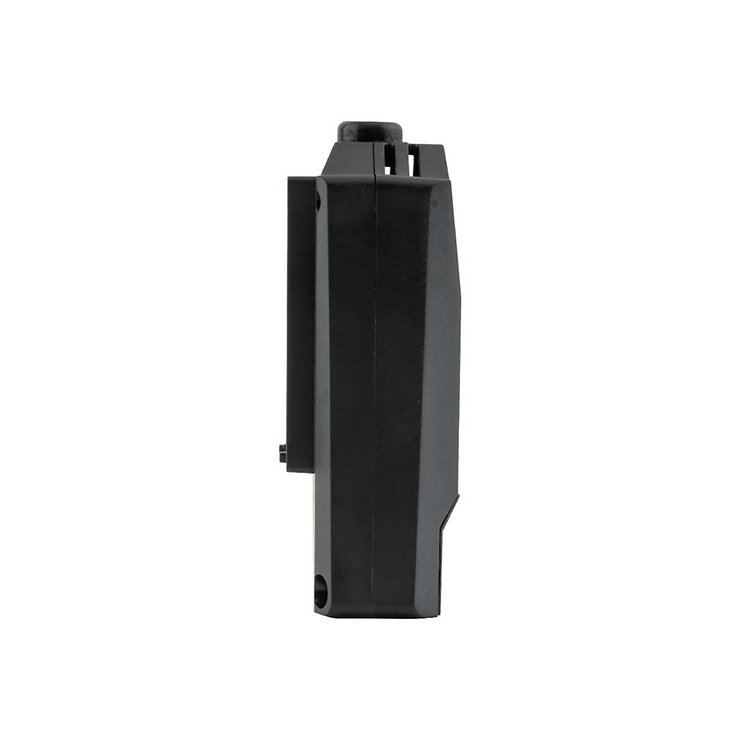

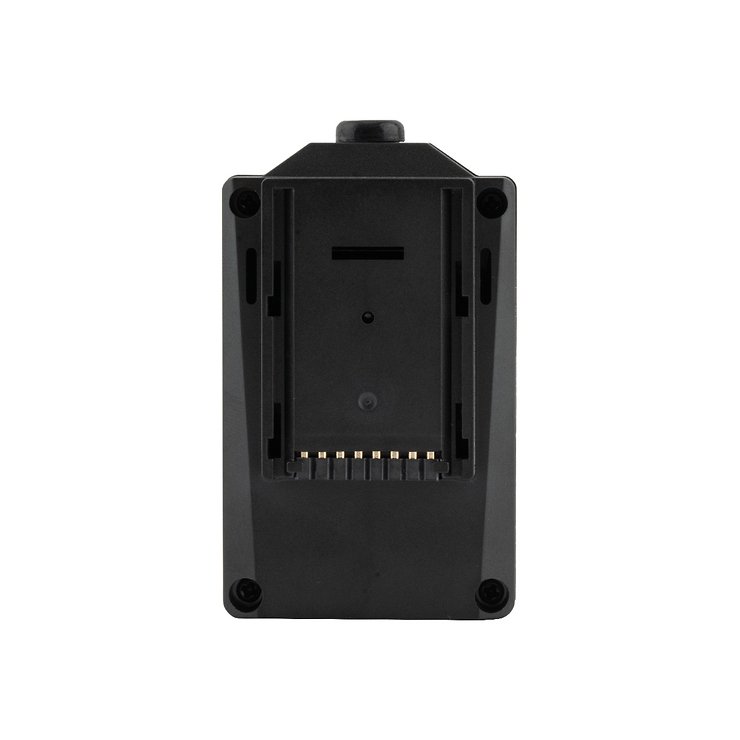

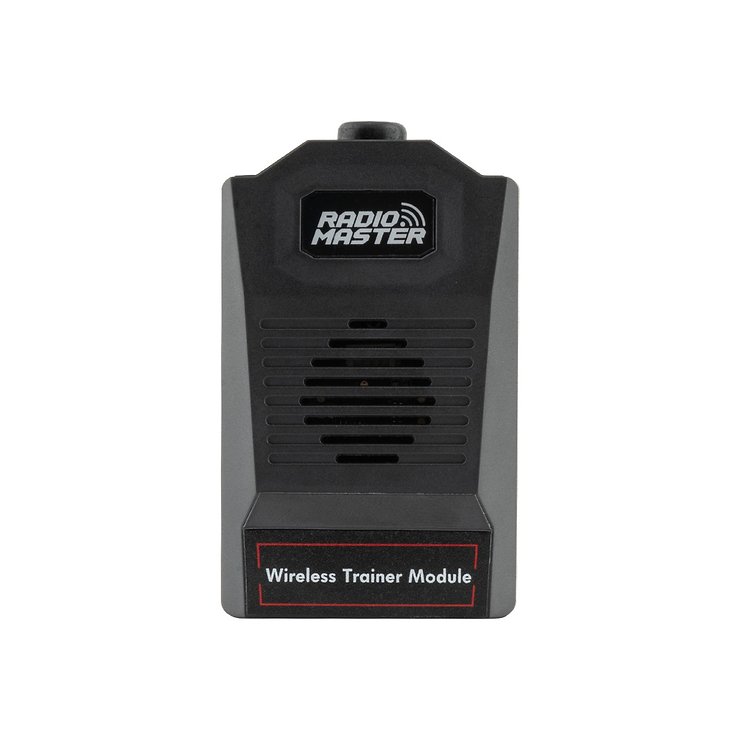

Radiomaster Wireless Trainer Module Nano

Radiomaster Wireless Trainer Module Nano

Product description

The RadioMaster Wireless Trainer Module (Nano version) offers a simple and reliable solution for wireless instructor-student flights. It has been specially designed for the Nano module slot and is fully compatible with remote controls such as the Radiomaster TX12, Zorro or Pocket, which are based on EdgeTX firmware.

The module is inserted into the teacher transmitter and enables connection to a student using any remote control connected to an SBUS-enabled receiver (e.g. ELRS, FrSky, Flysky). The student receiver is connected to the module via a cable. The model is still controlled via the teacher's internal RF module. The instructor can take control of the model at any time using a switch or hand it over to the student.

Perfectly suited for flight schools, FPV training, drone flight beginners or RC model flying clubs - without any annoying cable connection!

Compatible radio remote controls
These modules are compatible with EdgeTX sparks that have matching Nano or Micro module slots.

You can use these models for the Nano module:
- GX12
- ZORRO
- POCKET
- MT12

Features

• Wireless teacher-student connection via SBUS
• Ideal for Radiomaster TX12, Zorro, Pocket and many more
• Compatible with common SBUS receivers (e.g. ELRS)
• Lightweight, compact & ready for immediate use

Technical data

• Module type: Wireless trainer module (nano-wave)
• Compatible transmitters: Radiomaster TX12, Zorro, Pocket, and many more (with Nano slot & EdgeTX)
• Power supply (input): 5 - 8,4 V
• Output voltage for receiver: 5 V
• Signal transmission: SBUS (receiver required)
• Weight: approx. 19 g
• Dimensions: 26.3 × 71.2 × 42 mm
• Compatible receivers: All receivers with SBUS output (e.g. ELRS, FrSky)
