Futaba T7CP + R617FS 2.4GHz FASST

Product description

Fully expanded seven-channel computer system of ergonomically efficient hand-held transmitter design, with 2.4 GHz FASST technology. The FASST system is a Spread Spectrum system with frequency hopping (FHSS). It therefore permitted to transmit a maximum power of 100 mW EIRP, giving it ample reserves even for large-scale model aircraft and jets.

No crystals, no spot frequency selection, no same-channel interference.
Due to Spread Spectrum modulation, frequency hopping and encoding from transmitter to receiver, with more than 130 million codes, quasi interference.
A detailed description of the system advantages of 2.4 GHz FASST technology please refer to the FASST introduction page.

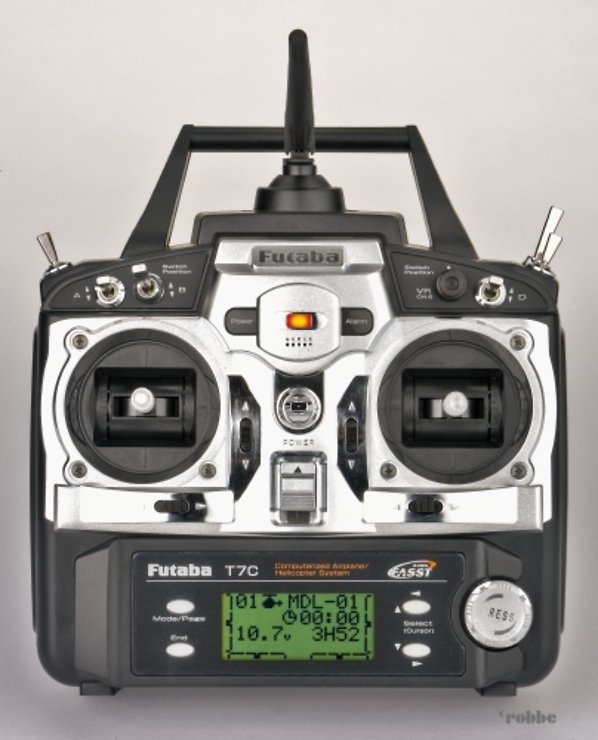

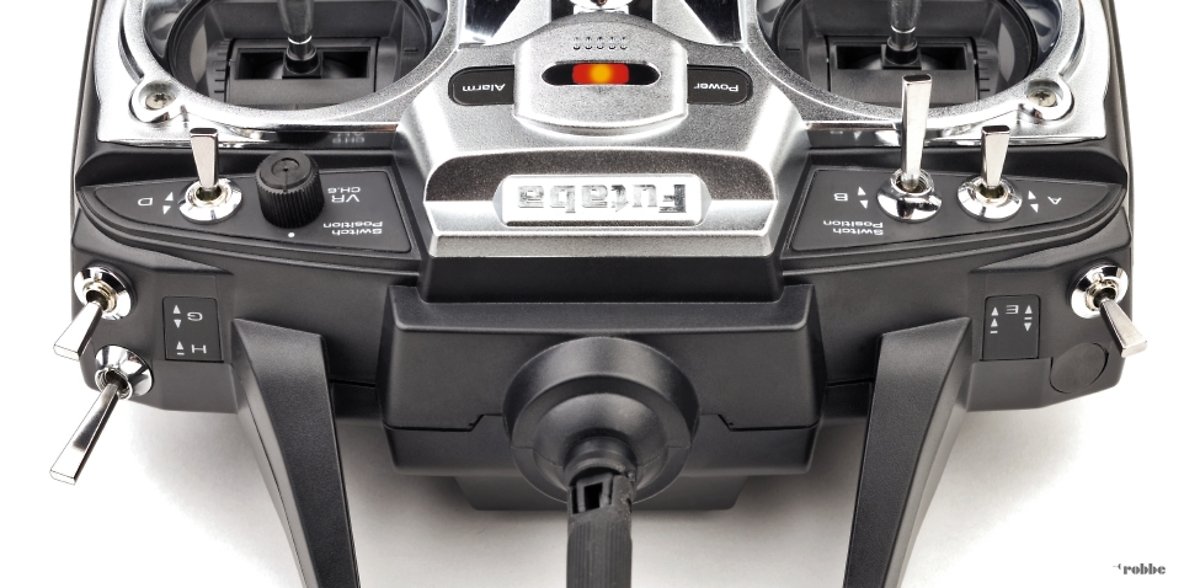

The transmitter is fully equipped with an analogue rotary control and six switches, and requires no additional accessories.
Comprehensive software with mixer functions for model aircraft and helicopters. Contains all the essential functions which really needs advanced modeller.

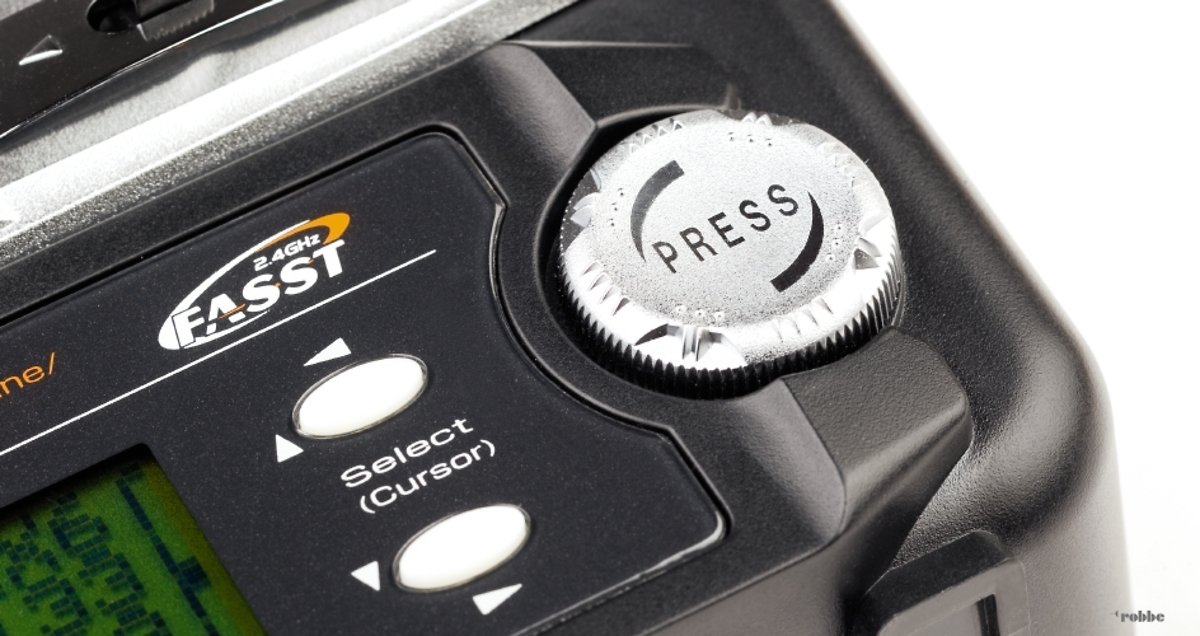

In conjunction with 4 control buttons, the 3-D hotkey and logically arranged software the system is very easy to program, the 72 x 32 pixels large LCD display, with extra large Dot's for better legibility.
The software is available in 6 languages: English, German, French, Italian, Spanish or Dutch.
10 memory slots.
Digital stick is an adjustment or trim storage when you switch model memories, redundant. A position indicator of the trim value on a bar graph is done on the LCD display.
Integrated H3 (1: 1: 1) swashplate mixer for CCPM rotor head control (140 °).
integrated teacher-student system.
Integrated, folding short antenna.

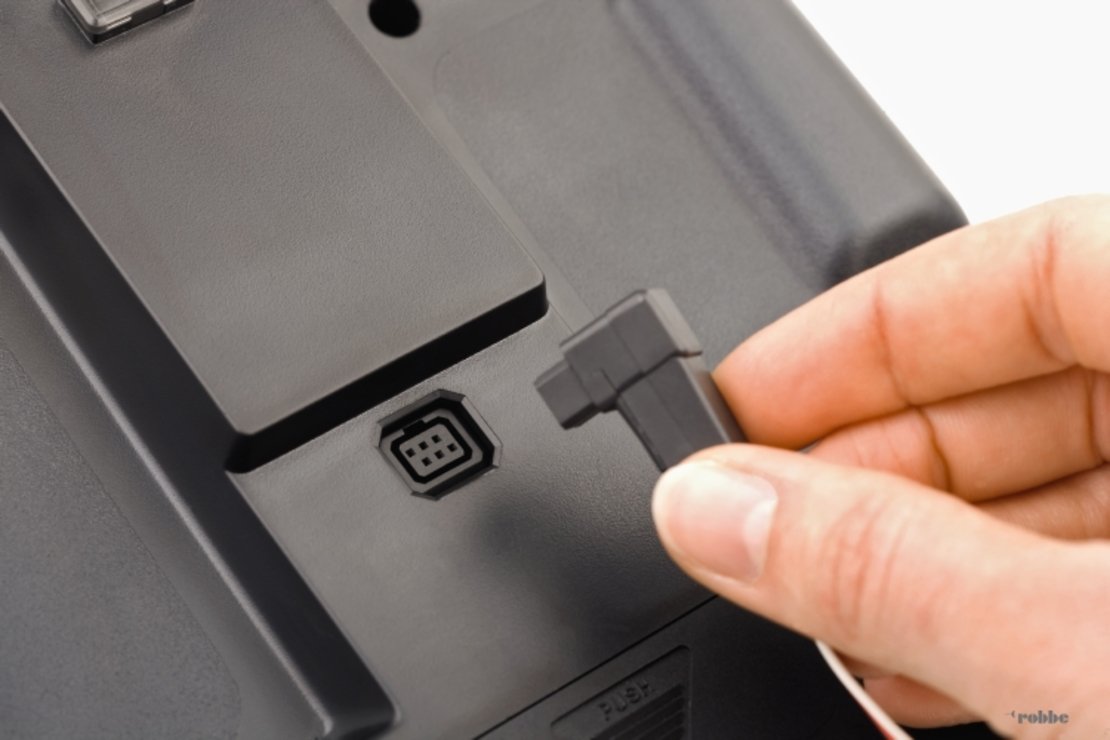

With charge socket, prepared for rechargeable battery.

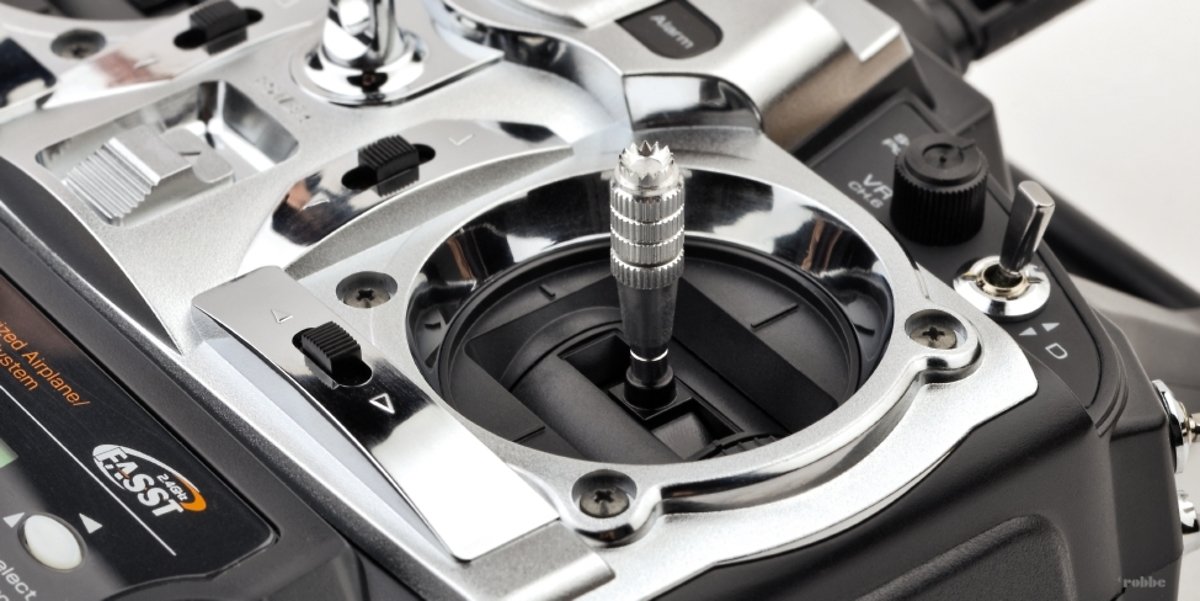

The stick units are designed for Universal mode (Mode 1 and 2) and can be converted by the user themselves.

software list
Basic functions:

Model selection, 10 memory slots
Model name (6 characters), model copy
Operating hours counter (Timer)
Up / down-counting stopwatch
Digital operating voltage display
Stick Mode 1 ... 4
Function reverse throttle
Teacher-pupil operation
Digital stick with step adjustment
Servo reverse
Servo center offset (Subtrim)
Failsafe (channel 3, gas)
Servo travel adjustment (ATV / EPA)
3 x control path switching (D / R)
4 x exponential function (EXP)
Idle trim with polarity reversal (ATL)
throttle cut
Choice of the transmitter control for channel 5 and 7
Mixer menus for model aircraft and helicopters
reset

Flight Model:

3 x 3-point programmable mixers, with offset mixing
Flaperon - mixer with differentiation
Flaperon - Trim (mixed value Flaperon)
Cross -> rudder
Elevator -> Flaperon
Flaperon -> elevator
Air-Brake (ailerons as camber-changing / airbrakes)
Ailvator mixer (cross-Height)
V-tail mixer (V-Tail)
Delta mixer (elevon) with differentiation

Helicopter Model:

3 x 3-point programmable mixers, with offset add
5-point throttle curve, normal, idle-up 1 and 2
5-point pitch curve, normal, idle-up 1, 2 and autorotation
Throttle Trim Hover (Mix knob)
Pitch trim Hover
Pitch -> tail rotor mixer
Autorotation with tail rotor offset
2x offset mixer for roll, pitch and tail rotor functions
H1, H2, HR3, H3 (90 °) H3 (1: 1: 1) swashplate control
Taumelscheibenwegeinstellung (AFR)
Menu for gyro sensitivity
Setting Menu governor (speed controller)
Mixer swash plate gas

delivery

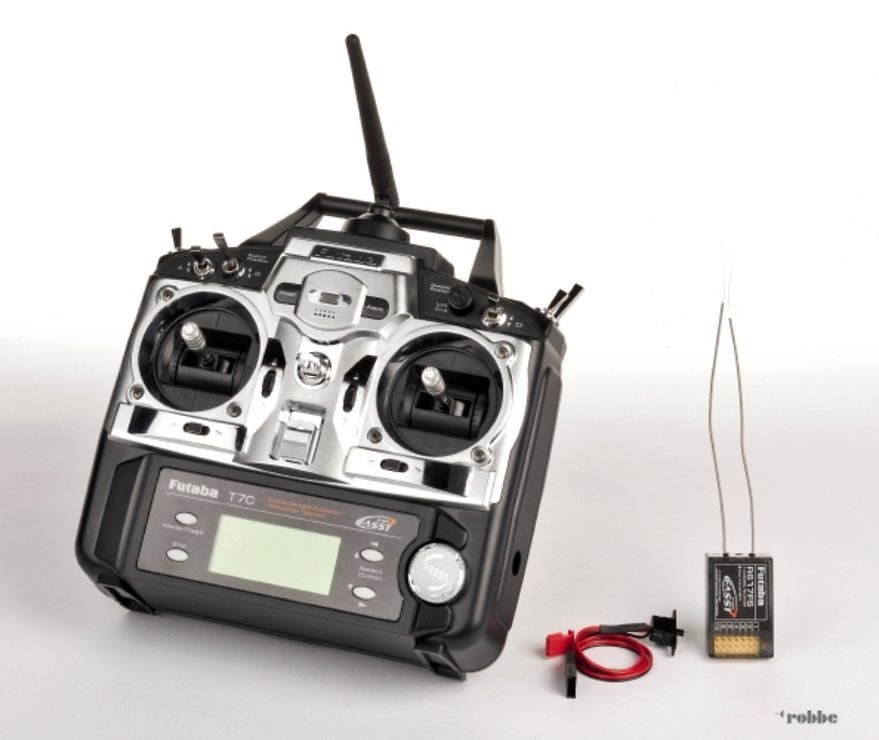

1 transmitter T7CP FASST 2.4 GHz
1 FASST receiver R 617 FS 2,4 GHz
1 Switch harness

Order number	1-F7029
EAN	4005697870291
Manufacturer	Robbe
Produktsicherheit	Hersteller: Modellbau Lindinger GmbH Industriestraße 10. 4565 Inzersdorf im Kremstal, Österreich E-Mail: info@robbe.com Verantwortliche Person: Modellbau Lindinger GmbH Industriestraße 10. 4565 Inzersdorf im Kremstal, Österreich
