Product description

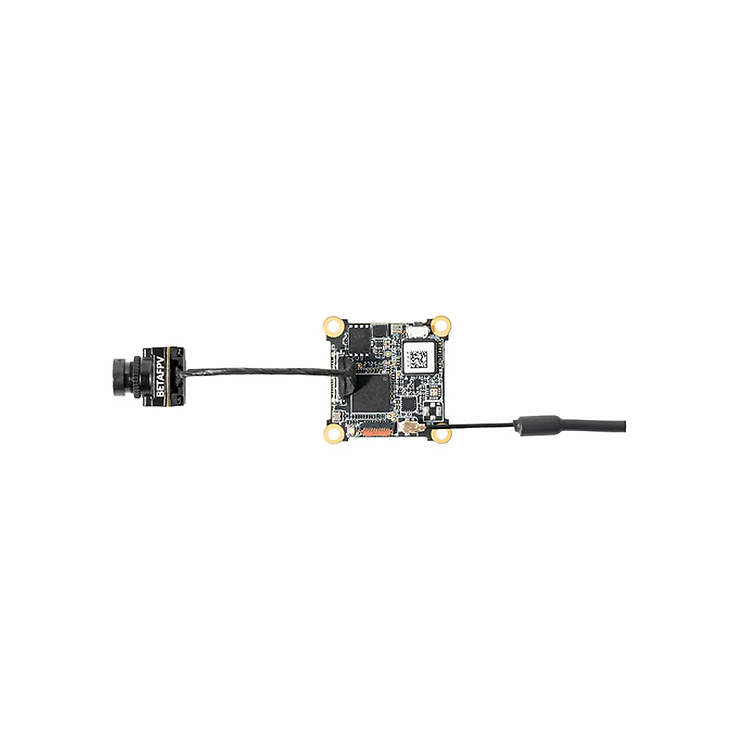

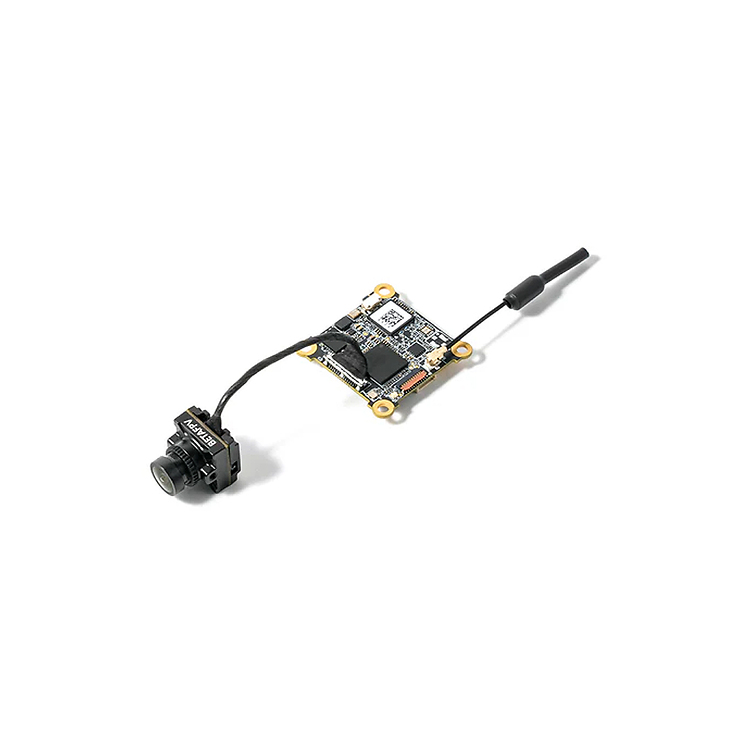

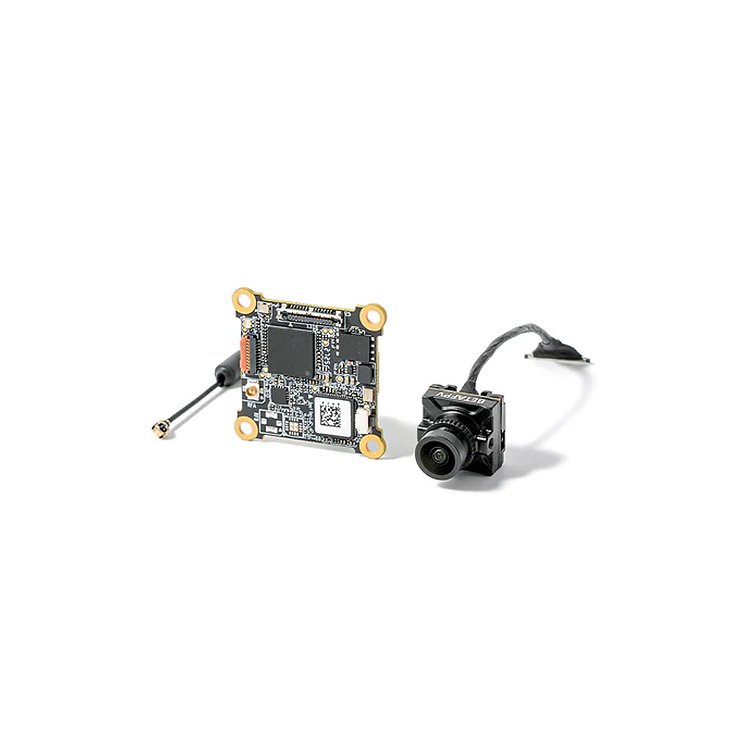

The BetaFPV P1 Air Unit HD VTX is an advanced digital FPV camera and video transmission system designed specifically for HD whoops, micro FPV drones and compact builds. Thanks to the powerful ArtLynk protocol, this system offers stable digital image transmission with 1080p at 60 fps, low latency and an impressive range - ideal for immersive FPV flights.

With a total weight of only approx. 6.5 g including camera, the P1 system is one of the lightest digital FPV solutions on the market. This makes it perfect for Tiny Whoops and ultra-light FPV drones where every gram counts.

The integrated camera uses a 1/2.9 inch CMOS sensor with a 170° wide-angle field of view, giving pilots a particularly wide and clear perspective. This wide image coverage improves orientation during flight and provides an immersive FPV experience.

The digital transmission operates in the 5.1-5.9 GHz range and enables stable video transmission with a latency of around 60 ms and a range of over 5 km under optimum conditions. This results in a much more stable connection than classic analog systems.

Installation is particularly easy: the standardized 6-pin connector (SH1.0) enables a quick plug-and-play connection with Betaflight and BETAFPV flight controllers. In addition, automatic power adjustment in standby mode ensures that the system maintains a stable connection after a crash.

With its combination of high image quality, low weight and easy integration, the BetaFPV P1 Air Unit HD VTX is an ideal solution for FPV pilots looking for a compact digital HD system.

Technical specifications

General specifications

• System: Digital FPV camera and VTX system
• Protocol: ArtLynk
• Weight without camera: approx. 3.61 g
• Weight with camera: approx. 6.5 g
• Antenna weight: approx. 0.44 g

Dimensions

• Air unit size: 30 × 30 × 5.5 mm
• Camera: 14 × 14 × 17 mm
• Mounting holes: 25.5 × 25.5 mm
• Hole diameter: Ø 2.5 mm

Connections

• FC connection: SH1.0 6-pin
• USB connection: SH1.0 4-pin

Video transmission (VTX)

• Frequency range: 5.1 - 5.9 GHz
• transmission power (EIRP)
  • FCC / SRRC: < 200 mW
  • CE: < 25 mW
• Video resolution: 1080p @ 60 fps
• Video transmission range: > 5 km (optimal)
• Latency: approx. 60 ms
• Bandwidth: 10 MHz
• Maximum bit rate: 20 Mbit/s
• Channels: 3
• Antenna: Single antenna

Camera

• Sensor: 1/2.9" CMOS
• Field of view (FOV): 170°
• Mounting width: 14 mm
• Mounting: M2 screws
• Video format: MP4
• OSD: Canvas mode

Power supply

• Input voltage: 5 V
• Operating temperature: -10 °C to 40 °C

Compatibility

• Supported flight controllers
  • Betaflight FC
  • BETAFPV FC
