Product description

The FLYWOO GOKU GM10 MINI V3 GPS series is here! With the latest M10050 GNSS chip, it offers more accurate positioning and faster satellite search compared to the previous GM8 V2 generation. Regardless of the protocol used - Ublox for BF4.3x or NMEA for BF4.2x and earlier versions - the performance remains the same.

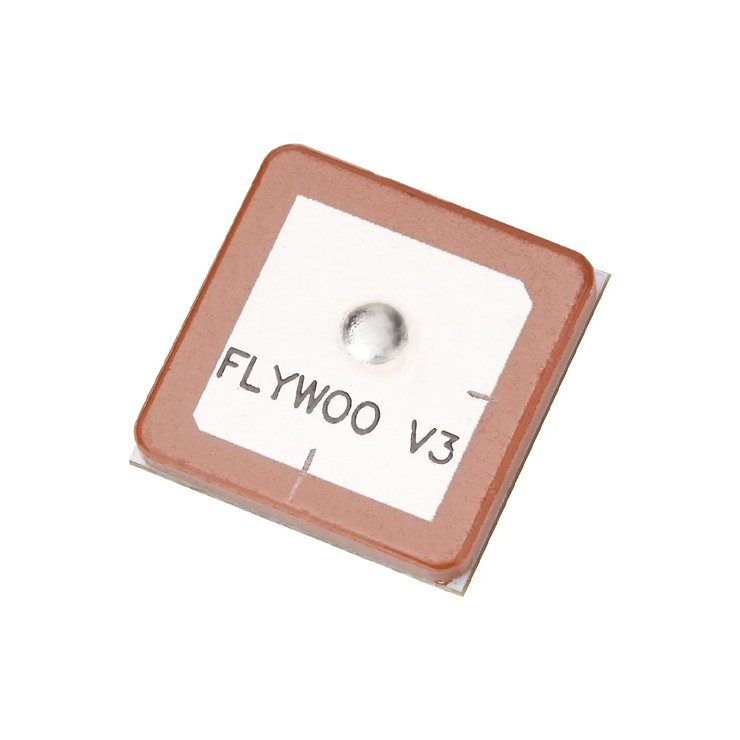

This GPS module is characterized by its compact size of 18mm x 18mm x 4.8mm and its low weight of 4.7g. The 1.0mm spacing between the 4-pin patch seats makes it versatile and easy to integrate.

Specifications:

• Brand: FLYWOO
• Model: GM10 MINI V3 GPS
• Dimensions: 18mm * 18mm * 4.8mm
• Weight: 4.7g
• Connection: 1.0mm distance between the 4 pins of the patch seats

Features:

• GPS module, three modules
• 1.0 mm distance between the 4 pins of the patch seats

Technical data:

Electrical properties:

• Chipset: M10050 (tenth generation)
• Receive format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Standard protocol: GPS, Galileo, BeiDou
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 search channels

Sensitivity:

• Tracking: -162dBm
• Reacquisition: -160dBm

Data and update rate:

• Support rate: 4800 bps to 921600 bps, standard 115200 bps
• Data level: TTL or RS-232, standard TTL level
• Data protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
• Output frequency: 1Hz-10Hz, standard 10Hz

Operating limits:

• Altitude: 50,000m max
• Speed: 500m/s max
• Acceleration: Less than 4g

Power consumption:

• VCC: DC voltage: 5V
• Operating temperature: -40°C ~ +85°C
• Storage temperature: -40°C ~ +105°C

Indicator:

• PPSLED: Yellow. PPS LED does not light up when the GPS is not fixed, flashes when it is fixed

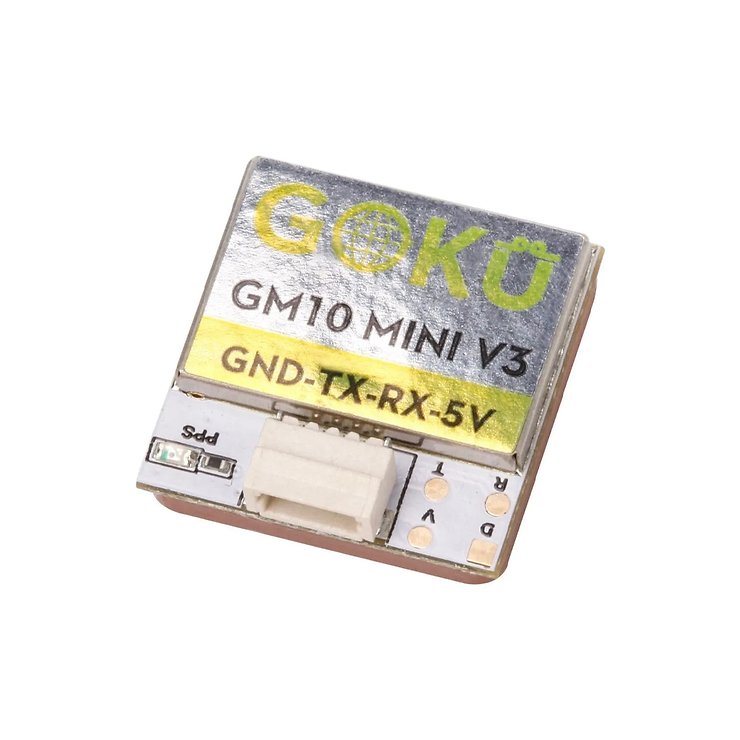

• The pins of the module: GND, TX, RX, 5V
