Product description

The FLYWOO GOKU GM10 NANO V3 GPS series is here! With the latest M10050 GNSS chip, it offers more accurate positioning and faster satellite search compared to the previous GM8 V2 generation.

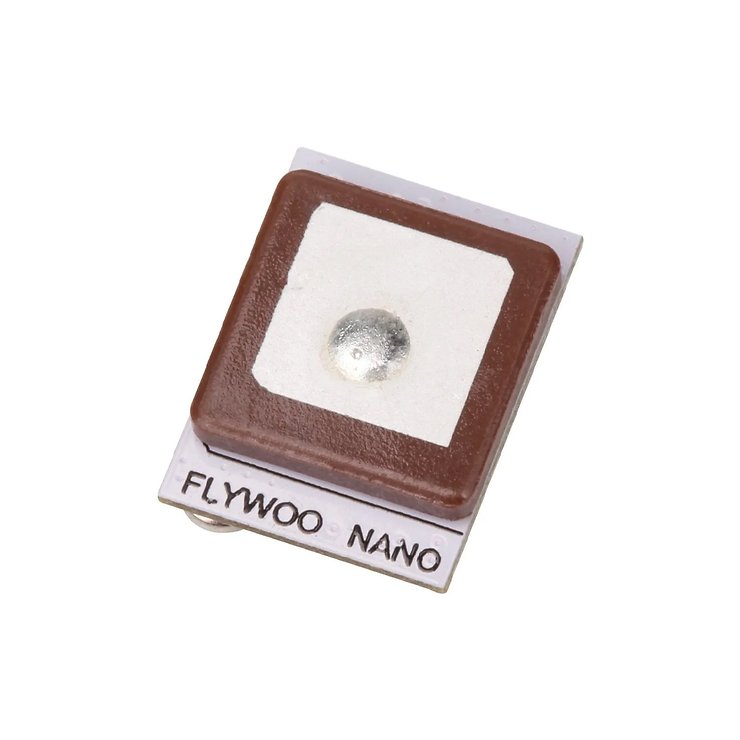

The ultra-lightweight design with a weight of only 2.2g and the 4-pin pad connector makes this GPS module ideal for any application.

Specifications

• Brand: FLYWOO
• Model: GM10 NANO V3 GPS
• Dimensions: 12mm * 16mm * 4.5mm
• Weight: 2.2g

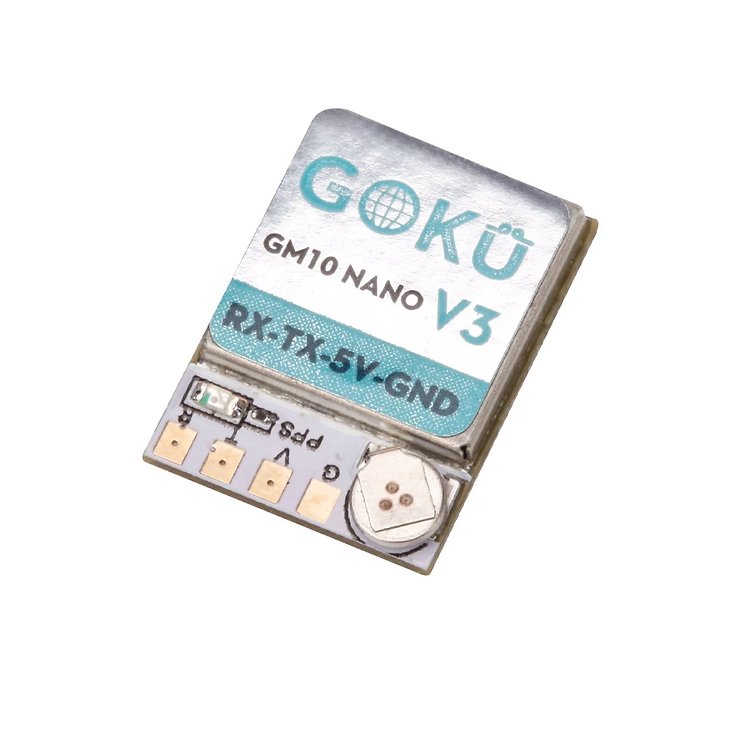

• Connector: 4-pin pad

Features:

• GPS module, Three modules
• 4-pin pad, ultra-light

Technical data:

Electrical characteristics:

• Chipset: M10050 (Tenth generation)
• Reception format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Standard protocol: GPS, Galileo, BeiDou
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 search channels

Sensitivity:

• Tracking: -162dBm
• Reacquisition: -160dBm

Data and update rate:

• Support rate: 4800 bps to 921600 bps, standard 115200 bps
• Data level: TTL or RS-232, standard TTL level
• Data protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
• Output frequency: 1Hz-10Hz, standard 10Hz

Operating limits:

• Altitude: 50,000m max
• Speed: 500m/s max
• Acceleration: Less than 4g

Power consumption:

• VCC: DC voltage: 3.3-5V
• Operating temperature: -40°C ~ +85°C
• Storage temperature: -40°C ~ +105°C

Indicator:

• PPSLED: Yellow. PPS LED does not light up when the GPS is not fixed, flashes when it is fixed
