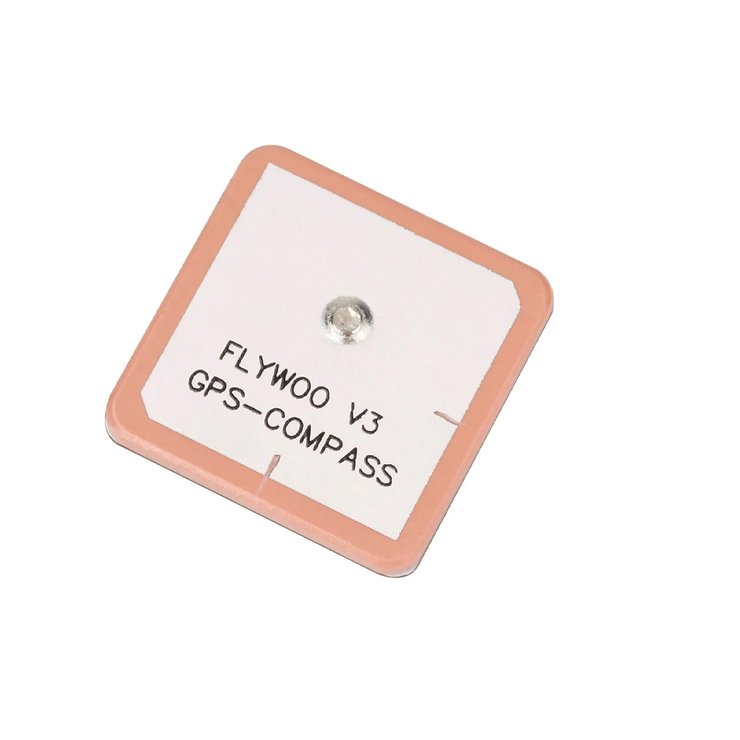

Flywoo GOKU GM10 Pro V3 GPS w/compass FPV Glonass GPS

Flywoo GOKU GM10 Pro V3 GPS w/compass FPV Glonass GPS

Product description

The GOKU GM10 V3 GPS series is here and uses the latest M10050 GNSS chip. Compared to the previous generation GM8 V2, the positioning is more precise and the star search speed is faster.

• Brand: FLYWOO
• Model: GM10 PRO V3 GPS with compass
• Dimensions: 25mm25mm6mm
• Weight: 7.3g
• Connector: 1.00mm distance between the 6 pins of the slot

Features:

• GPS module, three-module compass
• With electronic compass IC QMC5883L
• 1.0 mm distance between the 6 pins of the slot

Specification: Electrical characteristics:

• Chipset: M10050 (Tenth generation)
• Reception format: GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS
• Standard protocol: GPS, Galileo, BeiDou
• Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
• Channels: 72 search channels

Sensitivity:

• Tracking: -162dBm
• Reconnection: -160dBm

Data and update rate:

• Supported rate: 4800bps to 921600bps, standard 115200bps
• Data level: TTL or RS-232, standard TTL level
• Data protocol: BF4.3.X (UBLOX) / BF4.2.X (NMEA)
• Output frequency: 1Hz-10Hz, standard 10Hz

Operating limits:

• Altitude: Max. 50,000 m
• Speed: Max. 500 m/s
• Acceleration: Less than 4g

Power consumption:

• VCC: DC voltage: 5V
• Operating temperature: -40 °C ~ +85 °C
• Storage temperature: -40 °C ~ +105 °C

Indicator:

• PPSLED: Yellow. PPS LED does not light up when GPS is not fixed, flashes when fixed
• Pins of the module: TX RX GND 5V SCL SDA
