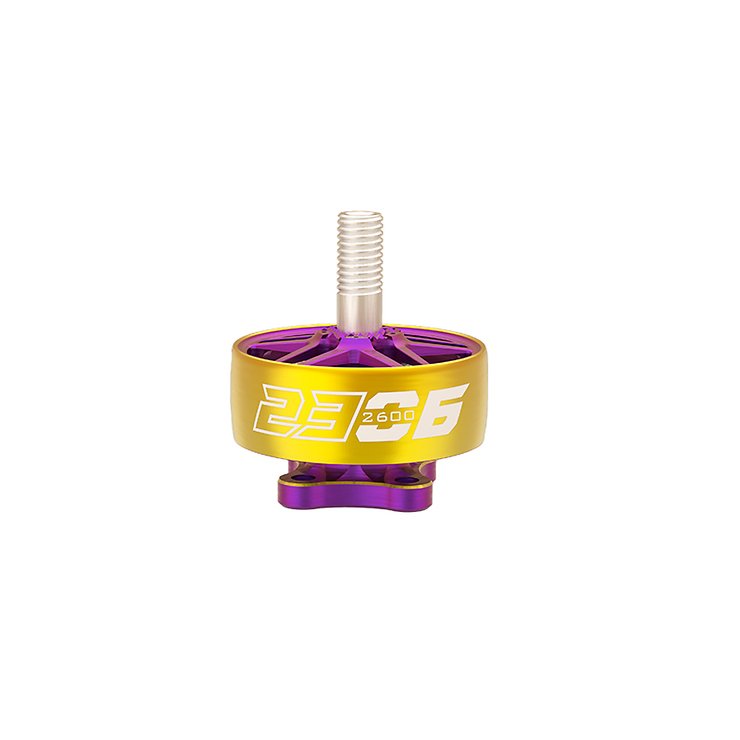

VCI Hobby 2306 FPV Motor 2600KV 24K Gold

VCI Hobby 2306 FPV Motor 2600KV 24K Gold

Product description

The VCI 2306 24K motor with 2600KV has been specially developed for demanding freestyle pilots. With its golden 24K finish, it not only looks classy, but also impresses with its highly efficient operation, smooth response and powerful performance - ideal for fast punch-outs, controlled loops and hard turns.

Thanks to the high-quality construction with N52SH arc magnets, a precisely balanced stator and optimized internal resistance, this motor is the perfect choice for 4S freestyle drones that focus on every detail.

Features

• Freestyle-optimized 2600KV motor for maximum torque and fast response
• 24K coating: for a unique design that catches the eye
• Smooth & stable running thanks to high-quality materials & sophisticated magnetic structure
• High efficiency & power output - ideal for 4S setups
• Perfect balance of torque and control

Technical data

• KV: 2600KV
• Configuration: 12S14P
• Internal resistance: 45 mΩ
• Open circuit current (at 10 V): 1.2 A
• Voltage (rated voltage): 4S (16 V)
• Maximum current: 44.09 A
• Peak power: 705.44 W
• Stator size: 23 × 6 mm
• Dimensions: Ø28.7 × 31.4 mm
• Shaft length: 13 mm
• Shaft diameter: M5
• Magnet type: N52SH Arc
• Cable: 20AWG, 150 mm silicone cable
• Weight (incl. cable): 32.1 g
