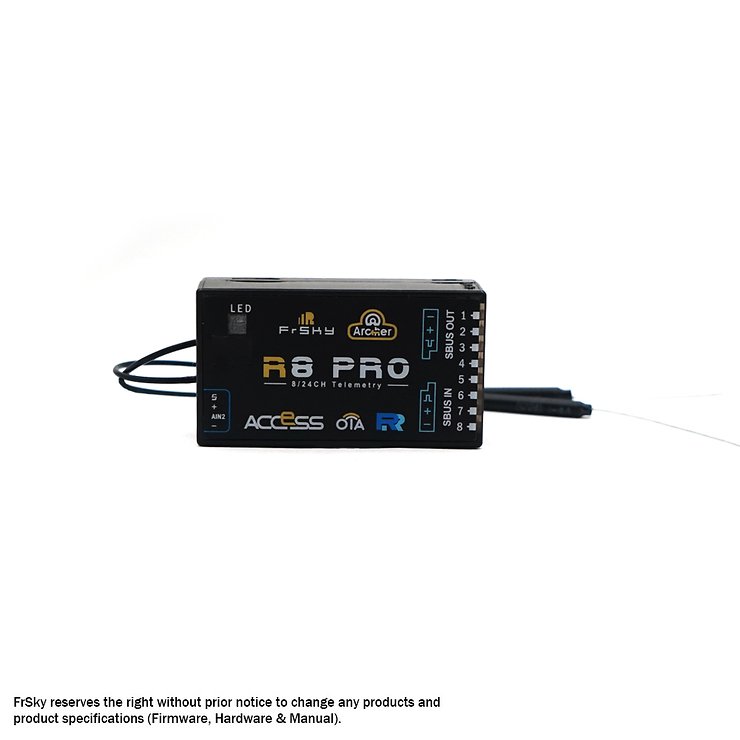

FrSky Archer R8 Pro ACCESS 2.4 GHz Receiver OTA
The Archer R8 Pro is the ACCESS successor to the well-known and popular RX8R Pro receiver.
The Archer R8 PRO features 8 high precision PWM channel outputs, excellent anti-interference performance when it comes to spark ignition of combustion models, and full signal strength support with two detachable antennas for optimum antenna reception and maximum range. In addition to all this, the R8 Pro can also be used as a redundancy receiver along with any other FrSky ACCESS-enabled receiver equipped with an SBUS connector.
All Archer receivers are hyper-customized with the ACCESS protocol. Not only do they have wireless firmware upgrades, increased range and telemetry performance, the R8 PRO now supports more features such as configurable telemetry performance, S.Port/F.Port switching and FLR output.
The special feature of the Archer R8 Pro is that the receiver now has the OTA (Over the Air) function. This allows a wireless firmware update directly via the transmitter.
Features
ACCESS protocol with Over The Air (OTA)
Anti-interference for spark ignition
Supports signal redundancy (SBUS In)
Full control range with telemetry
S.connector / F.connector
External battery/device voltage detection
Technical Specifications
Dimensions: 47*26*15mm (L*W*H)
Weight: 13g
16/24 configurable SBUS channels
8 high precision PWM channels
Operating voltage range: 3.5 -10V
Operating current: 55mA@5V
Control range: Full range* with telemetry
(*Full range: ＞2km, range may vary depending on local conditions).
Voltage measurement range via AIN2 (external device): 0-36V
Compatibility: All FrSky ACCESS transmitters
| Bestellnummer | FRS-ARCHER-R8 |
|---|---|
| EAN | 4260691174091 |
| Hersteller | FrSky |
