FrSky D8R-II Plus 8 channel telemetry receiver

Name: FrSky D8R-II Plus 8 Kanal Telemetrie Empfänger
Brand: FrSky
SKU: FRSKY-D8R-IIPLUS
Price: 39.90 EUR
Availability: OutOfStock
Rating: 5 (1 reviews)

FrSky D8R-II Plus 8 channel telemetry receiver - Thumbnail 1

FrSky D8R-II Plus 8 channel telemetry receiver - Thumbnail 2

FrSky D8R-II Plus 8 channel telemetry receiver - Thumbnail 3

The article is no longer available.

1 review

39,90 € *

to the product description Question regarding the article?

FrSky D8R-II Plus 8 channel telemetry receiver

Product description

FrSky D8R-II Plus 8 channel telemetry receiver

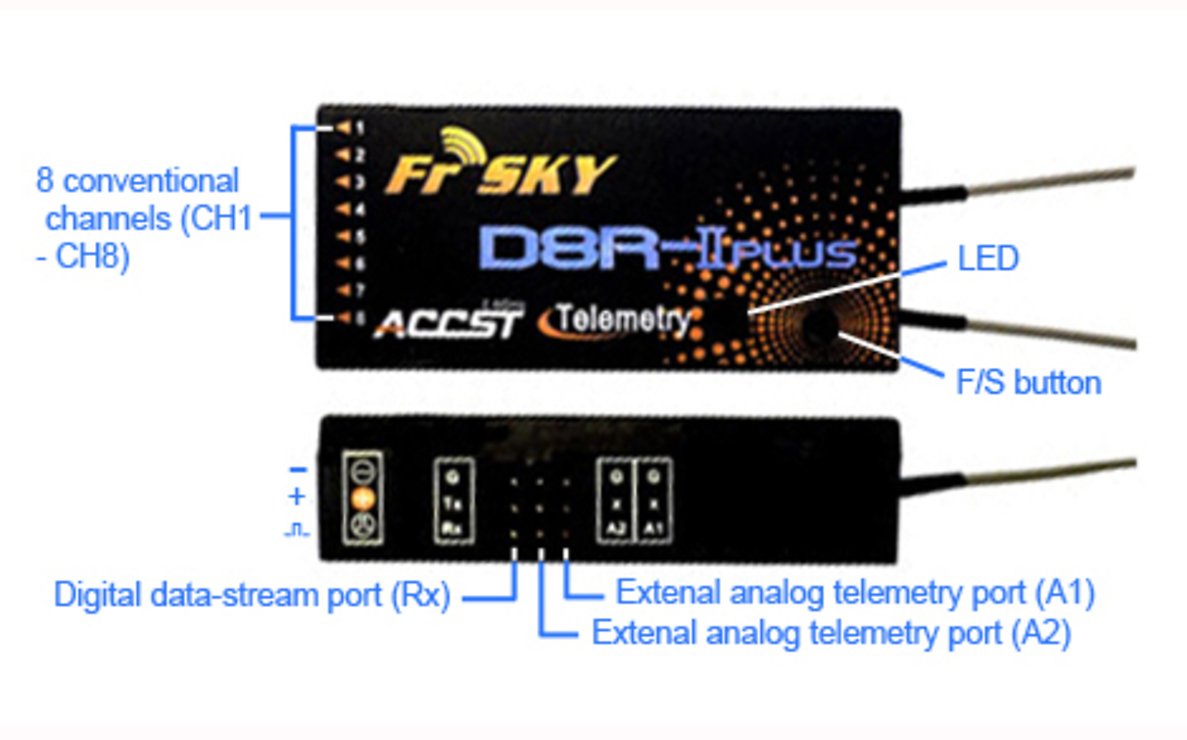

1) Two external analog telemetry connections (A1 and A2) and a digital data stream port (Rx)

2) When the side port pins are connected by A1 and X by the jumper, then switches A1 of external analog telemetry port to internal built-in battery voltage sensor

3) to update Convenient - the casing of the receiver must not be opened during the upgrade D8R-II plus

4) Alarm warning on low voltage, poor reception, etc.

Technical specifications

Dimensions: 55 x 25 x 14mm
Weight: 12.4 g
Coverage: Full range (> 1.5)
Operating voltage range: 3.5 ~ 10V
Operating Current: 100mA
Number of channels: 8

Order number	FRSKY-D8R-IIPLUS
EAN	4260331047433
Manufacturer	FrSky
