Product description

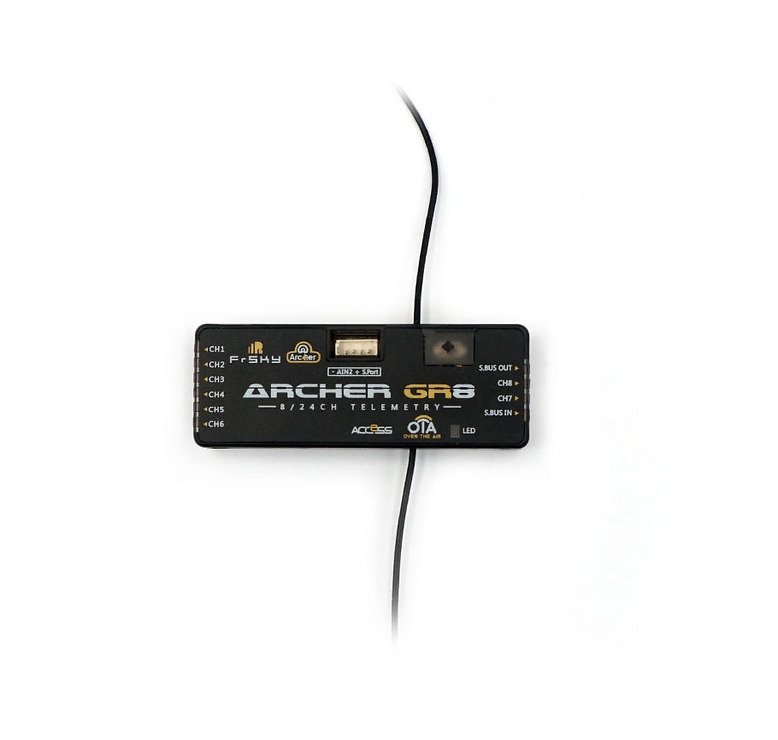

FrSky GR8 RX receiver ACCESS

The ARCHER GR8 receiver features the new ACCESS protocol. ACCESS offers the lower latency and higher performance of our previous G-RX8 receivers. With OTA (Over-The-Air) support, firmware upgrades are very easy, no more cables. The ARCHER GR8 also features an improved high-precision variometer that gives pilots more accurate and faster altitude and vertical speed data. Now you can get more accurate and faster vario audio feedback from your FrSky ACCESS enabled transmitter.

The ARCHER GR8 retains its small form factor. Thanks to the ACCESS protocol and hardware optimizations, you can now use 8 high-precision PWM channels and 16 SBUS channels simultaneously via standard servo connectors. In addition, any ACCESS receiver equipped with SBUS can be connected to the SBUS IN port, making it a redundant receiver. The GR8 automatically uses the receiver with the best signal. Power the receiver via a speed control? Simple battery voltage monitoring is now available via the AIN connector.

Technical data (*)

• ACCESS protocol with Over The Air (OTA)
• Improved variometer sensor
• Receiver redundancy
• 8 high-precision PWM channels
• SBUS IN & OUT (with standard servo connectors)
• S.Port / F.Port and AIN2 (on 4-pin connector)
• SPECIFICATIONS
• Dimensions: 54 * 20 * 10 mm (L * W * H)
• Weight: 9,8 g
• Number of channels: 8/24 channels
• 8 high-precision PWM and 16 SBUS channels
• 8 high-precision PWM and 24 configurable SBUS channels (hold on)
• Operating voltage range: 3.5 - 10 V.
• Operating current: ＜ 60mA at 5V
• Operating range: ＞ 2 km (full range) (* Range may vary depending on local conditions.)
• Variometer measuring range
• Altimeter Range and resolution: -700 m to 10000 m and 0.1 m
• Vertical speed range: ± 100 m / s
• Voltage measuring range via AIN2 (external device): 0-3.3V

Compatibility: All FrSky ACCESS transmitters
