Product description

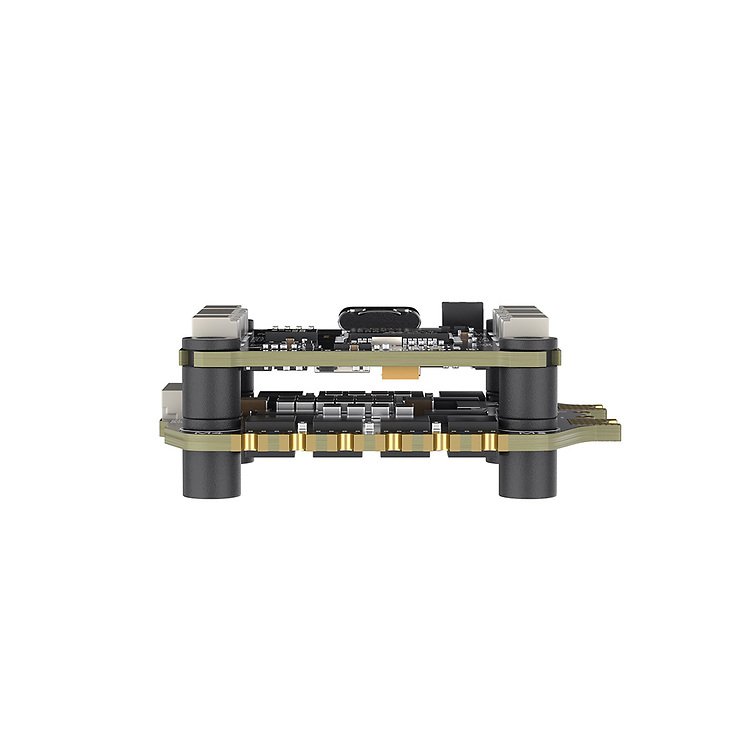

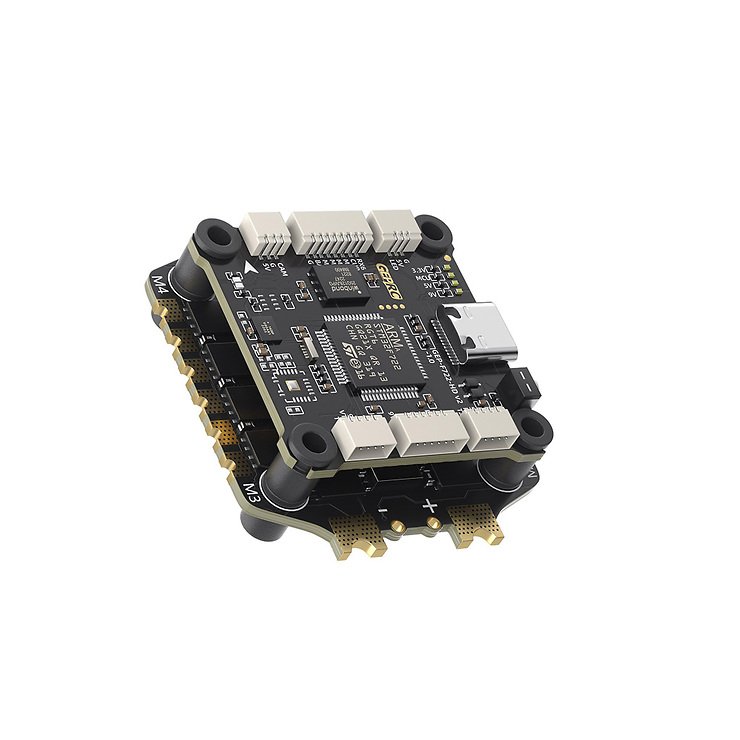

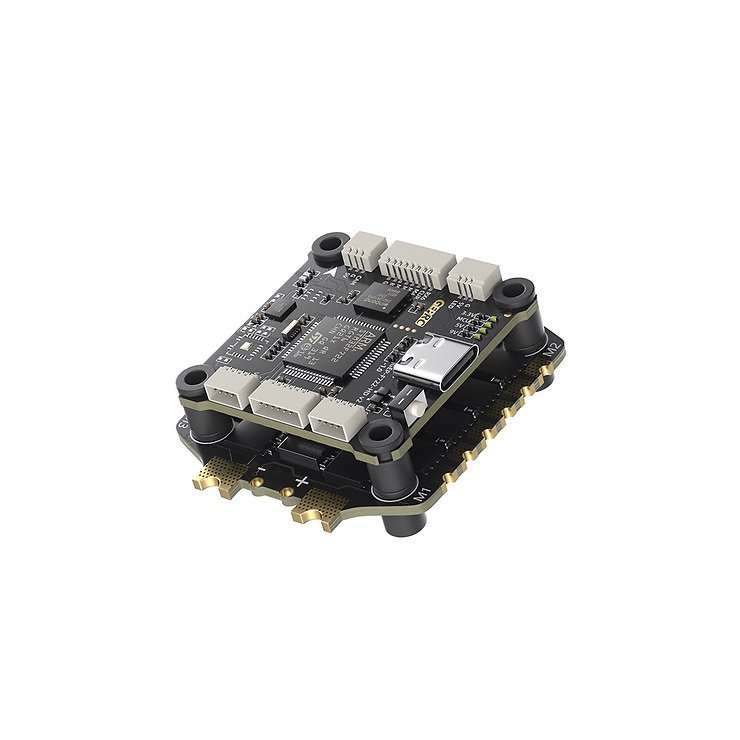

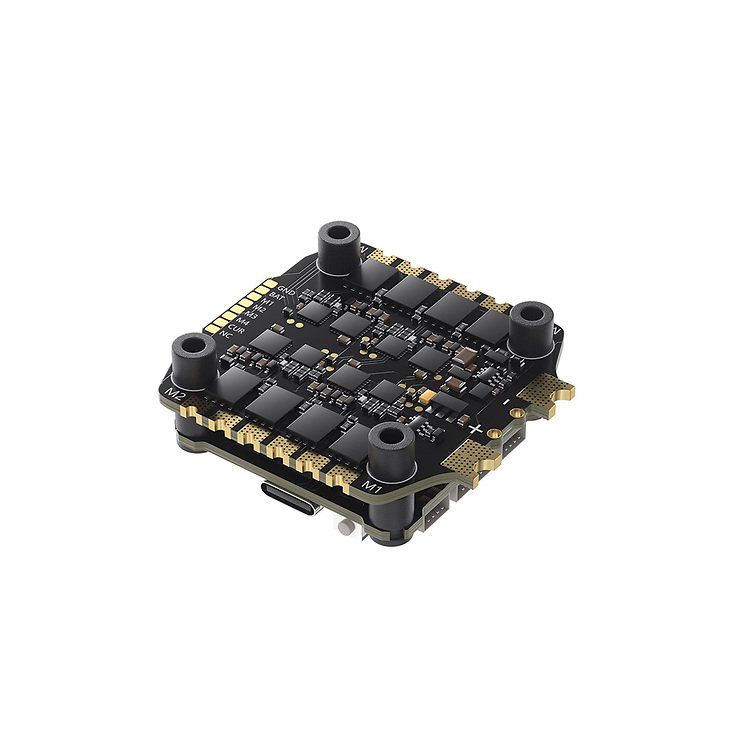

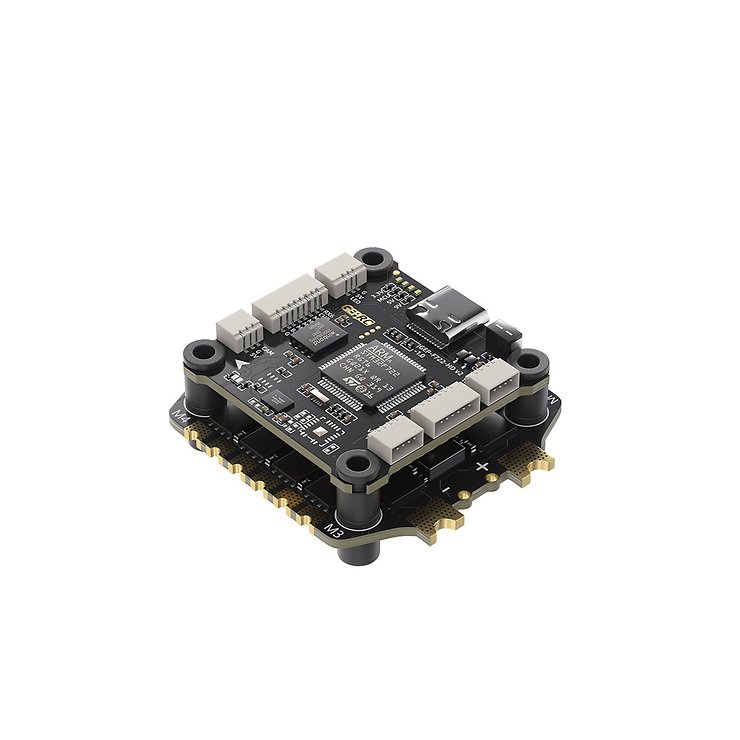

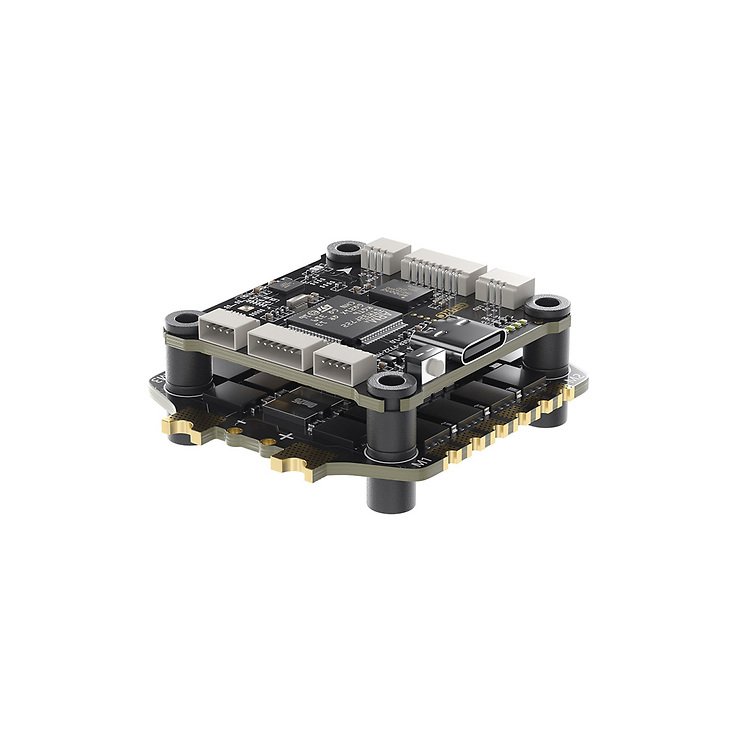

The GEPRC Taker F722 BLS 60A V2 Stack is a powerful and compact combination of flight controller and 4-in-1 ESC designed specifically for FPV drones. The stack is based on the STM32F722 chip and is equipped with an ICM42688-P gyroscope for precise flight control. The 4-in-1 ESC supports a continuous current of 60A and can deliver up to 65A for short periods. The stack is also DJI compatible and allows easy integration into FPV setups.

Highlights

• STM32F722 chip for high computing power
• ICM42688-P gyroscope for precise control
• 16MB onboard black box memory
• Integrated LC filter for clean power supply
• Direct compatibility with DJI Air Unit
• USB-C interface

Specifications

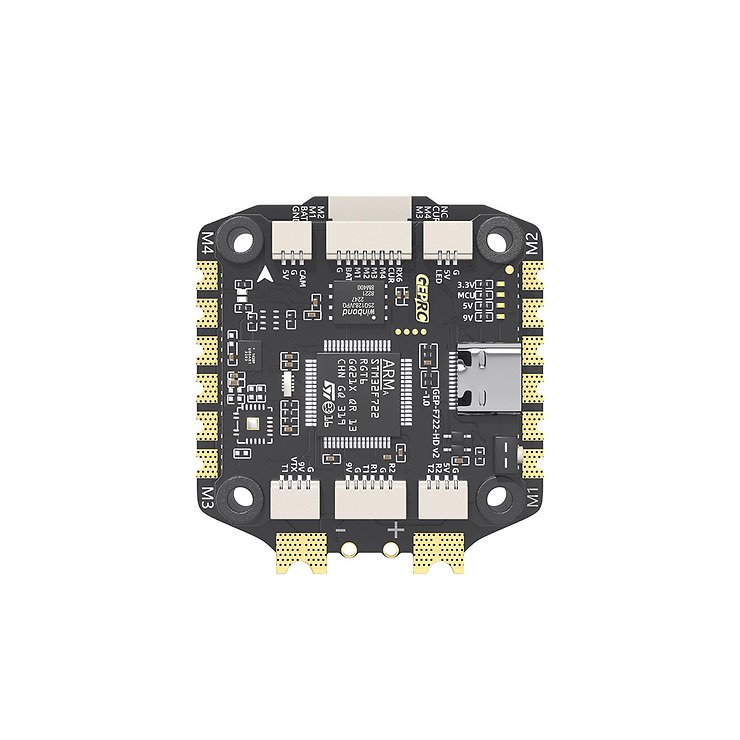

GEP-F722-HD V2 Flight Controller:

• MCU: STM32F722
• IMU: ICM42688-P (SPI)
• Blackbox: 16MB
• OSD: BetaFlight OSD with AT7456E chip
• BEC: 5V@3A, [email protected] dual BEC
• UART: 5
• Weight: 8.1g
• Size: 36.85 × 36.85 mm

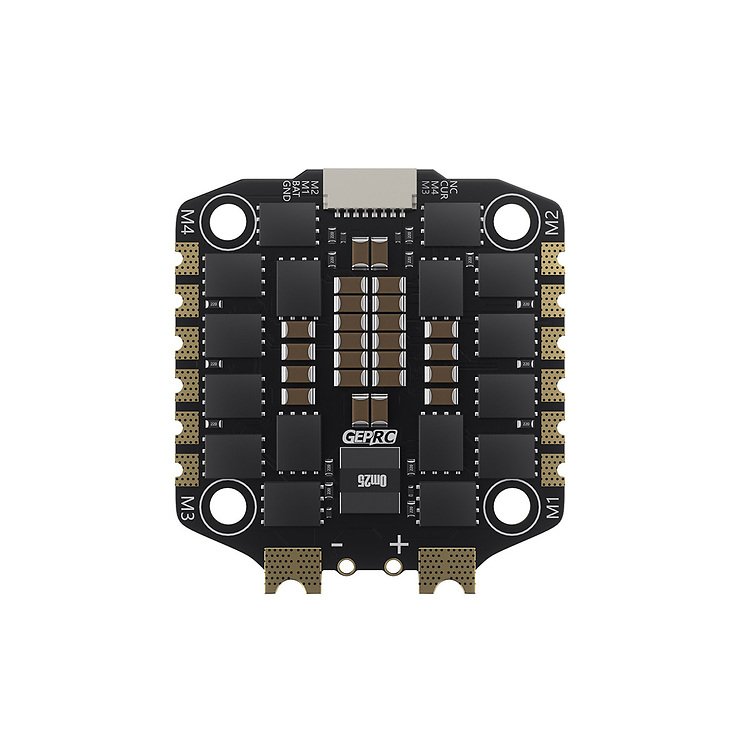

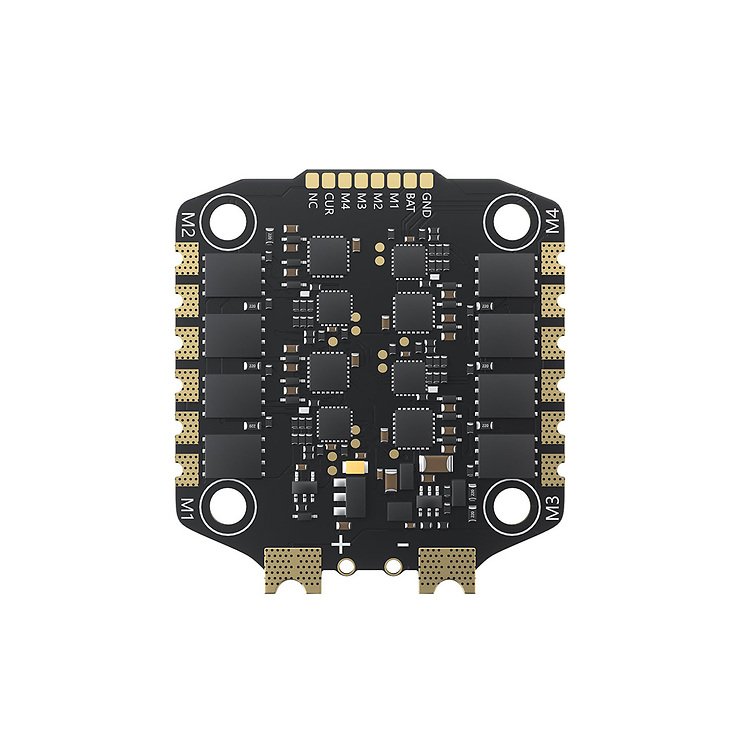

TAKER H60_BLS 60A 4IN1 ESC:

• Input voltage: 3-6S LiPo
• Continuous current: 60A
• Burst current: 65A (5 seconds)
• Supported protocols: Dshot 150/300/600
• Weight: 14.9g
• Size: 42 × 45.7 mm
