iFlight Beast H7 55A AIO Flight Controller 25.5 x 25.5
iFlight Beast H7 55A AIO 25.5 x 25.5
What if you could get the combined MCU speed and ESC power of a big stack, but carefully arranged on a 25x25 whop size board? That would be crazy, right? Well, we just did it....

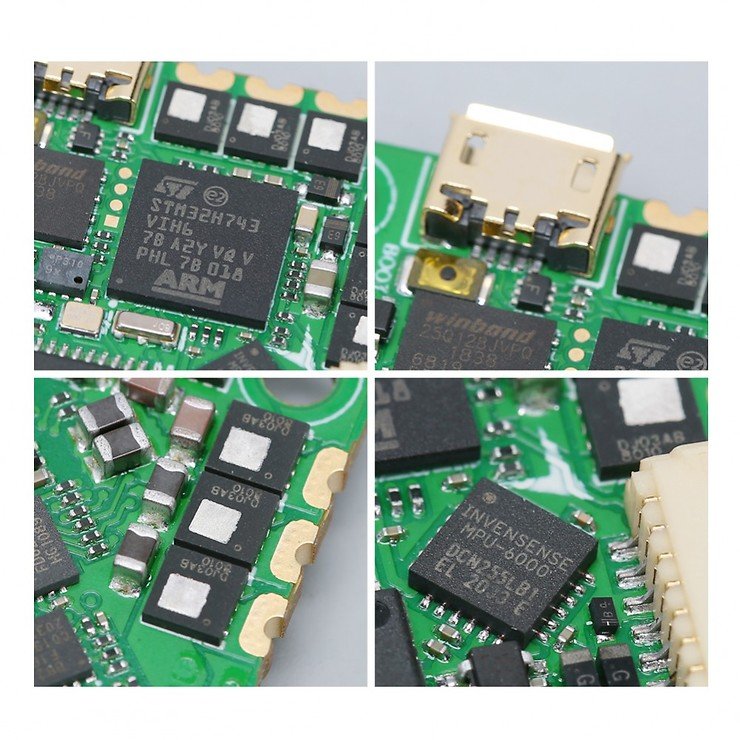

This is our new iFlight BEAST series AIO FCs for your ultimate build. A future proof all-in-one FC to speed up the game and make some more room for future flight firmware development like Betaflight, Emuflight etc. This could only be achieved by using BGA chipsets instead of ordinary QFP MCUs (with large dimensions) and ultra-strong mosfets for almost any setup. Solder on your motor wires and you're ready to go! DJI plug and play connectors and so many UARTs that most people wouldn't even use them all. Compatible with digital and analog FPV, onboard barometer for possible long range flights and much more. Unleash the beast!
Top Features:
Safety Notice:
The DJI Plug&Play connector does not have a voltage regulator (BEC) and is routed through VBAT. The Caddx Vista goes up to 26.4V (6S), the DJI Air Unit goes up to 17.6V (4S). Be careful not to plug the DJI Air Unit directly in when flying on 6S, as that will fry it! The BEC you need to add for your 6S build can be found here: https://shop.iflight-rc.com/index.php?route=product/product&product_id=747
Small 4S motors usually need an extra capacitor of at least 16V/220uF, for 6S you should use up to 35V or even 50V. Larger motors have larger current draw, higher voltage spikes, and more serious back EMF (motor braking, works like a generator). Make sure you add large enough or even larger low-ESR capacitors on the AIO battery pad or on your battery cable, the more aggressive the motors you fly. There are a selection of capacitors in the package, but it's never a bad idea to make sure you protect your board. Smaller boards have less capacity to cover with external capacitors, there's no way around it.
Technical Data FC
Specifications ESC
Contents
| Bestellnummer | IFL-C008959 |
|---|---|
| EAN | 4260691171809 |
| Hersteller | iFlight |
