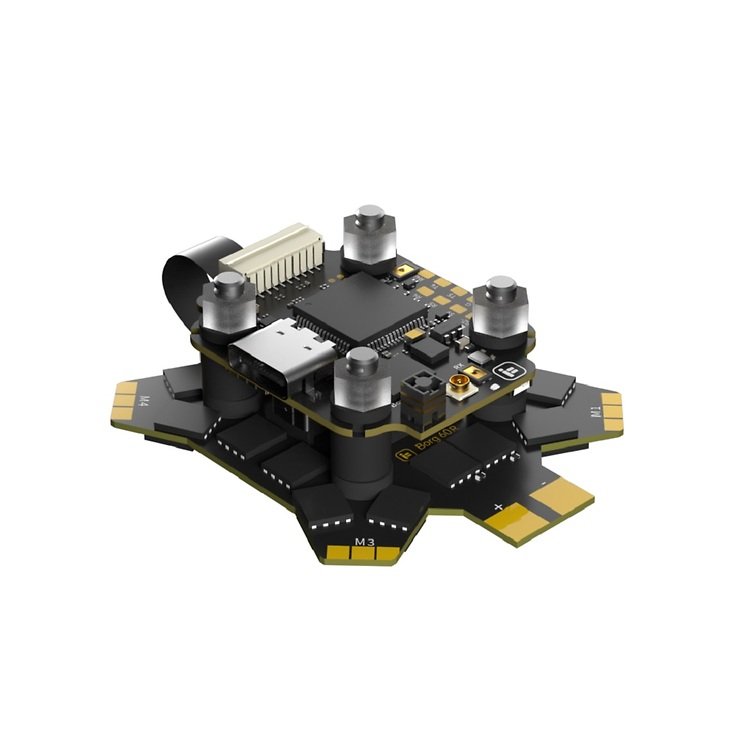

iFlight Borg 5S RX Stack (Borg 60R ESC）

iFlight Borg 5S RX Stack (Borg 60R ESC）

Product description

Experience with the iFlight Borg 5S RX Stack (consisting consisting of Flight Controller and ESC) the perfect Combination of Control, Performance and Reliability for your FPVRacingSetup. The Stack was especially for competitive FPVPilots developed, who no Compromises compromises.

The Borg 5S RX Flight Controller offers an integrated ExpressLRS 2.4GHz Receiver with fixed built-in Antenna for a stable Connection and lightning-fast Response times. For maximum Flexibility you can you can alternatively also external Receivers alternatively.

With Support for 4S to 8S LiHVBatteries, one integrated 12V BEC with Remote switching function for your VTXSystem and robust FPC and SH1.0Connectors, is this Controller ideal for modern RacingBuilds.

The Borg 60R ESC delivers with up to up to 60A Continuous current and 65A BurstPower (for 10 Seconds) also with most demanding Flights the necessary Power. Supported are all common Protocols such as DShot150/300/600, MultiShot and OneShot. Thanks to bidirectional DSHOT and Telemetry function you are you at all times via the State of your Setup in Picture.

Your Advantages at at a At a glance:

• Integrated ExpressLRS 2.4GHz Receiver with integrated Antenna
• Compatible with external Antennas and Receivers for individual Configurations
• Support for from 4S to 8S LiHVBatteries - full Flexibility with the Power supply
• Integrated 12V BEC with RemoteSwitch - ideal for VTXSystems
• Robust FPCConnections to ESCs and reliable SH1.0Connectors
• 60A ESC with up to up to 65A BurstCurrent for maximum Power
• Bidirectional DSHOT and Telemetry for modern FlightSetups
• Compact, lightweight and ideal for RacingFrames with 20x20 mm Mount

Specifications: - Flight Controller (Borg 5S RX FC):

• Input voltage: 4-8S LiHV
• MCU: AT32F435RGT7
• Gyro: ICM42688
• Barometer: not available
• OSDChip: AT7456E
• Blackbox: 16MB Flash
• UARTs: 4
• MotorOutputs: 4
• I2C: not supported
• Supported VTXProtocols: DJI MSP, SmartAudio, IRC Tramp, HDZero
• LEDController: yes
• BeeperPad: yes
• FirmwareTarget: IFLIGHT_BLITZ_ATF435 (Betaflight)
• Mounting pattern: 20 x 20 mm (Drill hole Ø 4 mm)
• Dimensions: 34 x 27 mm ±1 mm
• Weight: approx. 6,8 g ±1 g
• BEC: 5V 2,5A and 12V 2A (12V switchable via Remote)

Recommended UARTAssignment:

• UART 1: VTX (HD or Analog)
• UART 2: ESC-Telemetry
• UART 4: Integrated ELRSReceiver or SBUSInput
• UART 5: GPS or other Sensors

Technical data Data - ESC (Borg 60R ESC):

• Input voltage: 3-8S LiHV
• Max. Continuous current: 60A
• Max. Burst current: 65A (10 Seconds)
• MCU: STM32G071N
• Driver: FD6288
• Firmware: BL32 (32bit ESC)
• Firmware-Target: IFLIGHT_BLITZ_G3 32.9
• Current sensor: not present
• BEC: not present
• Telemetry: supported
• Bidirectional DSHOT: supported
• Supported Protocols: DShot150/300/600, MultiShot, OneShot
• Dimensions: 45 x 52 mm ±1 mm
• Mounting pattern: 20 x 20 mm (Drill hole Ø 4 mm)
• Weight approx. 14,5 g ±1 g
